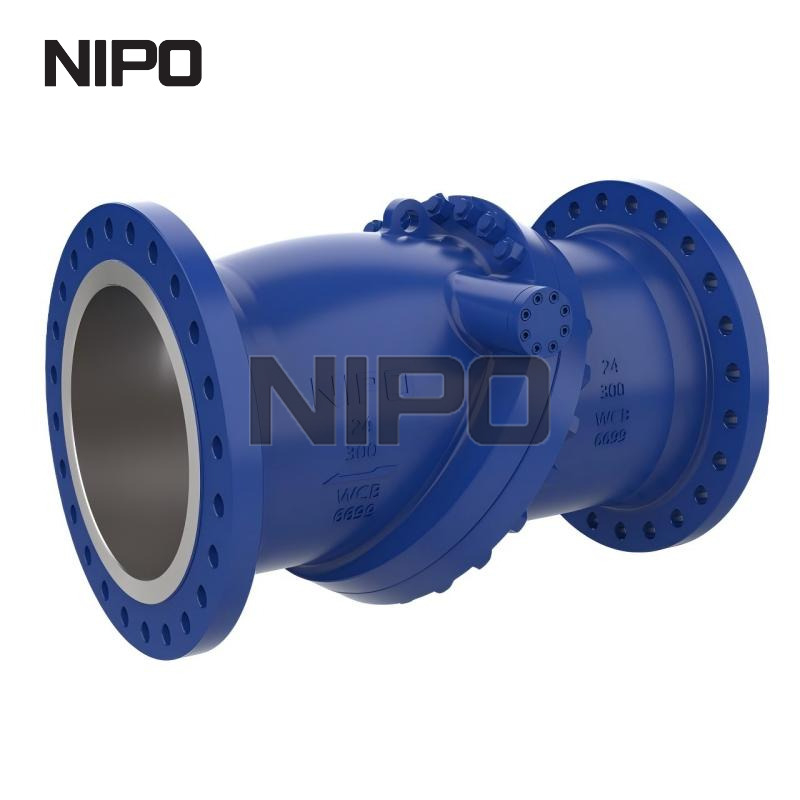

Double Flanged Type Tilting Disc Check Valve

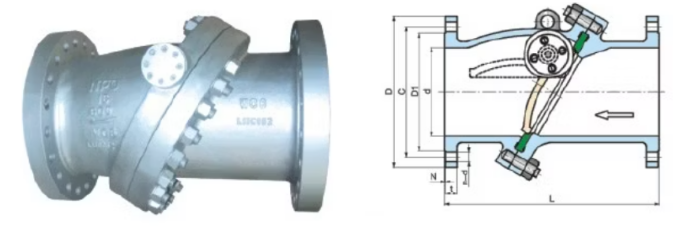

Flange Type  Tilting Disc Swing Check Valve:

Structural Feature

• Quick valve disc closedown,low water hammer pressure;
• Applicable for and easily installed for vertical or horizontal pipelines;
• Smooth flow passageway and small fluid resistance;
• Flexible action and good sealing performance;
• Narrow valve travel and small closedown impact;
• Integrated structure,simple and compact,in beautiful shape;
• Long service life and good reliability.

• Design and manufacture: API594,API 6D,JB/TB8937;
• Face to face and end to end: API594,API6D,DIN3202,JB/T8937;
• Pressure-temperature rating: ASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74;
• Inspection and test:  API598,JB/T9092;
• Pipe flange: JB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.

• Body material: carbon steel, stainless steel, alloy steel,bronze
• Nominal diameter:2"~24"(DN50~DN600)
• End Connection: RF,RTJ,BW
• Pressure range: Class150~ 2500(PN16~PN150)
• Working temperature:-196ºC~+560ºC
