The three eccentric metal-sealed butterfly valve series is our company's main product, widely used in metallurgy, light industry, power, petrochemical, gas and water pipelines and other fields.
The three eccentric butterfly valve has a bidirectional bubble-tight closing performance. This geometric shape ensures that the valve disc seal only comes into contact with the valve body seat at the closed position, thus avoiding friction or wear, and generating a torque that enables the elastic seal to have sufficient "welding" performance, ensuring uniform and consistent sealing contact.
Triple eccentric geometry
Eccentricity 1: The valve shaft is located behind the valve seat shaft, allowing the seal to completely and tightly surround and contact the entire valve seat.
Eccentricity 2: The centerline of the valve shaft deviates from the centerline of the pipeline and the valve, thus avoiding interference during valve opening and closing.
Eccentricity 3: The axis of the valve seat cone deviates from the centerline of the valve shaft, which eliminates friction during opening and closing and achieves a uniform and consistent compression seal effect around the entire valve seat.
Industrial Butterfly Valves Collection
Selecting the right flow control equipment is critical for operational efficiency in demanding environments. NIPO offers a comprehensive range of industrial butterfly valves. We engineer these products to meet the rigorous demands of modern piping systems. Whether managing high-pressure pipelines or standard fluid transfer, our collection provides exceptional durability. You can expect tight shut-off capabilities and seamless integration into your existing infrastructure.
Wafer Style Butterfly Valves
Our wafer-style models are designed to fit securely between two pipe flanges. This creates a lightweight and highly space-saving solution. The design is cost-effective for standard piping systems where installation space is limited. For extreme durability and zero leakage under harsh conditions, we recommend a wafer triple offset metal seated butterfly valve. It provides ultimate sealing performance while maintaining a compact footprint.

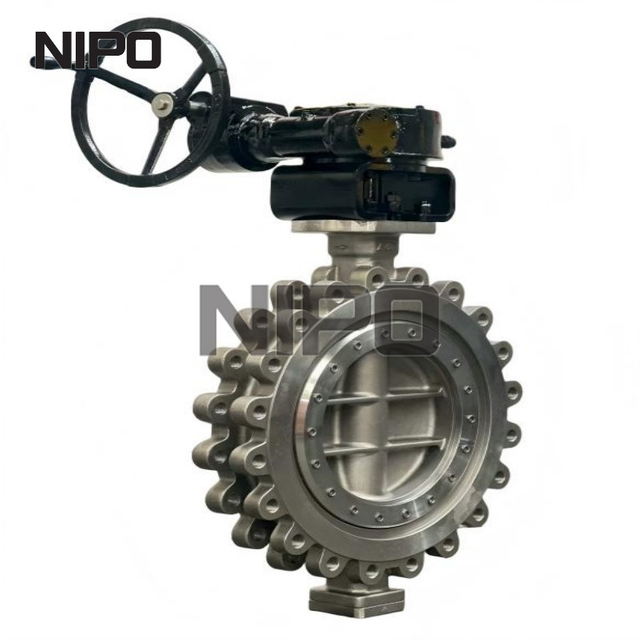

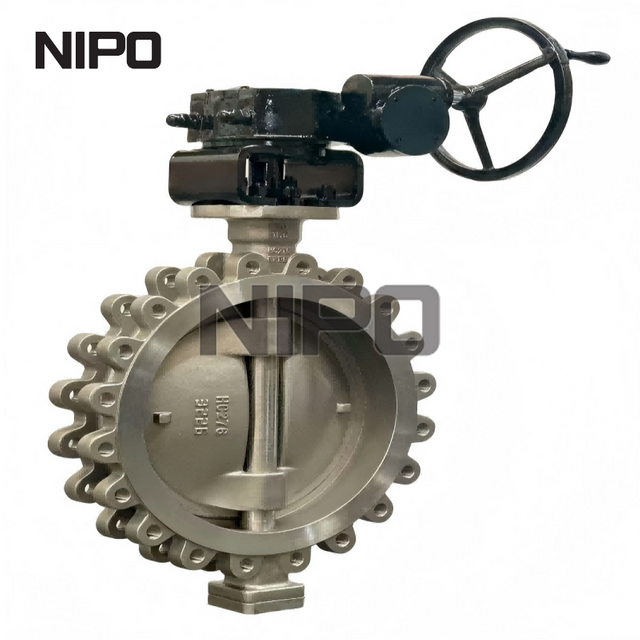

Lug Style Butterfly Valves
Lug-type models feature threaded inserts on the valve body. This allows them to be bolted directly to pipe flanges. Their robust construction makes them ideal for dead-end service. You can safely remove downstream piping without disrupting the upstream flow. By securely anchoring to the pipeline, these valves offer enhanced structural integrity for critical isolation tasks.
Flanged & Custom Butterfly Valves

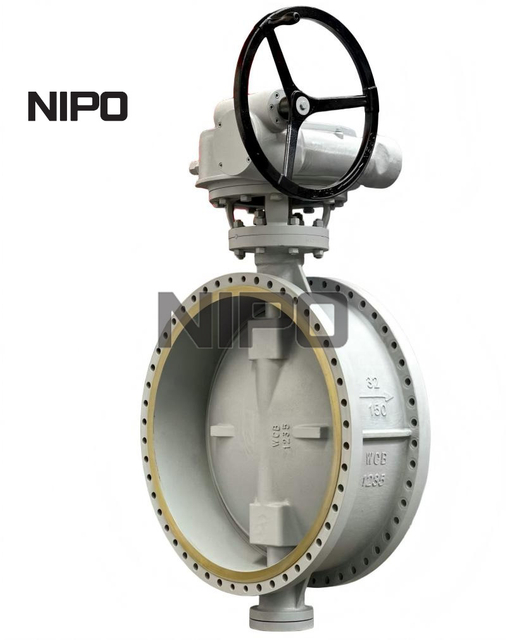

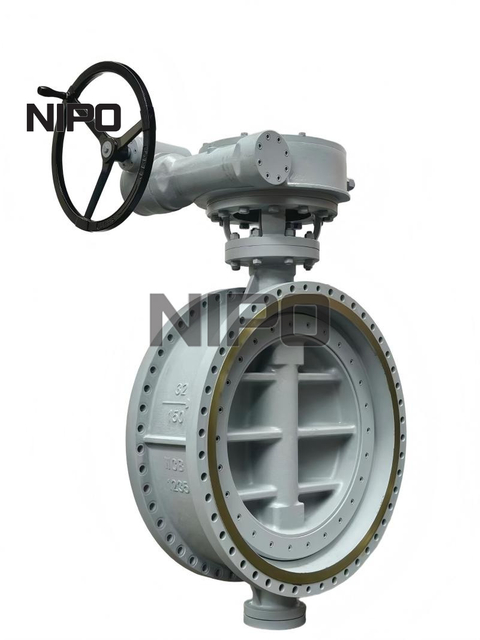

Double-flanged designs deliver unparalleled stability and secure connections for heavy-duty applications and large-diameter pipelines. NIPO also specializes in custom-engineered solutions tailored to your specific project requirements. You might need a standard configuration or a specialized gear flange industrial butterfly valve. Our engineering team can manufacture products based entirely on your exact drawings.
Why Choose NIPO as Your Butterfly Valve Manufacturer?
Finding a reliable B2B partner requires a commitment to quality, engineering excellence, and proven industry expertise. NIPO stands out from standard distributors. We offer direct-from-factory advantages and uncompromising manufacturing standards.
100% Pressure & Material Testing
Quality assurance is the cornerstone of our manufacturing process. Every unit undergoes strict 100% pressure testing and 100% material inspection before leaving our facility. We maintain a rigorous quality control system to ensure zero defects. Furthermore, we fully welcome third-party quality checking to give our clients complete peace of mind.
Non-Standard Customization & R&D
Industrial applications often require more than off-the-shelf solutions. NIPO boasts a dedicated R&D team with significant annual investment in equipment innovation. This allows us to offer extensive non-standard customization. We can produce highly specialized flow control products according to your exact drawings, dimensions, and technical specifications.
20 Years of Global Export Experience
With nearly 20 years of industry experience, we have built a strong reputation. We provide quick delivery times and reasonable pricing without sacrificing quality. As an export-oriented enterprise, 40% of our owned brands are shipped globally. This proves our capability to meet diverse international standards and complex logistical requirements.
Butterfly Valve Applications & Industries Served
Our industrial butterfly valves are engineered to handle a wide variety of media, temperatures, and pressures. These products are deeply integrated into some of the most demanding industrial sectors. We provide safe and efficient flow control where it matters most.
Petroleum, Energy & Chemical Sectors
Safety and reliability are non-negotiable in the oil, gas, and chemical processing industries. We manufacture explosion-proof and high-performance models designed to handle volatile media safely. Utilizing a high performance butterfly valve ensures tight shut-off. It also guarantees a long service life in corrosive and high-stress chemical environments.
Water Supply & Ship Power

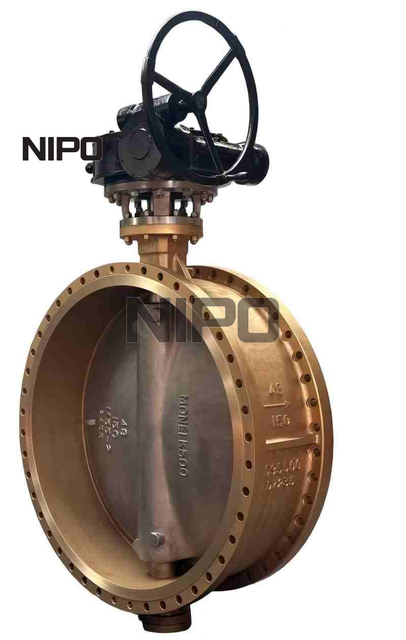

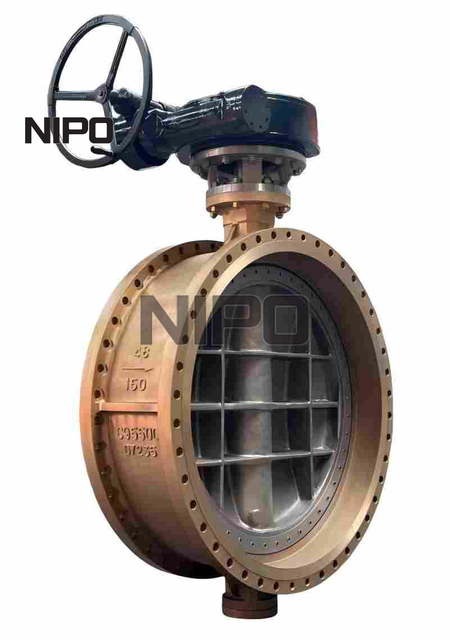

Municipal water treatment, desalination plants, and marine applications require equipment that withstands corrosive saltwater. Our corrosion-resistant models are perfectly suited for these harsh environments. For instance, an aluminum bronze triple offset flange butterfly valve offers exceptional resistance to seawater corrosion. This makes it a top choice for ship power systems and offshore platforms.
Technical Guide: Selecting the Right Butterfly Valve
Choosing the correct configuration is essential for maximizing performance and minimizing maintenance costs. Procurement engineers and project managers must carefully evaluate working principles. It is crucial to match material compositions to your specific application needs.
Concentric vs. Eccentric Designs
Understanding the difference between concentric and eccentric designs is the first step in selection. Concentric models are typically used for low-pressure, general-purpose applications. Meanwhile, eccentric designs are engineered for severe industrial conditions.
| Design Type | Working Principle | Best Suited For |
| Concentric | The stem is centered in the middle of the valve disc and the pipe bore. | Low-pressure water, air, and general utility services. |
| Double Eccentric | The stem is offset from the center of the disc and the center of the pipe. | Higher pressures and temperatures, reducing seat wear. |
| Triple Eccentric | Features a third offset in the seating cone angle for zero friction. | High-temperature, severe industrial, and zero-leakage applications. |
Material Selection for Optimal Performance
The longevity of your equipment heavily depends on selecting the right materials. You must choose the correct body, disc, and seat based on the media and operating environment.
| Component | Material Option | Best Suited For |
| Body & Disc | Cast Iron | Cost-effective for standard water applications. |
| Body & Disc | Carbon Steel | High-strength requirements and elevated pressures. |
| Body & Disc | Stainless Steel | Corrosive chemical and food-grade environments. |
| Seat | EPDM | Water and HVAC systems. |
| Seat | PTFE | Aggressive media requiring excellent chemical resistance. |
| Seat | Metal | Extreme high-temperature applications where soft seats fail. |
Partner with a Trusted Butterfly Valve Manufacturer
Whether upgrading a municipal water system or outfitting a chemical plant, NIPO is the butterfly valve manufacturer you can trust. We invite B2B buyers, distributors, and project managers to reach out to our engineering team. Contact us today to request a comprehensive quote or submit your custom drawings for review. You can also schedule a factory audit to see our manufacturing excellence firsthand.
Frequently Asked Questions About Butterfly Valves
What is the difference between lug and wafer style butterfly valves?
Wafer models are sandwiched between two flanges and are ideal for standard flow control. Lug versions feature threaded inserts that allow them to be bolted directly to pipe flanges. This makes them highly suitable for dead-end service.
Can NIPO manufacture custom butterfly valves based on our drawings?
Yes, we specialize in non-standard customization. Our dedicated R&D team can manufacture products exactly to your provided drawings, dimensions, and technical specifications.
How do you ensure the quality and reliability of your products?
We maintain a strict quality control system at our facility. This includes 100% pressure testing and 100% material inspection for every unit. We also fully welcome third-party quality checking prior to shipment.
What industries are your industrial butterfly valves best suited for?
Our products are heavily utilized in the petroleum, water supply, ship power, energy, and chemical sectors. They are chosen for their robust construction and reliable sealing capabilities.
