NIPO

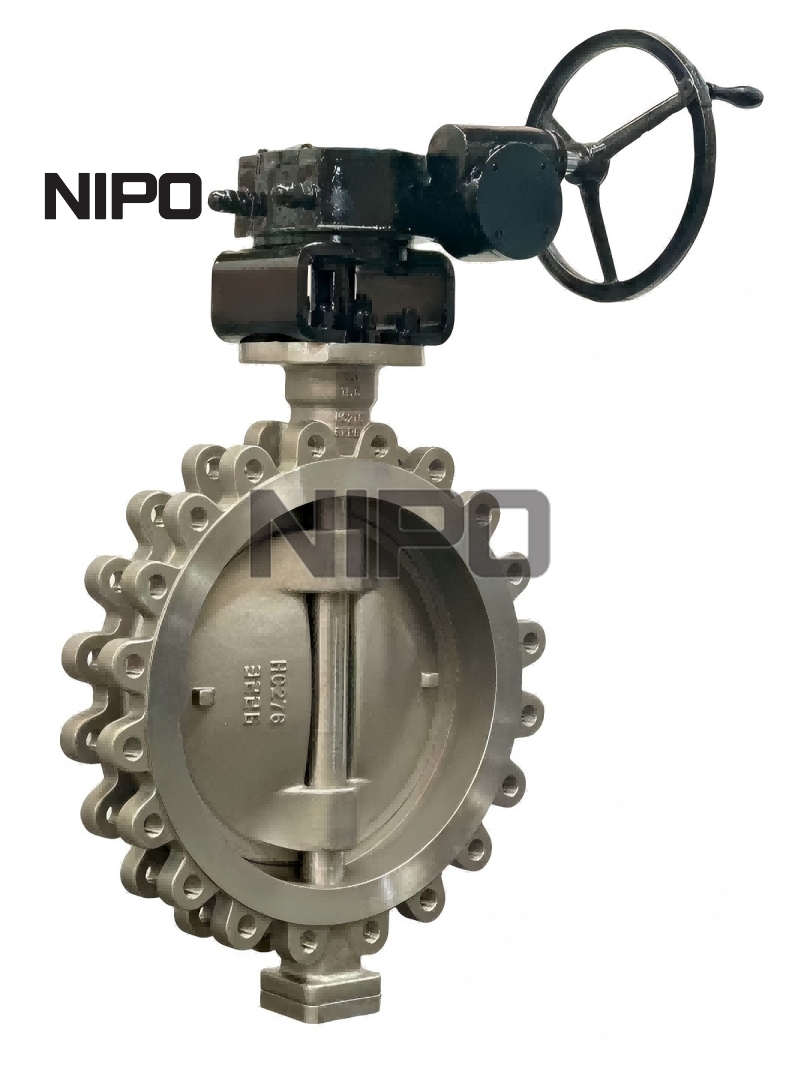

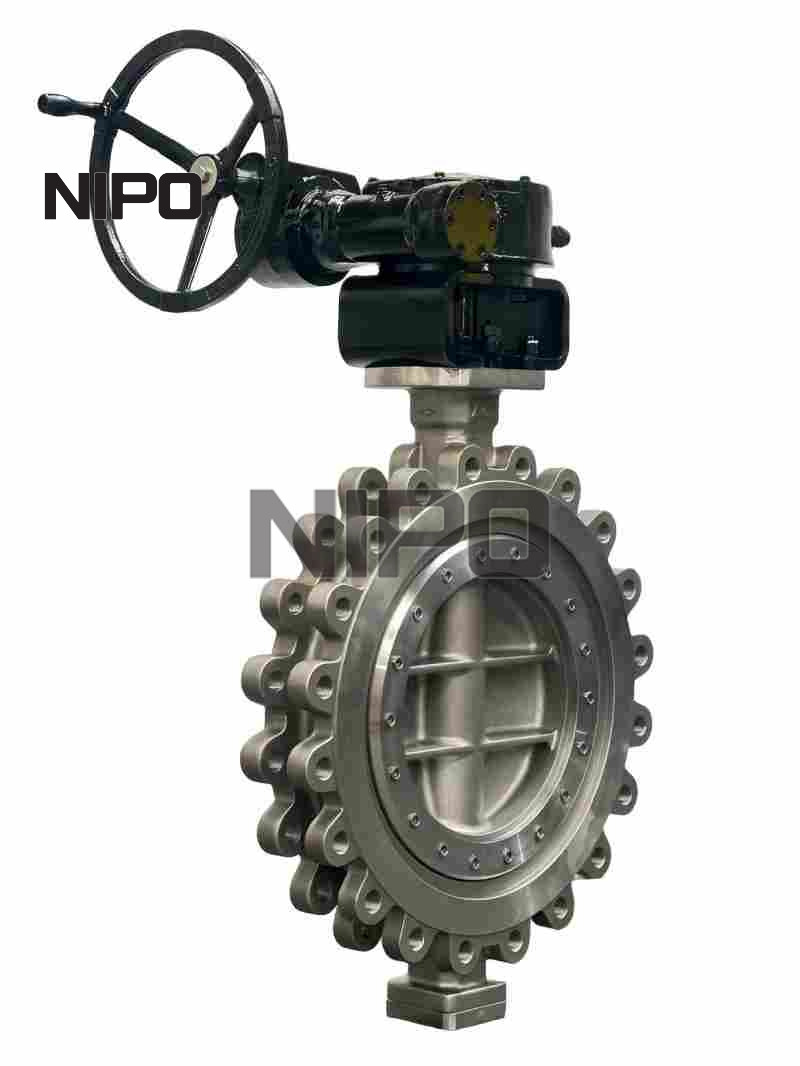

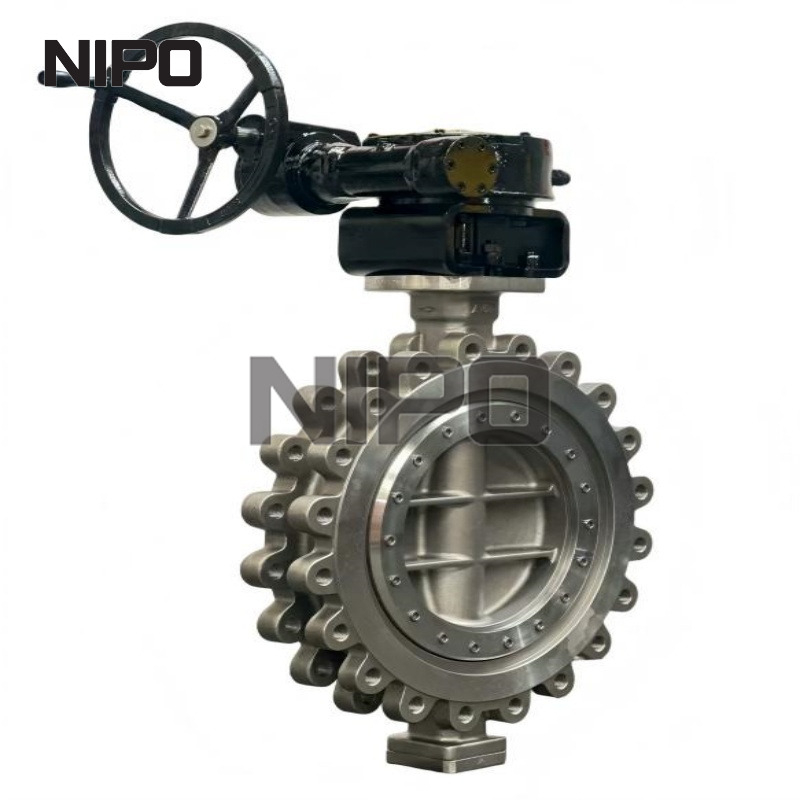

Triple Offset Lug Butterfly Valve
Applicable Standards:
Butterfly valve design according to API609, ASME B16.34
Face to face ASME B16.10/API609
End Flanges ASME B16.5/ASME B16.47
Butt Welding ends ASME B16.25
Inspection and test API 598
Material: WCB/CF8/CF8M/CF3/CF3M
Size Range: 2"~60"
Pressure Rating: ASME CL, 150, 300, 600
Temperature Range: -196°C~600°C
Design Description:
- Low friction between seat and disc of valve
- “Zero Leakage” Sealing Design
- Standard Laminated Resilient Disc Seal to 800°F (427°C)
- One Piece Shaft
- Low torque enables the compact actuator and a long cycle life
- Blow-out proof shaft
- Optional stem extension
- Optional locking device
Brand | NIPO |
Structure | Butterfly |
Valve Material | NIPO provide cast steel, stainless steel, special alloy, CI, DI etc |
Valve Type | NIPO Produce Butterfly Valve |
Valve Test | 100% quantity tested before delivery |
Valve Guarantee | 18 months after shipments and 12 months after installed |
Valve Structure | Lug Butterfly Valve |
Valve Delivery | 15 - 30 days |
Valve Sample | Sample Available by NIPO Valve |
Valve Color | Customer request |
Valve Packing | Plywood Case for Butterfly Valve |
MOQ | 1 Set |
Valve Certificate | API6D/CE/ISO9001/ISO14001 |
Place of Origin | Zhejiang, China (Mainland) |
Delivery Detail: | Shipped in 15-30 days after payment |
Port | Shanghai Or Ningbo |
Payment Terms | L/C,D/A,D/P,T/T, Western Union |
NIPO Triple Offset Lug Butterfly valve is used to prevent galling and scratches between the metal seat and the metal disc due to its unique design. The only time where the seal comes into contact with the seat is at the point of complete closure. Triple offset valves are generally used in applications which require bi-directional tight shut-off in oil and gas, LNG/NPG terminal and tanks, chemical factories, and shipbuilding. They are also used for dirty/heavy oil to prevent extrusion.
