In addition to the functions of a general check valve, the axial flow check valve is also designed with shock-absorbing springs, which have the effects of noise reduction and shock absorption. It is convenient for on-site maintenance by users. The unique axial flow structure features low flow resistance, large flow rate and small external dimensions. It is the preferred valve for domestic and international oil and gas gathering and transportation pipeline systems, especially for the outlet of oil transfer pumps. It is applicable to pipeline systems for oil, gas, water slurry, etc., to prevent the backflow of the medium.
1. Single-unit structure, light weight, good rigidity, and easy to maintain.
2. The thrust of the spring enables the valve disc to handle the closed position even when used without the action of medium pressure.
3. The good support method ensures that the valve disc and seat can be well centered no matter what installation position the valve is in, so the valve can be installed at any Angle
4. The combination of the streamlined design of the valve sleeve shape and the streamlined design of the body cavity forms the streamlined flow passage of the axial flow check valve. Precise calculation and design ensure that the flow passage area is sufficient and consistent, with low pressure loss, stable flow state and no cavitation. When the medium flows, the valve stem generates negative pressure and spring thrust to return to its seat, and there is no direct impact of the medium on the back of the valve stem. Therefore, the axial flow check valve is a low-noise valve.
High-Performance Axial Flow Check Valves
An axial flow check valve is a critical component designed to prevent reverse flow. It protects essential process equipment across demanding industrial environments. Often called an axial nozzle check valve, this advanced design features a highly streamlined flow path. This structure significantly minimizes pressure drop. By integrating a low-pressure drop axial flow check valve into your system, you gain immediate flow control. The internal spring-assisted disc reacts instantly to flow changes. This rapid response effectively eliminates the damaging effects of water hammer. Ultimately, these valves ensure long-term reliability and operational safety in high-capacity pipelines.
Types of Axial Nozzle Check Valves We Manufacture
At Zhejiang Naibang Valves Co., Ltd., we manufacture a comprehensive range of axial nozzle check valves. Our solutions cater to diverse industrial requirements. We balance high-quality standard models with bespoke engineering solutions. This ensures every pipeline system receives the exact flow control mechanism it needs.
| Valve Category | Key Characteristics | Best Suited For |
| Standard Non-Slam | Pre-engineered dimensions, standard pressure ratings, flange or welding ends | General industrial pipelines, standard replacements, and municipal water systems |
| Custom Engineered | Manufactured to client drawings, specialized alloys, unique dimensions | Complex projects, non-standard infrastructure, and severe service environments |
Standard Non-Slam Axial Flow Check Valves
Our standard product line is engineered for general industrial applications requiring robust backflow prevention. These valves are available in multiple connection types. Options include standard flange connections and welding ends to suit various piping infrastructures. With a wide range of pressure ratings, our standard industrial check valves provide dependable performance. They also offer easy installation and minimal maintenance for everyday operational demands.
Custom Axial Flow Check Valves
Complex projects often require specialized solutions. Naibang Valve excels in non-standard customization to meet these demands. Our experienced engineering team manufactures custom axial flow check valves strictly according to client drawings. We also accommodate unique project specifications. Whether you need specific face-to-face dimensions or specialized alloy materials, we deliver tailored manufacturing. This ensures our valves integrate seamlessly into your existing infrastructure.
Technical Specifications & Industry Standards
We ensure every valve we produce is backed by rigorous technical specifications and recognized industry standards. Our commitment to engineering excellence guarantees reliable performance. You can trust our products to operate safely, even in the most severe high-pressure environments.
Design Features & Venturi Effect
The internal mechanics of our valves are optimized for superior fluid dynamics. Utilizing the venturi effect, the valve body accelerates flow while maintaining a remarkably low pressure drop. The short stroke of the disc ensures rapid closure. Combined with customizable spring options, it provides a non-slam shutoff the moment forward flow ceases. This dynamic response in our non-slam type axial flow check valve prevents reverse velocity buildup. It effectively protects pumps and compressors from mechanical shock.
Manufacturing & Testing Standards

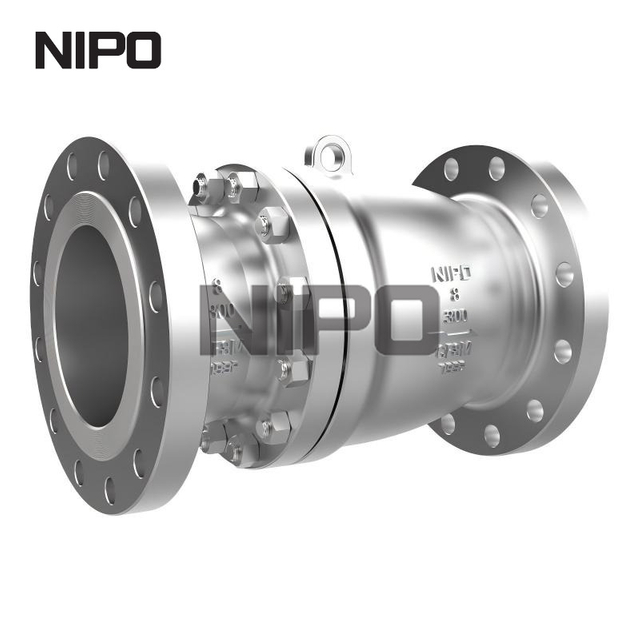

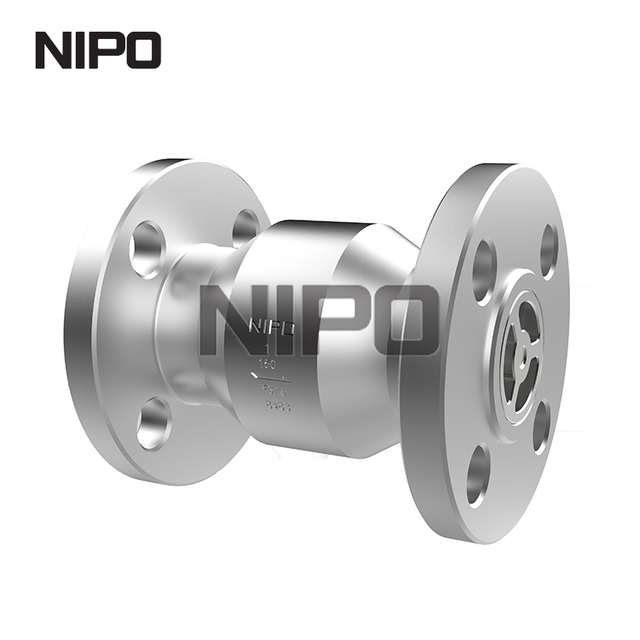

Quality and compliance are at the core of our production process. We meticulously manufacture and test our valves to meet rigorous international standards. These include API 6D, API 598, and ASME B16.34. Adhering to these strict guidelines ensures exceptional structural integrity. For instance, our axial flow check valve casting body undergoes thorough inspection to guarantee durability. Every unit delivers precise sealing and reliable performance under extreme pressure and temperature fluctuations.
Industrial Applications for Non-Slam Check Valves
The robust construction and rapid-response capabilities of our valves make them indispensable across heavy industries. We supply high-performance flow control solutions tailored to the specific demands of critical sectors. In ship power cabins, our valves ensure safe and efficient fluid management within confined, high-vibration marine environments.

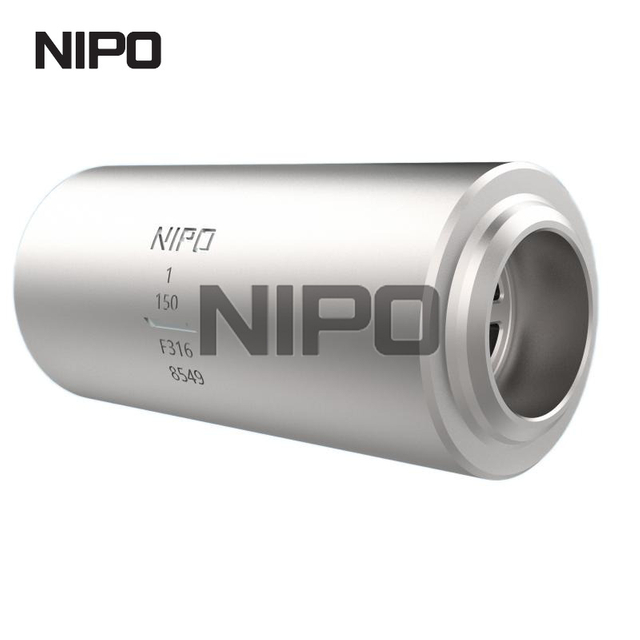

For the oil and gas industry, protecting pumps and preventing backflow is paramount. We support extraction, refining, and distribution networks using robust butt welding ends axial flow check valves. Additionally, our products serve municipal water supply networks by eliminating water hammer and pressure surges in transmission lines. We also provide reliable isolation for power generation plants and handle aggressive fluids safely in chemical processing facilities.
Why Source Axial Check Valves from Naibang Valve?
Choosing the right manufacturing partner is as critical as selecting the right valve. Zhejiang Naibang Valves Co., Ltd. (NIPO) leverages unique business advantages. We provide unparalleled value, reliability, and service to our global clientele.
100% Pressure Testing & Material Inspection
We operate under a strict quality control system to guarantee flawless performance. Every single valve undergoes 100% pressure testing and 100% material inspection before leaving our facility. To provide complete peace of mind to our buyers, we openly welcome third-party quality checking. This transparency ensures our products meet your exact contractual and safety requirements.
Nearly 20 Years of Manufacturing Excellence
With nearly two decades of industry experience, our team of 70 elites drives continuous innovation. We achieve this through strong R&D and dedicated equipment investment. We pride ourselves on offering quick delivery times and reasonable pricing without compromising quality. As an export-oriented enterprise, 40% of our owned brands are exported globally. This demonstrates our capacity to meet diverse international market demands effectively.
Frequently Asked Questions (FAQ)
Below are common questions we receive regarding our non-slam flow control solutions.
- What is a non-slam axial flow check valve?
It is a specialized valve designed with a streamlined flow path and a spring-assisted closure mechanism. We engineer these valves to prevent reverse flow in pipelines while eliminating the damaging effects of water hammer. - How does an axial nozzle check valve prevent water hammer?
Our valve features a short stroke and a dynamic spring mechanism. This design allows the disc to close rapidly before reverse flow builds momentum. This immediate response prevents the hydraulic shock commonly known as water hammer. - Can axial flow check valves be installed vertically?
Yes, these valves are highly versatile. You can typically install them in both horizontal and vertical pipeline orientations. The internal spring ensures proper closure regardless of gravity. - Do you offer custom manufacturing for axial check valves?
Absolutely. Naibang Valve specializes in non-standard customization. We can manufacture these valves exactly according to your specific technical drawings and unique project requirements.
