NIPO

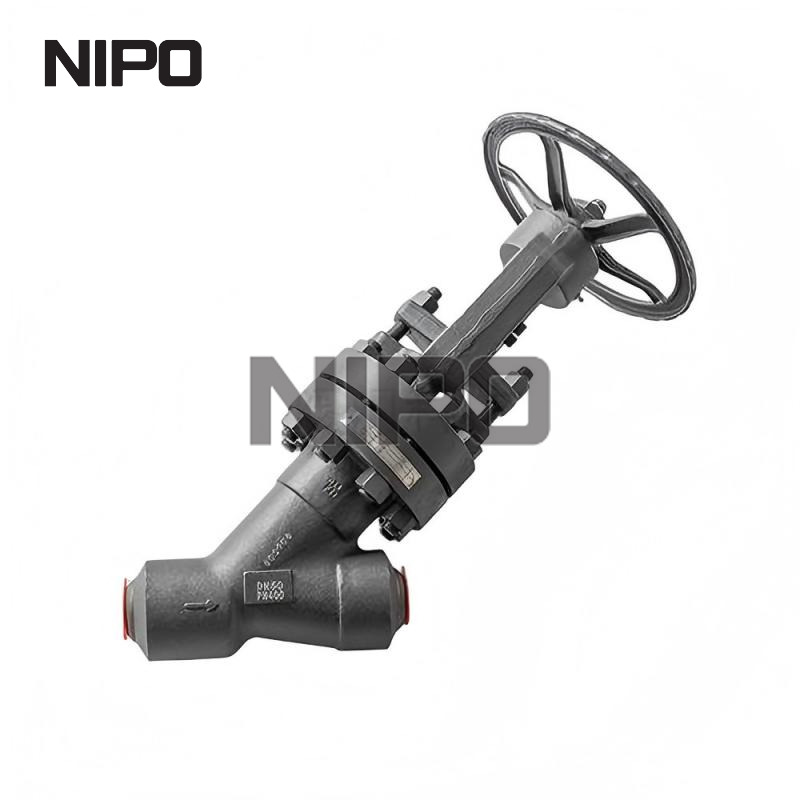

Forged Y Pattern Globe Valve

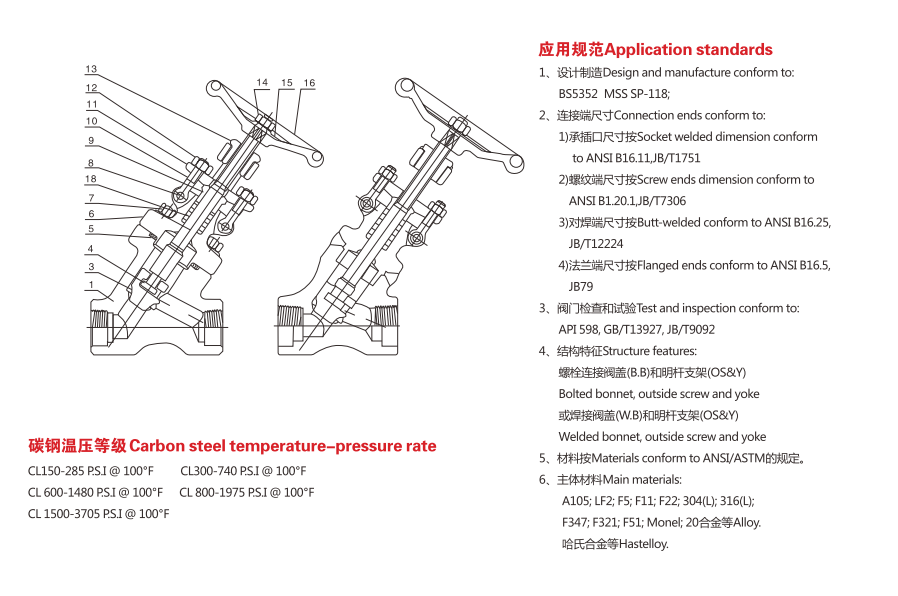

Applicable Standards:
Gate valve, API602
Steel Valves, ASME B16.34
Face to face ASME B16.10/MFG’S STANDARD
Socket Welded ASME B16.11
Screw Threaded AEME B1.20.1/BS 21
End Flanges ASME B16.5
Butt welding ends ASME B36.10M
Inspection and test API 598

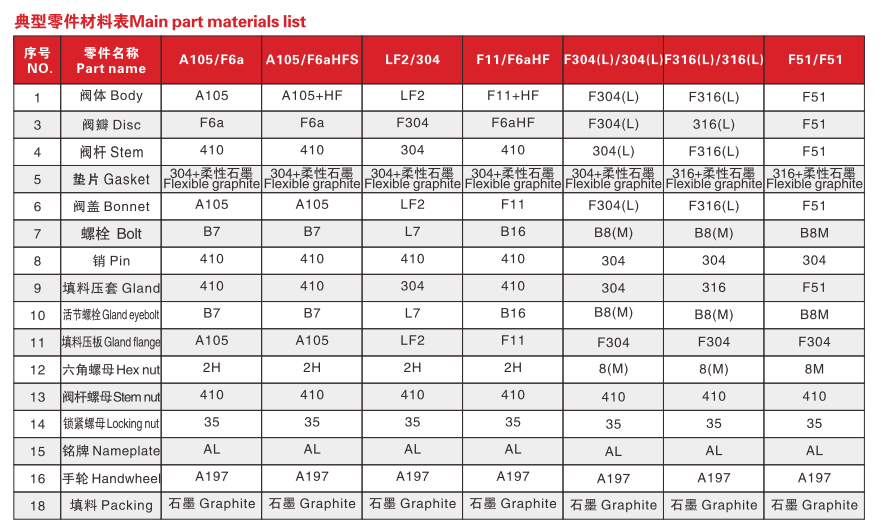

Material: Forged Steel (F304/F316)
Size Range: 1/2"~2"
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -196°C~600°C
Y-type globe valves are designed for applications that require precise flow control and shut-off capabilities in pipelines and process systems. These valves are named for their distinctive Y-shaped body design, which allows for smooth flow and reduced pressure drop compared to traditional globe valves.
The Y-type globe valve features a globe-shaped disc that moves perpendicular to the flow direction to regulate the flow of fluid. The design of the valve body and seat ensures a tight seal when the valve is closed, preventing leakage and ensuring reliable performance in high-pressure and high-temperature environments.
