NIPO

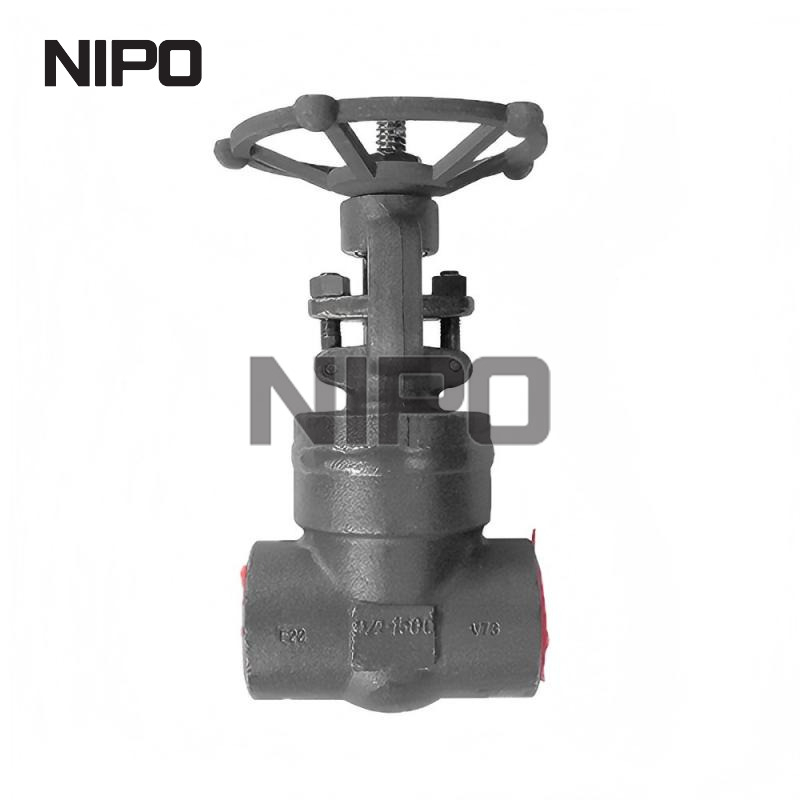

Middle Welded Gate Valve Industrial Valve Forged Steel Gate Valve for WOG
Applicable Standards:
Gate valve, API602
Steel Valves, ASME B16.34
Face to face ASME B16.10/MFG’S STANDARD
Socket Welded ASME B16.11
Screw Threaded AEME B1.20.1/BS 21
End Flanges ASME B16.5
Butt welding ends ASME B36.10M
Inspection and test API 598

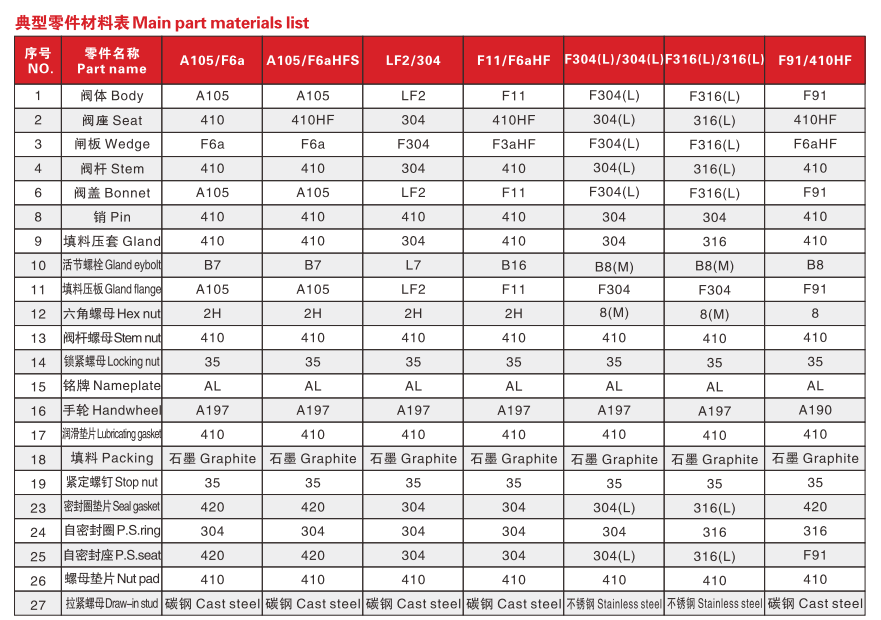

Material: A105N
Size Range: 1/2"~2"
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -196°C~600°C
Design Description: Butt Welded Ends

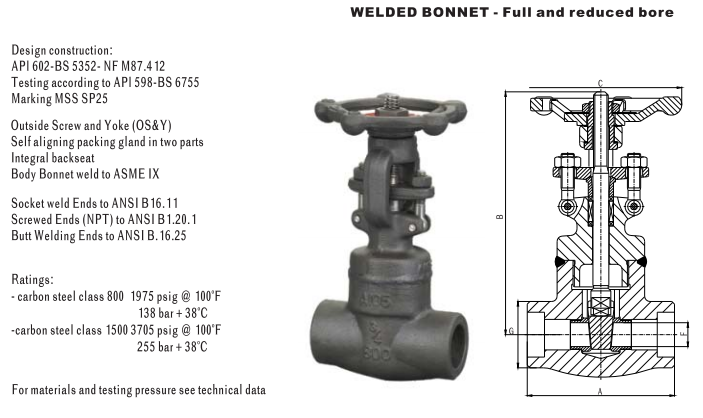

Forged steel gate valves are designed for high pressure and high temperature applications in industries such as oil and gas, petrochemical, power generation, and refining. These valves are constructed from high-quality forged steel materials, such as carbon steel, stainless steel, or alloy steel, to ensure durability and reliability in demanding environments.
The design of forged steel gate valves features a rising stem and non-rising handwheel for easy operation and visual indication of the valve position. The solid wedge gate provides tight shut-off and minimal pressure drop, making these valves suitable for throttling and isolation applications.
Forged steel gate valves are available in various sizes, pressure ratings, and end connections to meet specific requirements. They are commonly used in pipelines, process systems, and equipment where high pressure and temperature conditions are present.
