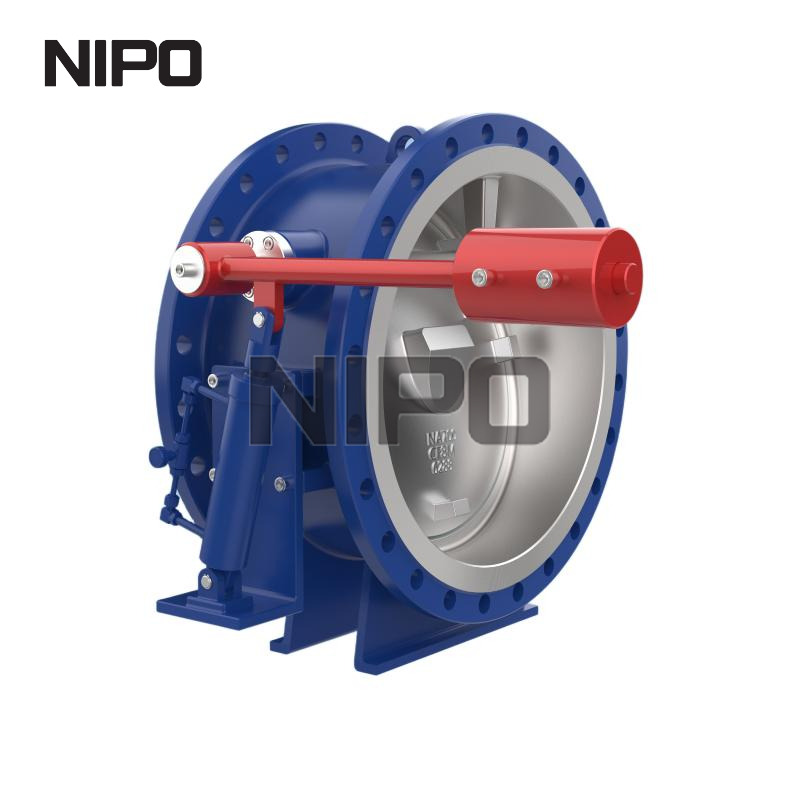

As a premier manufacturer and global supplier of advanced fluid control solutions, we present the Non-slam Tilting Check Valve (Short Series). Engineered specifically for critical piping infrastructure, this highly specialized valve delivers exceptional backflow prevention while entirely neutralizing the destructive forces of water hammer. It is the definitive choice for engineers seeking reliability, spatial efficiency, and long-term operational stability in demanding environments.
Advanced tilting disc and ball mechanisms ensure whisper-quiet, non-slam operation.
Ultra-compact short series design perfectly accommodates severely restricted installation spaces.
Heavy-duty construction tailored for high-demand municipal and industrial pipeline networks.
Direct-from-manufacturer precision ensures uncompromising quality for large-scale project supply.
The non-slam tilting check valve represents a pinnacle in fluid control engineering, meticulously designed to prevent backflow in complex piping infrastructures. Unlike traditional swing check valves that generate a jarring, metallic slam when flow direction abruptly changes, this advanced unit utilizes a precision-machined tilting disc mechanism to govern fluid dynamics with absolute finesse. When you interact with this valve, the robust heft of the ductile iron or stainless steel body immediately communicates its industrial-grade durability, while the smooth, flawless finish of the interior epoxy coating provides a tactile assurance of its corrosion resistance. During active operation, the fluid glides across the hydrodynamic disc, resulting in a remarkably quiet, vibration-free performance that entirely eliminates the harsh acoustic shockwaves associated with water hammer. You will not hear the destructive banging or feel the violent shuddering through the concrete floors of your pumping station. This smooth, controlled closure is not merely an acoustic refinement; it is a critical mechanical safeguard that protects expensive centrifugal pumps, delicate instrumentation, and extensive pipe networks from catastrophic pressure surges. By integrating this masterfully crafted valve into your infrastructure, you ensure seamless flow transitions, significantly reducing mechanical stress and extending the operational lifespan of your entire fluid management system.
Selecting the correct fluid control components requires precise technical data to ensure flawless integration into your existing infrastructure. Our non-slam tilting check valve is manufactured to exacting tolerances, meeting rigorous international standards for safety and performance. The short series configuration is specifically optimized for environments where spatial footprint is at a premium, without compromising on pressure handling or flow capacity. Below is the comprehensive technical specification matrix detailing the exact dimensional, material, and operational parameters of this valve series. These specifications guarantee that every unit delivered aligns perfectly with your most demanding project requirements.

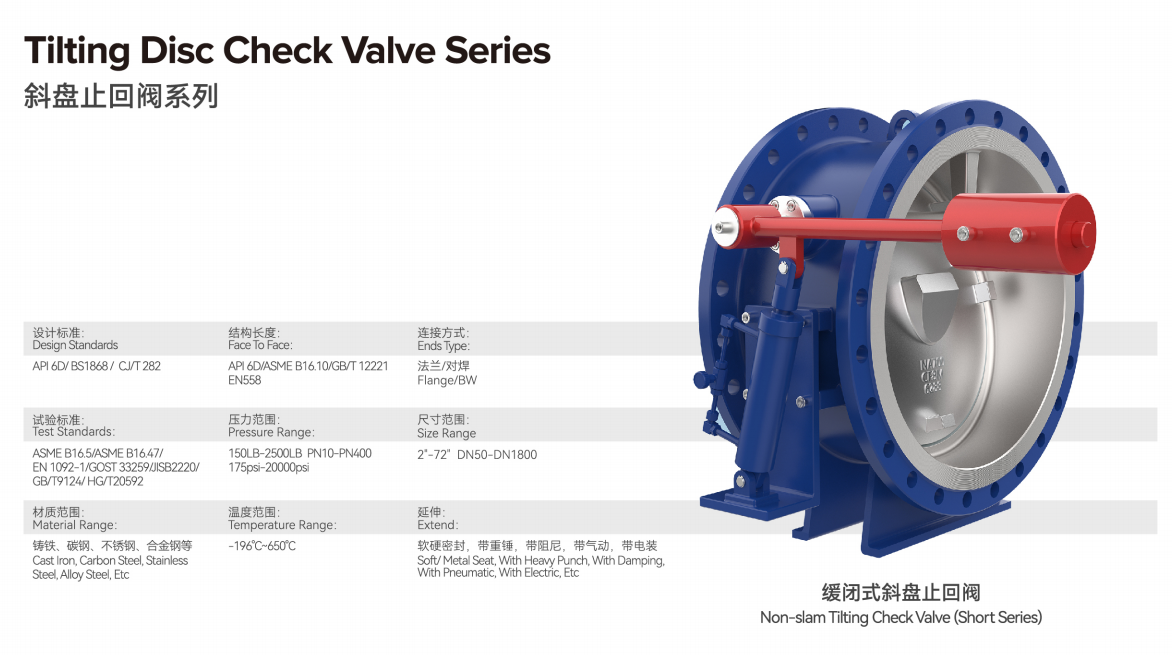

Product Name | Non-slam Tilting Check Valve (short Series) |
|---|---|
Valve Type | Tilting Disc Check Valve |
Core Mechanism | Tilting disc or ball mechanism |
Primary Function | Backflow prevention, Non-slam operation, Water hammer reduction |
Size Range | 2" to 60" / DN50 to DN1500 |
Pressure Ratings | ANSI Classes 125, 150, 250 / API / ASME |
Body Materials | Carbon steel, Ductile iron, Stainless steel, Bronze |
Seat Materials | Metal-to-metal or Resilient seated (EPDM/Viton) |
Surface Treatment | Interior epoxy coating |
Target Applications | Water treatment plants, wastewater systems, industrial applications |
Engineered for maximum reliability and operational efficiency, this tilting check valve incorporates several advanced design elements that set it distinctly apart from conventional backflow prevention devices. The engineering focus is entirely on optimizing fluid dynamics while minimizing mechanical wear, ensuring your systems run continuously without unexpected interventions or costly downtime.
Hydrodynamic Disc Contours: The internal disc is sculpted to minimize flow resistance, maintaining high fluid velocity without inducing damaging turbulence or cavitation.
Accelerated Closure Response: The eccentric pivot placement ensures the disc travels a fraction of the distance of standard valves, sealing the pipeline milliseconds before reverse flow initiates.
Acoustic Dampening: By eliminating the mechanical slam, the valve drastically reduces ambient noise levels in pumping stations, creating a safer and more compliant working environment.
Corrosion-Resistant Architecture: Heavy-duty interior epoxy coatings provide an impenetrable barrier against aggressive fluids, extending the lifecycle in harsh wastewater applications.
Frictionless Seating: The precision-lapped metal or resilient seating surfaces guarantee a drop-tight seal, preventing fluid loss and maintaining absolute system pressure integrity.
The most devastating force in any high-capacity piping network is the sudden shockwave generated by fluid reversal, commonly known as water hammer. This non-slam tilting check valve is specifically engineered to neutralize this threat completely. By utilizing an eccentrically pivoted disc with a remarkably short stroke, the mechanism responds instantaneously to decelerating flow, protecting your entire investment.
Instantaneous Sealing: The valve disc reaches the closed position before the fluid can reverse its momentum, cutting off the destructive shockwave at its very source.
Pump Protection: Eliminating pressure spikes safeguards expensive centrifugal and positive displacement pumps from cracked casings, blown seals, and shattered impellers.
Vibration Eradication: The smooth transition prevents the violent pipe shaking that can loosen flange connections, damage gaskets, and compromise structural supports.
Silent Operation: The complete absence of metal-to-metal slamming creates a whisper-quiet operational profile, essential for facilities located near residential or noise-sensitive zones.
Energy consumption is a primary concern for any large-scale fluid handling operation. Pumping fluids through restrictive valves translates directly to higher electricity costs and reduced system efficiency. This valve features an aerodynamically optimized internal profile that presents minimal obstruction to the flow path when fully open, resulting in an exceptionally high Cv (flow coefficient) value.
Streamlined Fluid Pathway: The internal geometry guides water smoothly around the disc, virtually eliminating energy-sapping eddies and flow turbulence.
Reduced Pumping Costs: The ultra-low pressure drop means your pumps do not have to work as hard to maintain system pressure, yielding substantial long-term energy savings.
Stable Dynamic Performance: Even in fluctuating or pulsating flow conditions, the disc remains perfectly stable without fluttering, preventing premature wear on the pivot pins.
Maximum Throughput: The unobstructed cross-sectional area ensures that your pipelines operate at their maximum designed capacity without bottlenecking at the check valve station.
Industrial environments are unforgiving, exposing equipment to abrasive particulates, corrosive chemicals, and extreme mechanical stress. To combat these harsh elements, this tilting check valve is constructed from a curated selection of premium-grade materials. The tactile solidity of the heavy-wall casting reflects an uncompromising approach to manufacturing longevity and structural integrity.
Versatile Body Castings: Available in rugged carbon steel, ductile iron for superior tensile strength, or high-grade stainless steel and bronze for ultimate corrosion resistance.
Advanced Seating Options: Choose between precision-machined metal-to-metal seats for high-temperature applications or resilient EPDM/Viton seals for absolute zero-leakage performance.
Protective Epoxy Armor: A thick, factory-applied interior fusion-bonded epoxy coating shields the base metal from oxidation, chemical attack, and abrasive wear.
Wear-Resistant Pivot Mechanisms: The hinge pins and bushings are crafted from hardened alloys, ensuring smooth articulation over hundreds of thousands of cycles without galling or binding.
Modern engineering projects frequently face severe spatial constraints, requiring high-performance components to fit into increasingly tight mechanical rooms, underground vaults, or retrofitted facilities. The "Short Series" designation of this tilting check valve addresses this challenge directly. Its highly compressed face-to-face dimension provides a powerful, space-saving solution for complex piping layouts.
Minimized Footprint: The ultra-short flange-to-flange distance allows installation in confined spaces where standard swing check valves simply cannot physically fit.
Reduced Structural Load: The compact design significantly lowers the overall weight of the valve, reducing the stress on pipe supports and simplifying structural engineering requirements.
Streamlined Installation: Lighter weight and smaller dimensions mean easier rigging, faster alignment, and significantly reduced labor hours during the installation phase.
Retrofit Ready: The short profile makes it an ideal upgrade for older facilities, allowing engineers to replace outdated, bulky valves without the need to reconfigure existing pipework.
Compliance and safety are non-negotiable in municipal and industrial infrastructure. This valve series is meticulously engineered, tested, and certified to meet the most stringent global industry standards. From the foundry to final assembly, every single unit undergoes rigorous quality assurance protocols to guarantee flawless, reliable performance in the field.
Broad Sizing Matrix: Available in an extensive range from 2 inches up to a massive 60 inches (DN50 to DN1500), accommodating everything from auxiliary lines to main arterial aqueducts.
High-Pressure Capabilities: Engineered to withstand severe system pressures, fully compliant with ANSI Classes 125, 150, and 250, as well as API and ASME specifications.
Stringent Quality Control: Every individual valve is subjected to high-pressure shell and seat hydrostatic testing to verify structural integrity and sealing performance before dispatch.
Material Traceability: Full documentation and material test reports are available, ensuring complete transparency and compliance for your engineering procurement records.
The exceptional versatility and reliability of the non-slam tilting check valve make it a cornerstone component across a multitude of demanding sectors. Its proven ability to handle diverse fluid media while providing fail-safe backflow prevention has cemented its reputation as the go-to solution for critical infrastructure projects worldwide.
Municipal Water Treatment: Absolutely essential for protecting high-lift pump stations and expansive distribution networks from devastating pressure surges.
Wastewater Management: The robust construction and resilient seating options handle raw sewage and abrasive effluents with exceptional, long-lasting reliability.
Cooling Water Circuits: Perfect for industrial cooling towers and heat exchanger loops where continuous, unimpeded flow is critical for thermal management.
Industrial Processing: Highly adaptable for various industrial applications requiring strict backflow prevention without the risk of mechanical slamming or pipeline vibration.
System downtime is the enemy of operational profitability. Therefore, this valve is designed with a "fit-and-forget" philosophy, requiring minimal maintenance throughout its extensive service life. When specialized operational profiles are required, the valve platform offers a suite of customizable accessories to precisely match your system's unique hydraulic characteristics.
Maintenance-Free Internals: The self-lubricating bushings and robust pivot design eliminate the need for routine internal lubrication or complex mechanical adjustments.
Hydraulic Dashpots: For extreme applications, optional external dampening cylinders can be fitted to further control the closing speed and absolutely guarantee zero water hammer.
Visual Position Indicators: Optional external levers and indicators provide operators with immediate, clear visual confirmation of the valve's open or closed status.
Extended Lifespan: By minimizing internal wear and eliminating slamming forces, the valve dramatically reduces the frequency of replacement cycles and associated maintenance costs.
Sourcing critical infrastructure components demands a partner who understands the intricate balance of engineering precision, supply chain reliability, and long-term value. As a dedicated manufacturer and global supplier, we control every aspect of the production process, from raw material metallurgical testing to final hydraulic calibration. Our commitment extends far beyond the delivery of a product; we provide comprehensive fluid control solutions designed to optimize your operational efficiency.
Direct Manufacturer Advantage: By eliminating intermediaries, we offer highly competitive pricing structures optimized for volume procurement and large-scale project supply.
Uncompromising Quality Control: Our state-of-the-art testing facilities ensure that every valve exceeds international safety and performance benchmarks before it leaves our factory floor.
Deep Technical Expertise: Our in-house engineering team provides dedicated support, assisting with complex hydraulic calculations, sizing, and custom material selection.
Global Logistics Network: We possess the robust capability to fulfill massive project orders with precise scheduling, ensuring your construction timelines are strictly maintained.
To assist your engineering and procurement teams in making an informed decision, we have compiled detailed answers to the most common technical inquiries regarding our short series tilting check valves.
The Short Series features a significantly reduced face-to-face dimension compared to standard models. This compact architecture is specifically engineered to fit into tight spatial constraints, reducing the overall weight and minimizing the structural support required, entirely without sacrificing flow capacity or pressure ratings.
The valve utilizes an off-center pivot point and a highly balanced disc. As forward flow decreases, the disc begins to close dynamically. Because the stroke distance is extremely short, the valve seals entirely just before the fluid can reverse direction, preventing the sudden collision of water that causes the shockwave known as water hammer.
Yes. When configured with a ductile iron body, heavy-duty interior epoxy coating, and resilient EPDM seating, the valve is highly resistant to the abrasive and corrosive nature of raw wastewater. The streamlined internal geometry also prevents the accumulation of stringy materials and debris.
No, external dampeners (dashpots) are not strictly necessary for standard applications, as the inherent design of the tilting disc provides excellent non-slam characteristics. However, for highly critical systems with extreme pressure differentials or massive pump heads, custom dashpots can be added to provide an extra layer of controlled deceleration.
The internal pivot mechanism is designed to be virtually maintenance-free. It utilizes high-grade, wear-resistant alloy pins and self-lubricating bushings that thrive in continuous-operation environments. Routine external inspections are generally sufficient, significantly reducing your facility's ongoing maintenance overhead.
