NIPO
Applicable Standards:
Ball Valve design according to API6D,BS5351,ASME B16.34
Face to face ASME B16.10,API6D
End Flanges ASME B16.5/ASME B16.47
Butt welded ends ASME B16.25
Fire Safety API607,API6A
Inspection and test API 598,API6D
Material: A105N
Size Range: 1/2"~8"
Pressure Rating: ASME CL, 150, 300, 600
Temperature Range: -196°C~600°C
Design Description:
- Two Pieces or Three Pieces Body
- Metal or Soft Seated
- Full or Reduced Bore
- Flanged or Butt Welded Ends
- Anti Blow Out Stem
- Anti Static Device
- Fire Safe Design
- Locking device
- ISO Mounting Pads (Optional)
Brand | NIPO |
Structure | Ball |
Valve Material | NIPO provide cast steel, stainless steel, special alloy, CI, DI etc |
Valve Type | NIPO Produce Ball Valve |
Valve Test | 100% quantity tested before delivery |
Valve Guarantee | 18 months after shipments and 12 months after installed |
Valve Structure | Ball Valve |
Valve Delivery | 15 - 30 days |
Valve Sample | Sample Available by NIPO Valve |
Valve Color | Customer request |
Valve Packing | Plywood Case for Ball Valve |
MOQ | 1 Set |
Valve Certificate | API6D/CE/ISO9001/ISO14001 |
Place of Origin | Zhejiang, China (Mainland) |
Delivery Detail: | Shipped in 15-30 days after payment |
Port | Shanghai Or Ningbo |
Payment Terms | L/C,D/A,D/P,T/T, Western Union |
Application & Function:

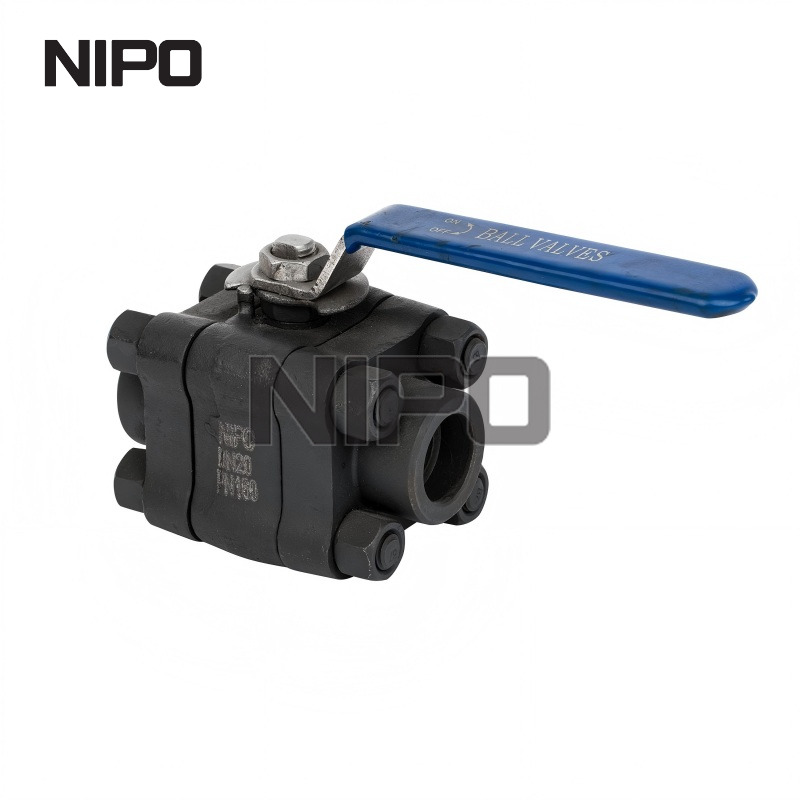

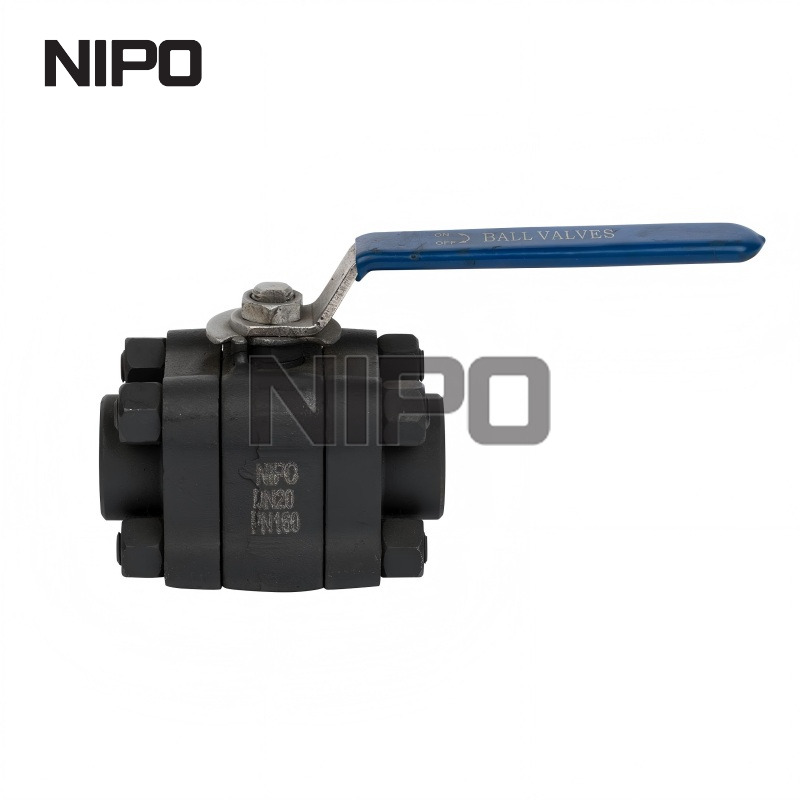

NIPO Cast Floating Metal Seated Ball Valve can be used to handle a variety of liquids, suspended solids and gases in many type of industry. Ball valves are suited for fluid flow requiring assured performance, tight shutoff, constant torque and no maintenance.
NIPO Cast Floating Metal Seated Ball Valve offer quick, quarter-turn operation, visual indication of the valve position, straight uninterrupted flow, and compact size. The full bore design minimizes pressure drop across valve while maximizing flow capability and throughput economy for general line services.
Accessories:
Accessories such as worm gear operator, actuators, locking devices, chain wheels, extended stem for cryogenic service and many others are available to meet the customer’s requirements.
