Views: 0 Author: Site Editor Publish Time: 2026-06-18 Origin: Site
A butterfly valve is a device that controls flow. It helps you manage how liquids or gases move in a pipe. This valve has a disc that turns to control flow. When you turn the handle, the disc moves with or against the fluid. This lets the fluid pass or stops it completely. Many industries use butterfly valves because they work well and last long.
Butterfly valves are expected to make up 26.2% of the industrial valve market in 2026.
Some new designs, like triple eccentric butterfly valves, seal better and last longer.
Butterfly valves use a disc to control flow in pipes. The disc turns to open or close the flow of liquids or gases. These valves are small and do not take up much space. They are not expensive and are easy to take care of. This makes them good for many types of jobs. Triple eccentric butterfly valves seal better and last longer. They do this by lowering friction and wear when working. When picking a butterfly valve, think about the fluid type. Also, check the pressure and temperature for best results. You can pick manual or automated actuators for control. Manual actuators are simple. Automated actuators give more exact control.

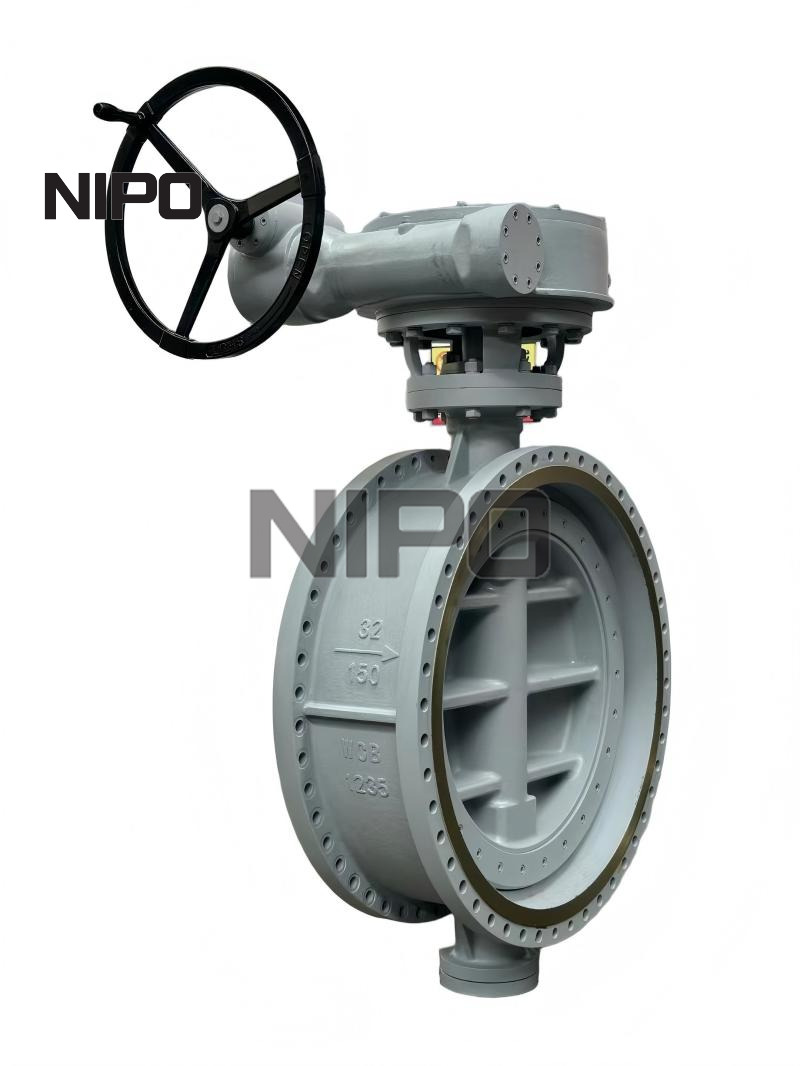

A butterfly valve helps control how liquids or gases move in pipes. It has a round disc on a shaft in the middle. When you turn the handle, the disc spins. This lets you open, close, or change the flow. The disc sits across the pipe, so you can stop or start flow fast with just a quarter turn. This makes it simple to use and good for emergencies.
The Nipo Valves butterfly valve uses a triple eccentric design. This special shape helps the disc seal tightly when closed. The disc does not rub the seat when opening or closing, so there is less friction and it lasts longer. The valve seals both ways, so it stops leaks in either direction.
Here are some main reasons why people like butterfly valves for flow control:
Characteristic | Description |
|---|---|
Compact design | It is light and does not need much space, so it works well in big pipes. |
Quick operation | You can open or close it fast with a quarter turn, which is good for emergencies. |
Cost-effective | It costs less to make, put in, and fix than other valves. |
Low maintenance | There are not many moving parts, so it does not break often. |
Versatility | You can use it with many types of liquids and gases, even ones that can corrode. |
Corrosion resistance | A lining keeps the metal safe from rust and damage. |
Wide range of sizes | You can get it in many sizes and shapes for different jobs. |
You might wonder how butterfly valves are different from other valves. Here is a simple list to help you see:
Butterfly valves use a round disc on a rod to control flow.
Ball valves have a hollow ball that turns to let things pass.
Gate valves use a flat piece that moves up and down to open or close.
The disc in a butterfly valve sits across the pipe, so it controls flow well but may leave some stuff in the pipe.
Butterfly valves are used in many industries because they are reliable and easy to take care of. The Nipo Valves butterfly valve works well in tough places like metal factories, power plants, chemical plants, gas pipes, and water systems. The triple eccentric design and tight seal make it a good choice for important jobs.
Here is a table that shows where you might use a butterfly valve and why:
Industry | Primary Reasons for Selection |
|---|---|
Food Processing | It is easy to clean and keeps things sanitary. |
Refineries | It can handle many pressures and temperatures. |
HVAC Systems | It is cheap and light, so it is easy to use. |
Water Treatment | You can use it to stop or slow down flow. |
You see butterfly valves in water plants because they can stop or slow water. You also find them in gas and chemical pipes, where it is important to be strong and not leak. Because they are light and need little fixing, butterfly valves are a smart pick for big systems.
Tip: When you pick a butterfly valve, think about what will flow through it, the pressure, and the temperature. Nipo Valves has special features to help you meet tough industry rules.
Understanding the main parts of a butterfly valve helps you see why it works so well in many industries. Each part has a special job. The design of these parts, especially in advanced models like the Nipo Valves triple eccentric butterfly valve, gives you better performance and longer service life.
The disc and shaft are the heart of the butterfly valve. The disc sits inside the pipe and turns to control the flow. When you move the handle or actuator, the shaft rotates the disc. This simple movement lets you open, close, or adjust the flow quickly.
In high-performance butterfly valves, you find a triple eccentric design. This means the disc and shaft do not sit right in the center. Instead, they are set off at three points. This special shape keeps the disc from rubbing against the seat when you open or close the valve. Less friction means the valve lasts longer and works smoothly. The disc’s shape also helps control how much pressure drops as fluid moves through the valve. You get better flow control and less wear over time.
Nipo Valves uses strong materials like stainless steel for the disc. This makes the valve tough and able to handle harsh fluids or high temperatures. The triple eccentric design also gives you bi-directional flow capability. You can stop leaks from either side of the valve, which is important in many systems.
The body and seat hold everything together and make sure the valve fits tightly in the pipeline. The body is usually made from strong metals like ductile iron or carbon steel. Some valves use special plastics or rubbers for certain jobs. The seat is the part that touches the disc when the valve is closed. It creates a seal to stop leaks.
Here is a table showing common materials for the body and seat, and where you might use them:
Material | Properties | Applications |
|---|---|---|
UPVC | Lightweight, resists mild acids and alkalis | Water treatment systems |
PP | Handles strong acids | Chemical transport, wastewater |
CPVC | Withstands high temperatures | Chemical plants |
EPDM | Great for water, resists aging | Water supply systems |
NBR | Good for oil, resists wear | Oil pipelines |
VITON | Stands up to heat and chemicals | High-temperature jobs |
PTFE | Resists corrosion | Corrosive fluids |
The seat in a triple eccentric butterfly valve, like the one from Nipo Valves, uses a special metal-to-metal seal. This seal only touches the disc when the valve is closed. You get a bubble-tight seal in both directions. This design keeps the valve from leaking, even under high pressure or temperature.
Seals and bearings help the butterfly valve work smoothly and stop leaks. The seal sits between the disc and the seat. When you close the valve, the disc presses against the seat and forms a tight seal. This keeps fluid from passing through. The seal works well because of the right pressure, good materials, and careful design.
You can find two main ways the seal works:
Interference fit: The disc squeezes the seat when closed.
Pressure-assisted: The system’s pressure helps push the disc against the seat for a tighter seal.
Bearings support the shaft and let it turn easily. Good bearings and regular lubrication make the valve last longer. They also help the valve handle tough jobs without breaking down. If you keep the seals and bearings in good shape, your butterfly valve will stay reliable and need less fixing.
Tip: The triple eccentric butterfly valve from Nipo Valves uses a strong metal seal and precise bearings. This gives you a valve that works well for a long time, even in hard conditions.
Here is a table to help you see how each part works together:
Component | Description | Function |
|---|---|---|
Body | Made of strong metal or plastic | Holds the valve and connects to the pipe |
Disc | Rotating part, often metal | Controls flow by turning |
Shaft | Connects disc to handle or actuator | Moves the disc |
Seat | Sealing surface, often rubber or metal | Stops leaks when closed |
Seal | Sits between disc and seat | Keeps fluid from leaking |
Bearings | Support the shaft | Help the valve turn smoothly |
When you choose a butterfly valve, look for designs with triple eccentric geometry and bubble-tight sealing. These features give you better leak protection, longer life, and smooth operation. Nipo Valves offers these advanced features to help you get the best results in your system.
There are two main types: wafer and lug. Wafer valves fit between two pipe flanges. They are small and good for tight spaces. If you need to fix a wafer valve, you must shut down the whole system. Lug valves have threads on both sides. You can take off one side of the pipe to fix it. This means you do not have to stop the whole system. Lug valves are easier to reach and work on.
You must turn off the whole system to fix wafer valves.
Lug valves let you remove one side for repairs.
Wafer valves are best for small spaces.
Lug valves need more space but are easier to fix.
Butterfly valves come in different designs. The disc and shaft can be in different places. There are concentric, double eccentric, and triple eccentric types. Double eccentric valves move the disc and stem away from the center in two ways. This helps the valve last longer because there is less rubbing. Triple eccentric valves add a third offset. The disc does not touch the seat when it moves. This means no rubbing and a tight seal.
Here is a table that shows the main types and what they do:
Type | Description | Typical Applications |
|---|---|---|
Centered (Concentric) | Disc turns around the middle. | Water, air, HVAC systems |
Double-Eccentric Disc | Disc and stem are off-center in two ways. | City water, medium pressure |
Triple-Eccentric Disc | Third offset for no rubbing and tight seal. | High heat, high pressure, tough jobs |
Body Styles | Wafer, Lug, ASME flanged. | Depends on job and pressure |
You should pick the right butterfly valve for your job. Regular valves are good for low pressure and low heat. Use them for water, air, and HVAC. Double eccentric valves work for medium pressure and last longer. Triple eccentric valves, like Nipo Valves, are best for hard jobs. They work in high pressure, high heat, and with harsh fluids. These valves can handle very cold and very hot temperatures. Oil, gas, chemical, and power plants use them because they are safe and strong.
Tip: For important jobs, pick a triple eccentric butterfly valve. It seals well, lasts long, and works every time.
When you pick a butterfly valve, you get many good things. That is why lots of industries use them for easy and hard jobs.
The simple design makes it easy to use and understand.
It is light, so you do not need big machines to put it in.
It does not take up much space, which helps in small places.
You can open or close it fast, which is good in emergencies.
There are many sizes, from small to very big pipes.
You can use it to stop or slow down flow when you need to.
Butterfly valves also do not need much fixing compared to other valves. They have fewer moving parts, so you do not have to check or repair them a lot. A butterfly valve can last from 3 to 25 years. How long it lasts depends on the seat material and what goes through the valve.
Tip: If you want a valve that is simple, quick to put in, and works in many places, a butterfly valve is a smart pick.
You should know some things before you choose a butterfly valve. Not every valve works for every job.
The material must match what flows through it. Strong chemicals can damage normal materials fast.
Some seat materials cannot handle high heat.
The disc can rub the seat and wear out, especially with rough fluids.
Most butterfly valves work best with low or medium pressure.
They are not the best if you need very exact flow control.
For very high pressure, you might need a special valve.
Leaks can happen if dirt gets on the seal or if the seal wears out.
You might not get smooth flow if you only open the valve partway.
If you use it in a full vacuum, the seal can break down and not work right.
Here is a table that shows how butterfly valves and check valves compare for maintenance:
Feature | Butterfly Valve | Check Valve |
|---|---|---|
Maintenance | Needs checks to make sure seals are good | Needs little fixing, but may need cleaning |
Note: Always check what fluid, pressure, and temperature you have before you pick a valve. This helps you stop problems and keeps your system safe.
You can open or close a butterfly valve by hand. This is called manual operation. You use a lever for small valves. For bigger valves, you use a gearbox. The gearbox makes turning easier. Manual operation gives you control right at the valve. You only need to turn the handle a quarter turn. This opens or closes the valve fast. Manual valves are cheap and easy to take care of. They work well when you do not need machines to help. You can use them in places where safety is important. The quick turn lets you stop or start flow right away.
Butterfly valves can also use electric or pneumatic actuators. Electric actuators use power to move the valve. You can control the valve from far away. This lets you be very exact. Pneumatic actuators use air to work. They move the valve quickly and last a long time. Both types help you run your system without being there. You can set them to close the valve in an emergency. This keeps things safe and stops spills. Some actuators are smart. They can tell you if the valve is open or closed. They also tell you if something is wrong. This helps you take care of your equipment.
Here is a table to help you compare actuation methods:
Actuation Method | Description |
|---|---|
Manual | Uses a lever or gearbox, simple and cost-effective. |
Electric | Uses electric power, allows remote and precise control. |
Pneumatic | Uses compressed air, fast and reliable for industrial use. |
Hydraulic | Uses pressurized oil, best for large valves or high-pressure jobs. |
Think about a few things before you pick an actuator. Breakaway torque is the force to start moving the valve. It depends on how tight the seat is and if anything is stuck inside. Running torque is the force to keep the valve moving. It changes with the bearings and how the fluid flows. Seating torque is the force to close the valve tight. This makes sure the valve does not leak.
You should also think about how often you will use the valve. Decide if you need it to move fast or slow. Most jobs only need a quarter turn to work well. If you want to use machines or make things safer, electric and pneumatic actuators are good picks.
Tip: Always pick an actuator that fits your valve size, pressure, and how you will use it. This helps your system work well and stay safe.
You have learned that butterfly valves help control flow in many places. Triple eccentric designs, like Nipo Valves, stop leaks and work well in hard jobs. When you pick a valve, think about these things:
What the fluid is and how the valve will be used
The size of the valve and how you will open it
How much fixing it needs and if it has the right papers
Standard | Description |
|---|---|
API 609 | Makes sure butterfly valves work in important jobs |
API 598 | Helps pick valves for oil and gas |
MSS-SP81 | Tells how much can leak in high-pressure systems |
Ask the makers for help to find the right valve for you.
You get a triple eccentric butterfly valve with three offsets in its design. This stops the disc from rubbing the seat. You see less wear and a tighter seal. This design works well for high-pressure and high-temperature jobs.
Yes, you can use a butterfly valve for liquids and gases. You need to pick the right materials for your fluid. Always check the pressure and temperature before you choose a valve.
If you need quick, simple control, pick a manual valve. For remote or frequent operation, choose an electric or pneumatic actuator. Automated valves help you manage large systems or keep things safe.
A butterfly valve can last from 3 to 25 years. The lifespan depends on the material, how often you use it, and what flows through it. Regular checks help you get the most life from your valve.
