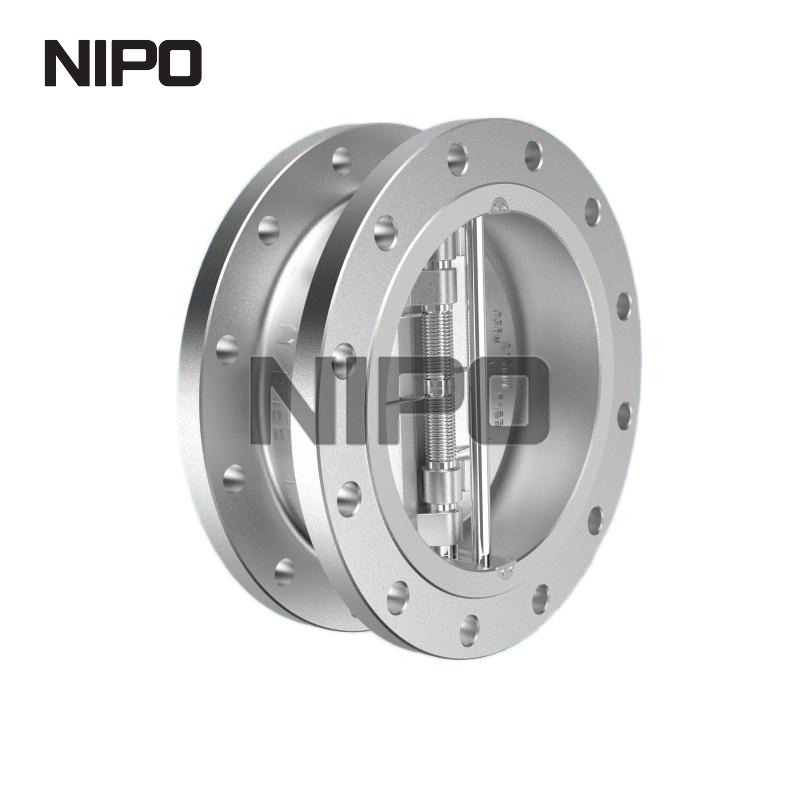

Double Disc Swing Check Valve, Retainerless Flange Design API6D

Dual plate wafer swing check valve is a type of check valve that is designed to prevent backflow in a pipeline system. It features two plates that swing open to allow flow in one direction and close to prevent flow in the opposite direction. The wafer design allows for easy installation between flanges, making it a compact and cost-effective solution for various applications.

Availability:

Quantity:



Inquire Add to Basket

Model:
HR46
Brand:
NIPO

The dual plate design offers a more efficient and reliable sealing mechanism compared to traditional swing check valves. The plates are typically made of durable materials such as stainless steel or carbon steel, ensuring long-lasting performance and resistance to corrosion.

These valves are commonly used in water treatment plants, oil and gas pipelines, HVAC systems, and other industrial applications where backflow prevention is critical. They are available in a range of sizes and pressure ratings to suit different requirements.
