Functions of Flame Arrestor Vent Caps

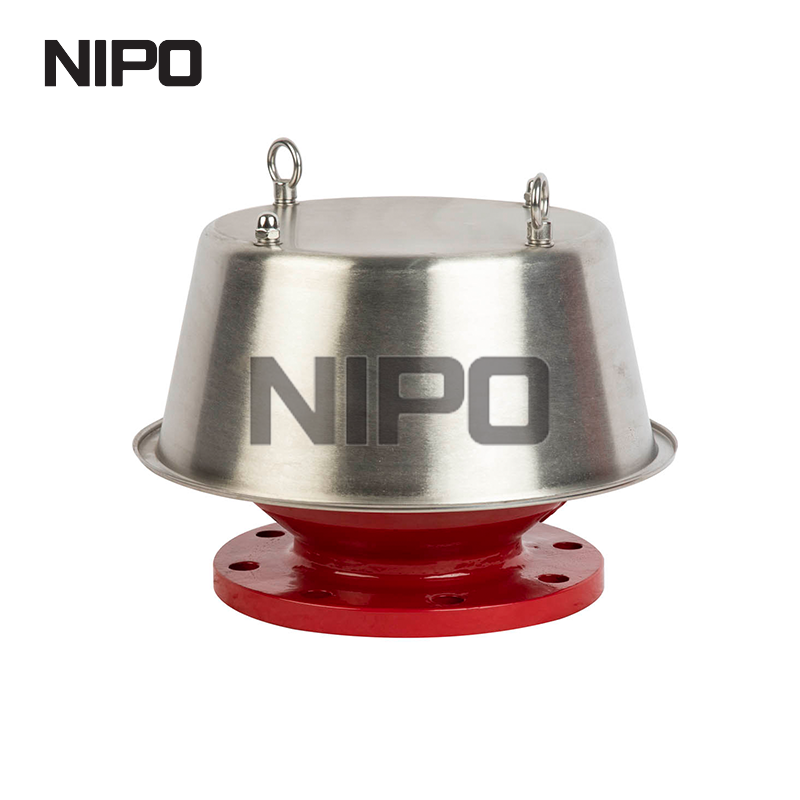

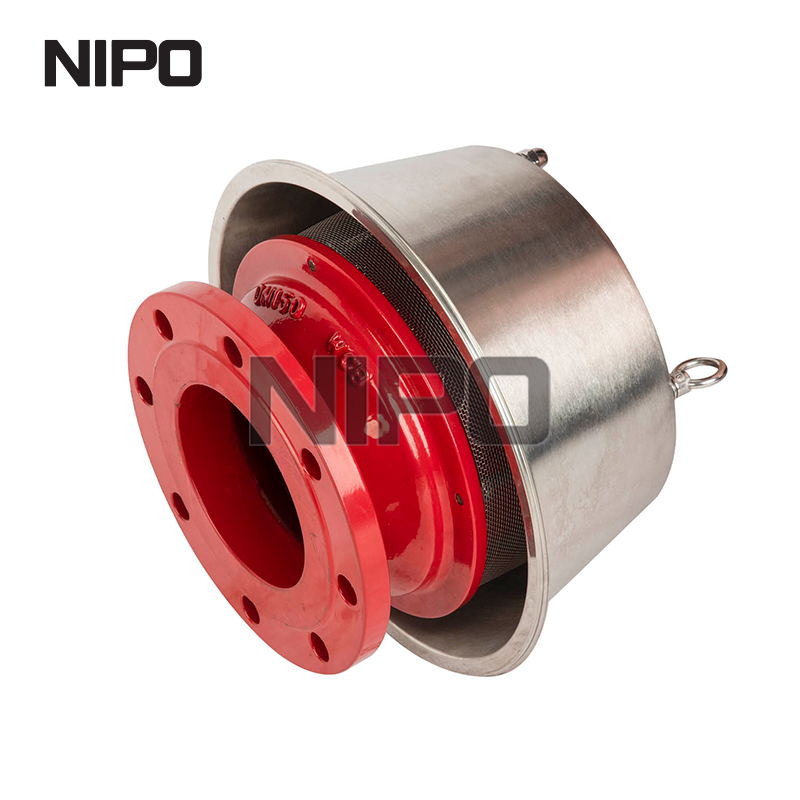

A flame arrestor vent cap is a specialized device that integrates the dual functions of "flame arrestment safety" and "ventilation/exhaust". It is mainly used in storage tanks, containers, or enclosed spaces that hold flammable and explosive media (such as gasoline, diesel, solvents, liquefied petroleum gas, etc.). Its core role is to ensure the smooth circulation of air/gas between the inside and outside of the space while completely blocking the spread of flames, thereby preventing fire and explosion accidents. The specific functions can be elaborated from the following 4 key dimensions:
1. Core Safety Function: Block Flames to Eliminate Explosion Risks at the Source
This is the primary function of a flame arrestor vent cap, and its core principle is based on the "flame quenching effect" — cutting off the flame propagation path through a built-in flame arrestment element (such as metal corrugated plates, porous ceramics, stainless steel mesh, etc.):
-Prevent external flames from entering the interior
If an open flame (such as welding sparks, cigarette butts, or fires in adjacent equipment) occurs in the environment outside the device, the flame may attempt to enter the interior of the storage tank/enclosed space through the vent. At this time, the flame arrestment element will quickly absorb the heat of the flame, reducing the flame temperature below the "ignition point" of the flammable and explosive media (such as oil and gas, solvent vapor) inside. At the same time, it physically blocks the flame from passing through, preventing the internal media from being ignited and causing an explosion.
For example: After installing a flame arrestor vent cap on the top of a tank storing alcohol, even if there are accidental sparks outside the tank, they cannot enter the tank to ignite the alcohol vapor.
-Prevent internal flames from spreading to the outside
If local flames appear inside the storage tank/space due to abnormal conditions (such as internal media leakage, electrostatic discharge), the flame arrestor vent cap can prevent the flames from spreading to the external environment through the vent. This avoids the expansion of the fire range (such as igniting flammable materials and equipment nearby) and controls the risk locally.
2. Basic Practical Function: Ensure Ventilation and Exhaust to Maintain Pressure Balance
Compared with ordinary flame arresters, "ventilation" is its core additional function, specifically addressing the needs of "pressure balance" and "gas renewal" in flammable and explosive spaces:
-Balance internal pressure to protect the container structure
Storage tanks/containers holding flammable and explosive media will experience internal pressure fluctuations due to temperature changes (such as temperature rise during the day and temperature drop at night) or media receiving and dispatching (such as filling oil into the tank or pumping oil out of the tank):
-During temperature rise/oil filling: The internal oil and gas/gas expand, and the pressure increases. Excess gas needs to be discharged through the flame arrestor vent cap to prevent the container from deforming, leaking, or even rupturing due to excessive pressure.
-During temperature drop/oil pumping: The internal pressure decreases, and external air needs to be sucked in through the vent cap to prevent the container from being "sucked flat" due to negative pressure or to avoid affecting the normal receiving and dispatching of media due to the inability of air to enter.
For example: After installing a flame arrestor vent cap on the top of the oil tank of an oil tanker, the oil and gas generated by the temperature change of the oil in the tank during driving can be discharged smoothly, and external air can enter as needed to ensure the structural safety of the oil tank.
-Discharge harmful/flammable gases to reduce internal concentration
Flammable and explosive media in storage tanks/enclosed spaces will continuously volatilize (such as oil and gas generated by gasoline volatilization, toxic vapor generated by solvent volatilization). If the gas cannot be discharged, the internal concentration will gradually increase — this may not only reach the "explosion limit" (explosion occurs when encountering a fire source) but also pose risks to operational safety due to the accumulation of toxic gases.
The flame arrestor vent cap can continuously discharge the internal flammable/toxic gases through natural ventilation or auxiliary ventilation (some with a diversion structure), while sucking in fresh air to maintain the internal gas concentration within a safe range (below the explosion limit and in line with occupational health standards).
3. Special Function for Adaptive Scenarios: Withstand Harsh Environments to Ensure Long-Term Stable Operation
In response to the special needs of flammable and explosive scenarios, the flame arrestor vent cap has adaptive advantages in design to ensure that its functions do not fail:
-Corrosion and high-temperature resistance to adapt to media characteristics
Materials such as stainless steel, copper alloys, and corrosion-resistant ceramics are used. These materials can withstand long-term corrosion from stored media (such as oil and gas, acid-base solvents) and can also withstand instantaneous flame temperatures of several hundred to over a thousand degrees Celsius, avoiding structural damage (such as melting, deformation) under high temperatures and ensuring that the flame arrestment function does not fail.
For example: For storage tanks storing acidic solvents, the shell of the flame arrestor vent cap is made of 316L stainless steel, which can resist corrosion from acidic gases and maintain structural integrity for a long time.
-Anti-clogging to ensure ventilation efficiency
Some flame arrestor vent caps are designed with an "impurity prevention" structure (such as a top rain cover and a bottom dust screen) to prevent rainwater, dust, and debris from entering the interior of the flame arrestment element and causing clogging. If the flame arrestment element is clogged, it will not only affect ventilation and exhaust (leading to abnormal container pressure) but also weaken the flame arrestment effect. This design can reduce maintenance frequency and ensure the long-term stable operation of ventilation and flame arrestment functions.
4. Compliance Function: Meet Safety Standards to Avoid Risks
Its ventilation volume is adapted to the volume of the storage tank/space and the volatilization volume of the media, which can meet the needs of pressure balance and gas renewal. It can be directly installed without additional modification, helping enterprises/users pass safety compliance inspections and avoid penalties or accident risks caused by non-compliant equipment.
Summary
The core value of a flame arrestor vent cap lies in the "unification of safety and practicality": it not only cuts off the flame propagation path through the flame arrestment element, building a "firewall" for flammable and explosive spaces but also solves the problems of pressure balance and gas discharge through the ventilation structure to ensure the normal operation of equipment. It is a key safety device in the storage and use of flammable and explosive media in industries such as petrochemicals, warehousing, and chemical pharmaceuticals.
