In the realm of chemical processing, selecting the right valve is crucial for ensuring operational efficiency and safety. Among the various types of valves available, the Diaphragm Valve stands out due to its unique design and functionality. This guide aims to provide a comprehensive overview of diaphragm valves, focusing on their application in chemical processing, the types available, and the benefits they offer. We will also explore the role of diaphragm valve manufacturers in advancing this technology.
Diaphragm valves are a type of valve that utilizes a flexible diaphragm to control the flow of fluids. The diaphragm acts as a barrier between the flow and the actuator, providing a tight seal and preventing leakage. This design makes diaphragm valves particularly suitable for handling corrosive or viscous fluids, which are common in chemical processing. The simplicity of the diaphragm valve design also allows for easy maintenance and cleaning, making them a preferred choice in industries where hygiene is paramount.

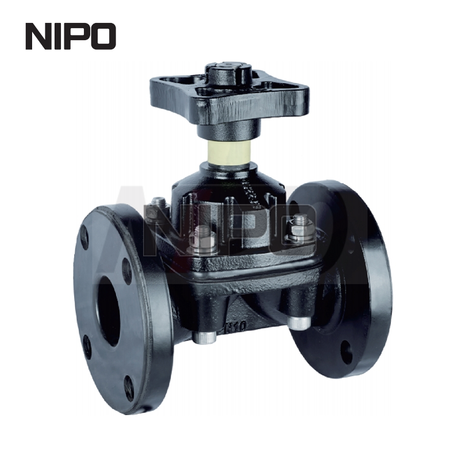

There are several types of diaphragm valves, each designed to meet specific operational needs. The most common types include the weir type and the straight-through type. The Weir Type Flange Diaphragm Valve is characterized by a raised lip or weir that the diaphragm presses against to stop the flow. This type is ideal for applications requiring a tight seal and is available in various sizes, such as Diaphragm Valve DN15-DN350. On the other hand, the straight-through type offers minimal flow resistance, making it suitable for applications involving viscous fluids.
The materials used in the construction of diaphragm valves are critical to their performance, especially in chemical processing environments. Common materials include stainless steel, cast iron, and various plastics, each offering different levels of resistance to corrosion and temperature. The diaphragm itself is typically made from elastomers such as EPDM, PTFE, or Viton, chosen for their chemical resistance and flexibility. The choice of materials depends largely on the specific chemicals being processed and the operating conditions.
Diaphragm valves are extensively used in chemical processing due to their ability to handle aggressive chemicals and abrasive slurries. Their design minimizes the risk of contamination and allows for precise control of fluid flow, which is essential in maintaining the quality and consistency of chemical products. Additionally, diaphragm valves are often used in applications where cross-contamination must be avoided, such as in the production of pharmaceuticals and food-grade chemicals.
Compared to other valve types, diaphragm valves offer several advantages in chemical processing. Their simple design reduces the number of components that can fail, enhancing reliability and reducing maintenance costs. The tight seal provided by the diaphragm also minimizes leakage, which is crucial in preventing hazardous chemical spills. Furthermore, diaphragm valves are less prone to clogging, making them suitable for handling slurries and other particulate-laden fluids.
Numerous case studies highlight the effectiveness of diaphragm valves in chemical processing. For instance, a major chemical manufacturer reported a significant reduction in maintenance downtime after switching to diaphragm valves for their corrosive fluid lines. Another example is a pharmaceutical company that achieved improved product purity by utilizing diaphragm valves in their sterile processing systems. These examples underscore the versatility and reliability of diaphragm valves in demanding industrial applications.
Choosing the appropriate diaphragm valve for a specific application involves considering several factors, including the type of fluid being handled, the operating pressure and temperature, and the required flow rate. It is also important to consider the compatibility of the valve materials with the chemicals being processed. Consulting with diaphragm valve manufacturers can provide valuable insights into the best options for your specific needs.
Many diaphragm valve manufacturers offer customization options to meet the unique requirements of different industries. These may include special coatings for enhanced corrosion resistance, custom actuator options for automated systems, and specialized diaphragms for handling specific chemicals. Additionally, some manufacturers provide advanced features such as position indicators and feedback systems, which can be integrated into process control systems for improved operational efficiency.
In conclusion, diaphragm valves are an essential component in the chemical processing industry, offering unparalleled reliability and performance in handling aggressive and viscous fluids. Their unique design and material versatility make them suitable for a wide range of applications, from pharmaceuticals to food processing. By understanding the specific needs of your operation and consulting with experienced diaphragm valve manufacturers, you can select the right valve to enhance your system's efficiency and safety.
