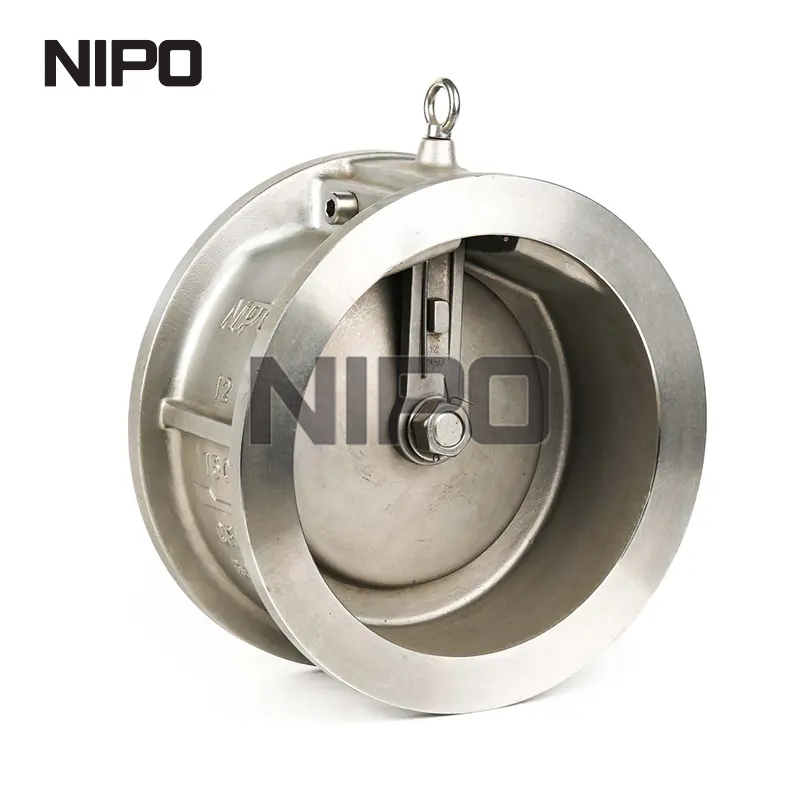

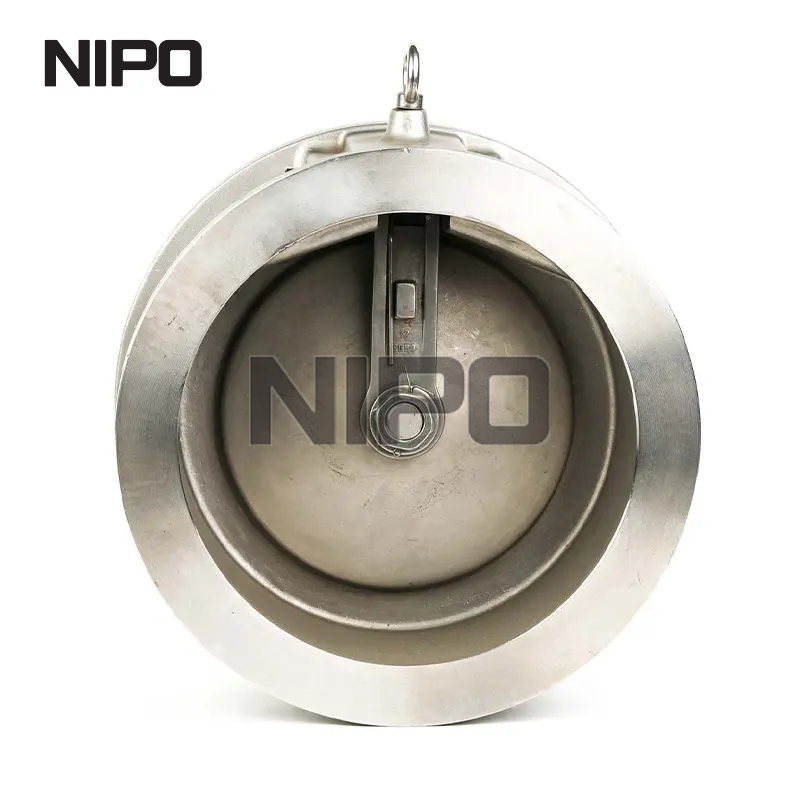

When safeguarding complex, high-capacity pipeline networks, the physical integrity and operational silence of your fluid control components are paramount. The Wafer Type Single Disc Swing Check Valve Long Series (Casting Body) is meticulously crafted to deliver a smooth, cold-to-the-touch metallic finish that speaks volumes about its dense, precision-poured casting. Upon installation and system activation, the immediate absence of the jarring metallic clank typically associated with water hammer provides acoustic confirmation of its superior hydrodynamic design. The heavy-duty casting body, available in forged steel, cast steel, and ductile iron, feels reassuringly substantial, engineered to absorb intense pipeline vibrations and resist structural deformation under massive pressure surges.
By integrating this highly responsive valve into your infrastructure, you drastically reduce the risk of catastrophic backflow, protecting sensitive downstream pumps, meters, and compressors from mechanical shock. The precision-machined disc glides open with minimal fluid resistance, ensuring that your system maintains optimal flow rates without taxing your pumping equipment. This translates directly to lowered energy consumption and reduced operational overhead for your facility. Furthermore, the exterior is enveloped in a flawless, visually uniform epoxy coating that not only gives it a pristine industrial aesthetic but acts as an impenetrable shield against harsh environmental moisture, saline air, and corrosive atmospheric conditions.

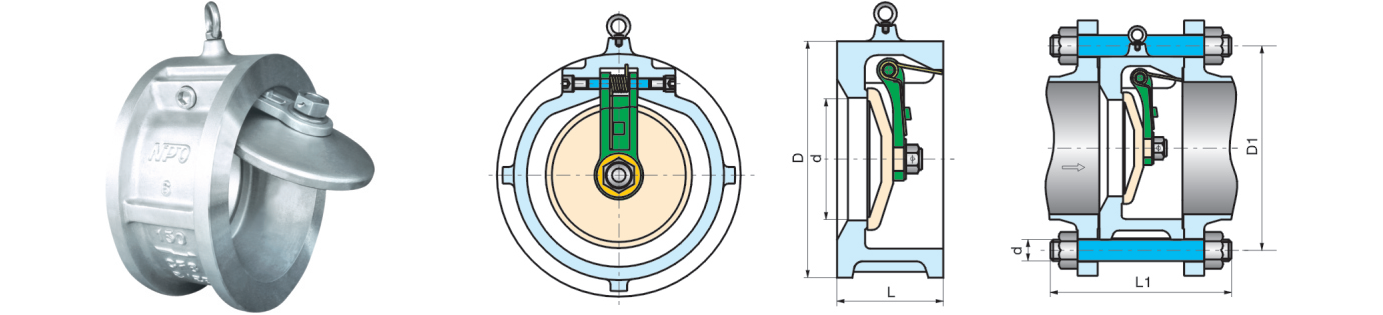

| Product Name | Wafer Type Single Disc Swing Check Valve Long Series (Casting Body) |
| Body Structure | Forged steel body, Cast steel body, Ductile iron body |
| Design Standard | API 594 |
| Testing Standard | API 598 / API 6D |
| Pressure & Temperature Standard | ASME B16.34 |
| Size Range | DN40 - DN900 / 1.5"" - 36"" |
| Pressure Rating | Class 150 - Class 900 / PN10 - PN25 |
| Fitted Available | Retainerless or with pin type |
| Sealing | Soft/Resilient Seated, Metal to metal seat |
| Connection Type | Wafer, Lug, Double Flanged (ASME B16.5, EN 1092) |
| Materials | WCB, CF8, CF3, GR4A, Hastelloy C, etc. |
| Corrosion Protection | Inside and outside epoxy coating |
| Applicable Temperature | -196°C to 540°C (Different raw material for different work temperature) |
| Applicable Medium | Water, oil, gas and other causticity medium |
Upgrading your piping architecture requires components that deliver measurable improvements in safety, longevity, and efficiency. This long series single disc swing check valve is engineered to provide an immediate upgrade to your operational reliability, eliminating the frequent maintenance cycles associated with inferior alternatives. The tactile smoothness of the internal bore ensures that fluid glides through with minimal friction, maximizing your system's throughput while minimizing wear.
Acoustic Dampening: The meticulously balanced disc mechanism significantly dampens the sharp, disruptive sounds of fluid reversal, fostering a safer and quieter working environment for plant personnel.
Frictionless Operation: Precision-engineered hinge mechanisms allow the heavy disc to swing with near-zero resistance, ensuring rapid response times to minute pressure fluctuations.
Visual Integrity: The uniform, high-gloss epoxy coating provides a clear visual indicator of its uncompromising resistance to external degradation, maintaining a clean aesthetic even in rugged environments.
Structural Rigidity: The dense molecular structure of the casting body provides exceptional resistance to torsional stress during heavy-duty pipeline shifts and thermal expansion.
Modern industrial facilities often face severe spatial constraints, making bulky pipeline components a logistical nightmare during installation and maintenance. This valve utilizes a highly compact wafer and short-pattern architecture that dramatically reduces the face-to-face dimension compared to traditional full-port swing check valves. By integrating this streamlined profile, project engineers can reclaim valuable spatial real estate within the plant layout, facilitating easier access for maintenance personnel and simplifying complex piping schematics.
Drastically reduces the physical footprint required for installation, making it the ideal choice for tight mechanical rooms and dense skid-mounted processing systems.
The lightweight nature of the compact design minimizes the structural load and stress on existing pipe supports, hangers, and adjacent flanges.
Significantly lowers initial procurement expenses and slashes the labor hours required for heavy lifting, alignment, and positioning.
Eliminates the need for oversized installation equipment, streamlining the entire assembly process and accelerating project completion timelines.
Unrestricted fluid dynamics are the lifeblood of any profitable processing facility. This single plate check valve features an exceptionally low cracking pressure, allowing the medium to flow freely without creating artificial bottlenecks. When a flow reversal event is imminent, the highly responsive disc reacts in fractions of a second, snapping shut before the fluid can gain backward momentum.
Mitigates the destructive mechanical forces of water hammer, preserving the structural integrity of expensive downstream pumping infrastructure and sensitive metering equipment.
Maintains a smooth, laminar flow trajectory, which minimizes pressure drop and reduces the electrical load and wear on system pumps.
The silent closure mechanism eliminates the harsh, percussive shockwaves that typically vibrate through conventional piping networks, preventing long-term fatigue in pipe joints.
Optimized flow contours within the valve body prevent the accumulation of debris, scale, and suspended solids, ensuring consistent performance over years of continuous operation.
Fugitive emissions and internal fluid bypass represent significant risks to both environmental compliance and operational profitability. To combat this, our valve offers a dual approach to containment. The availability of both resilient soft seats and precision-lapped metal-to-metal seats guarantees a bubble-tight seal tailored to your specific media. The optional retainerless configuration is a masterclass in containment, entirely removing through-body penetrations.
The retainerless design completely eradicates potential external leak paths, satisfying the most stringent environmental emission mandates and ensuring total atmospheric safety.
Soft seating options (such as EPDM, Viton, and PTFE) provide a pliable, forgiving surface that absorbs microscopic particulates while maintaining an impenetrable fluid barrier.
Metal-to-metal seating delivers unyielding performance in highly abrasive, high-velocity, or extreme-temperature applications where standard elastomers would quickly degrade or fail.
Ensures a pristine, dry exterior, eliminating the pungent odors, hazardous puddles, and slip risks associated with chemical seepage in the plant environment.
Enhances overall site safety by preventing the unseen escape of volatile, flammable, or highly toxic gaseous mediums into confined workspaces.
The operational longevity of an industrial valve is intrinsically tied to its metallurgical composition and surface protection. We offer an extensive library of premium raw materials, ranging from standard carbon steel (WCB) to advanced austenitic stainless steels (CF8, CF3) and exotic superalloys like Hastelloy C. This metallurgical diversity ensures that whether your system handles cryogenic liquids at -196°C or superheated steam at 540°C, the valve core remains structurally invincible.
Comprehensive internal and external epoxy coating acts as a formidable barrier against saline atmospheres, preventing the rough, flaky buildup of iron oxide and subsequent structural weakening.
Hastelloy and duplex stainless options effortlessly repel the biting, acrid attack of sulfuric, hydrochloric, and other highly caustic chemical acids.
Maintains its structural yield strength and resists thermal embrittlement across a massive temperature spectrum, ensuring reliability in the most extreme processing environments.
The smooth, glass-like epoxy finish prevents biological fouling and mineral scaling, ensuring the internal bore remains slick and entirely unobstructed for the lifespan of the valve.
Versatility in deployment drastically reduces the need for maintaining a massive, varied inventory of spare parts. This long series check valve is engineered to interface seamlessly with a multitude of international flange standards, including ASME, EN, and DIN. Whether your specific pipeline architecture dictates a wafer, lug, or double-flanged connection, this unit adapts effortlessly to your existing infrastructure.
Engineered for multidirectional orientation, performing flawlessly in both horizontal pipeline runs and upward-flowing vertical risers without compromising sealing efficacy.
Lugged configurations allow for downstream pipe removal without depressurizing the upstream network, facilitating localized, safe, and efficient maintenance procedures.
Universally compatible with diverse industrial sectors, proving its worth from aggressive chemical processing plants and offshore oil rigs to high-purity HVAC chilled water loops.
Simplifies the procurement process by offering a single, highly adaptable platform that meets the dimensional and pressure requirements of global facilities.
Trust in critical industrial equipment is built upon a foundation of rigorous, uncompromising validation. Every single casting body swing check valve that leaves the manufacturing facility is subjected to a punishing battery of tests to guarantee its field readiness. By strictly adhering to API 594 design protocols and ASME B16.34 pressure-temperature ratings, we ensure that the product delivers consistent, predictable performance under the most extreme industrial stresses.
Comprehensive hydrostatic and pneumatic testing in strict accordance with API 598 and API 6D guarantees zero-defect performance prior to deployment in your facility.
Advanced dimensional verification ensures that every flange face, seating surface, and bolt hole aligns with microscopic precision, preventing installation binding or uneven gasket compression.
Strict material traceability protocols provide complete transparency, ensuring the chemical composition of the casting meets exact, documented metallurgical standards.
Delivers an extended operational lifespan, drastically reducing the frequency, complexity, and exorbitant costs of mandatory plant turnarounds and emergency maintenance.
Selecting the right manufacturing partner is just as critical as selecting the right hardware. As a dedicated supplier of premium valve technologies, we understand that your volume procurement decisions directly impact your facility's operational uptime, safety record, and bottom line. We bridge the gap between heavy-duty industrial manufacturing and refined, client-centric service, ensuring that your sourcing requirements are met with precision, speed, and unwavering reliability.
Unwavering Consistency: Our highly automated casting and machining processes ensure that whether you order ten units or a thousand, every single valve exhibits the exact same flawless finish and dimensional accuracy.
Technical Consultation: We provide deep engineering support, carefully analyzing your specific fluid dynamics, pressure drops, and corrosive challenges to recommend the perfect material and seating configuration for your project.
Streamlined Supply Chain: Built to support large-scale industrial projects, our robust inventory management and global logistical networks ensure that your critical components arrive precisely when the installation schedule demands.
Long-Term Reliability: We do not merely supply metal components; we supply operational peace of mind. Our rigorous quality assurance guarantees that our valves will quietly and efficiently protect your pipelines for decades.
Navigating the technical nuances of fluid control systems can be complex. Below, we address some of the most critical engineering inquiries regarding our casting body swing check valves to assist your procurement and engineering teams in making highly informed decisions.
The retainerless configuration completely eliminates the hinge pin penetration through the external valve body. This advanced design removes a potential external leak path, making it an absolute requirement for applications handling toxic, volatile, or highly corrosive media where fugitive emissions must be strictly prevented for safety and environmental compliance.
Yes, this wafer type single disc swing check valve is highly adaptable and can be installed in vertical pipelines, provided that the fluid flow is in the upward direction. The internal disc mechanism is engineered to utilize fluid velocity to remain open, while gravity, combined with backpressure, ensures it seals tightly and instantly upon flow cessation.
The comprehensive internal and external epoxy coating provides a smooth, non-porous barrier that aggressively resists oxidation, chemical attack, and moisture penetration. Tactilely, it provides a slick surface that minimizes friction and prevents the adhesion of scale or biological growth, thereby maintaining a clear flow path and significantly extending the valve's operational lifespan.
Soft seating (utilizing elastomers like PTFE, Viton, or EPDM) is ideal for achieving a bubble-tight, zero-leakage seal in applications with relatively clean fluids and moderate temperatures. Metal-to-metal seating is mandatory for extreme environments—such as those involving highly abrasive slurries or temperatures up to 540°C—where soft materials would rapidly degrade, melt, or tear under stress.
The long series pattern provides a specific face-to-face dimension that perfectly matches older, traditional swing check valves. This critical feature allows maintenance teams to seamlessly drop this modernized, lightweight wafer valve into existing pipe gaps during system retrofits, completely eliminating the need to cut, weld, or expensively reconfigure the surrounding pipework.
"
