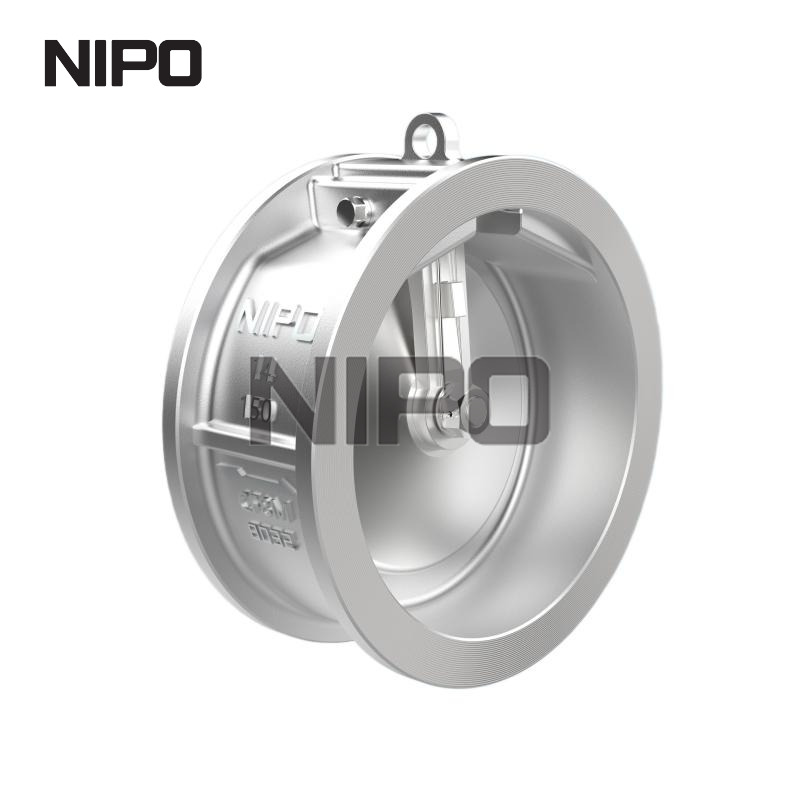

As a premier manufacturer and supplier of industrial fluid control solutions, we present the Wafer Type Single Disc Swing Check Valve Long Series (Casting Body). Engineered for large-scale pipeline systems, this component ensures unidirectional media flow without the need for external actuation.
Prevents media backflow automatically through gravity and pressure dynamics.
Optimized for large diameter and high-pressure industrial networks.
Highly adaptable for water, oil, and gas applications.
The Wafer Type Single Disc Swing Check Valve is an essential fluid control product meticulously designed to allow for the one-way flow of media while automatically preventing destructive media backflow. Visually, the valve presents a robust, heavy-duty casting body that speaks to its industrial-grade durability, yet its wafer-style profile maintains a surprisingly streamlined footprint that fits seamlessly between standard pipe flanges. When integrated into a pipeline network, it operates with complete autonomy. The internal mechanism relies purely on the physical dynamics of the system, automatically opening based on the forward media pressure to create a smooth, unobstructed passage. As the flow ceases or attempts to reverse, the finely machined stainless steel valve disc responds instantly. Driven by the combination of its own calculated weight and the building backflow pressure, the disc swings shut with a solid, reassuring seal. This gravity and pressure-assisted closure eliminates any reliance on manual intervention or complex electric and pneumatic actuators. By relying on these fundamental fluid mechanics, the valve provides a highly dependable safeguard for critical infrastructure, ensuring that pumps, compressors, and downstream machinery remain completely protected from the mechanical shock and potential devastation caused by reverse flow.
Product Type | Wafer Type Single Disc Swing Check Valve |
|---|---|
Body Material | Casting Body (Ductile Iron / Cast Iron / Carbon Steel / Stainless Steel) |
Disc Material | Stainless Steel (Typical) |
Seat/Seal Material | Resilient Soft Seats (Buna-N / PTFE / Viton) |
Size Range | Suitable for Large Diameter (Typically 2" - 24" or larger) |
Pressure Rating | Suitable for High Pressure Conditions (Typically ASME Class 150/300, up to 250 PSI WOG) |
Connection Style | Wafer Ends (Fits between flanges) |
Operation Method | Automatic (Actuated by Media Pressure, Gravity, and Backflow) |
Core Functions | Backflow Prevention, Water Hammer Reduction, Automatic One-Way Sealing |
Applicable Media | Water, Oil, Gas |
Upgrading your pipeline infrastructure requires components that deliver uncompromising safety and operational efficiency. This swing check valve is engineered with specific features that directly translate into long-term operational stability and reduced equipment degradation for rigorous industrial environments.
Absolute Backflow Prevention: Actively prevents water, oil, or gas from flowing backward when pumps or machinery are halted, shielding high-value mechanical assets from the severe damage typically caused by reverse flow scenarios.
Automatic One-Way Sealing: Facilitates unidirectional media flow by automatically opening the valve disc to create a smooth passage. The moment media attempts to flow in the opposite direction, the disc swings shut rapidly, cutting off the passage entirely.
Comprehensive Pipeline Safety Protection: Engineered to absorb and prevent water hammer impacts, mitigate pressure loss across the pipeline network, and eliminate the risk of equipment reversal that stems from sudden backflow.
Exceptional Capacity for Demanding Conditions: Specifically designed and structurally reinforced to operate with maximum efficacy in high-pressure environments utilizing large pipe diameters, ensuring unyielding performance when it matters most.
The wafer-type single disc configuration represents a significant leap in spatial optimization. Compared to traditional flanged check valves, this unit boasts a substantially smaller volume, lighter overall weight, and a drastically reduced face-to-face structural length. For procurement teams and facility managers, this translates directly to conserved installation space, easier handling during construction, and significantly lowered initial purchasing and labor costs.
Efficiency in fluid dynamics is paramount for maintaining system profitability. This valve features an exceptionally low cracking pressure, allowing fluid to initiate flow with minimal mechanical resistance. Combined with a short, straight, and unobstructed internal flow path, it dramatically minimizes head loss and pressure drops. This hydraulic efficiency significantly elevates the overall energy performance of the entire pipeline network, reducing the daily workload on industrial pumps.
Operating entirely independent of manual, pneumatic, or electric controls, this valve relies solely on media pressure for actuation. It achieves rapid closure through a combination of disc weight and back-pressure moments before reverse flow can fully develop. This immediate, autonomous response is critical for eliminating water hammer shockwaves, thereby safeguarding expensive pumps, meters, and downstream processing equipment from catastrophic mechanical failure.
Built to endure the harshest industrial environments, the valve utilizes a high-strength casting body available in ductile iron, cast iron, carbon steel, or stainless steel. This rugged exterior houses a highly corrosion-resistant stainless steel disc and resilient soft seats crafted from premium materials like Buna-N, PTFE, or Viton. This meticulous material selection guarantees a bubble-tight seal and an extended service life, even under severe large-diameter and high-pressure conditions.
Tailored specifically for heavy-duty industrial demands, this valve is highly versatile. It is fully compatible with a wide spectrum of media, including raw water, refined oils, and industrial gases. Facility engineers frequently specify this model for rigorous applications across municipal water treatment plants, petrochemical refineries, power generation facilities, food and beverage processing lines, and large-scale commercial HVAC systems.
Compliance and reliability are non-negotiable for global industrial projects. The design, manufacturing, and rigorous testing protocols of this valve strictly align with premier international standards, including API 594, API 598, and ASME B16.5/B16.42. This steadfast adherence to global norms ensures that the product meets the most stringent engineering acceptance criteria and quality benchmarks demanded by top-tier procurement specialists.
Designed with operational convenience in mind, the valve supports both horizontal and vertical (upward flow) installation orientations. Its streamlined internal architecture features minimal moving parts, which drastically reduces the probability of mechanical wear and tear. Consequently, facility operators benefit from a significant decrease in routine maintenance frequency, lower replacement parts inventory, and reduced costly system downtime.
Sourcing critical pipeline infrastructure requires a manufacturing partner capable of delivering consistent quality, scalable production, and deep engineering expertise. As a dedicated manufacturer and global supplier of premium fluid control systems, we prioritize the operational success of your industrial facilities. Our production floors leverage advanced casting technologies and precision machining to ensure every valve meets exacting tolerances.
Direct Manufacturer Advantage: By controlling the entire production lifecycle from raw casting to final assembly, we eliminate intermediary markups, providing highly competitive pricing for bulk procurement and large-scale engineering projects.
Stringent Quality Assurance: Every single valve undergoes rigorous hydrostatic and pneumatic pressure testing before leaving our facility, guaranteeing zero-leakage performance and immediate readiness for field deployment.
Customized Engineering Support: Our technical team collaborates closely with project engineers to select the optimal body materials and resilient seat compounds tailored to your specific media and temperature requirements.
Reliable Global Fulfillment: With optimized inventory management and streamlined logistics networks, we ensure punctual delivery schedules to keep your critical construction or maintenance timelines firmly on track.
To assist engineering teams and procurement specialists in making informed decisions, we have compiled answers to the most technical inquiries regarding our swing check valves.
Q: What is the primary advantage of the wafer-type design over a standard flanged swing check valve?
A: The wafer-type design is meticulously engineered to fit seamlessly between existing pipe flanges, resulting in a much shorter face-to-face dimension and significantly reduced weight. This compact footprint simplifies installation in confined spaces, reduces the structural load on the piping system, and lowers overall material and shipping costs for large-scale projects.
Q: Can this swing check valve be installed in a vertical pipeline?
A: Yes, this valve offers excellent installation flexibility. It can be installed in horizontal pipelines as well as vertical pipelines, provided that the media flow in the vertical orientation is strictly in the upward direction. This specific orientation ensures that gravity assists the disc in seating properly against any potential reverse flow.
Q: How does the valve achieve a bubble-tight seal in high-pressure gas or liquid applications?
A: The valve achieves a bubble-tight seal through the precise integration of machined stainless steel discs and high-quality resilient soft seats, such as Buna-N, PTFE, or Viton. When back-pressure is applied, it forces the smooth metallic disc firmly against the pliable soft seat, filling any microscopic surface imperfections and completely preventing media bypass.
Q: What maintenance is required for the internal components of this check valve?
A: Due to its streamlined internal architecture with minimal moving parts, the valve requires very little routine maintenance. The primary mechanism relies on a simple, robust hinge and disc assembly. Periodic inspection during scheduled system shutdowns to check for seat wear or debris accumulation is generally sufficient to ensure decades of reliable service.
Q: Are these valves suitable for handling abrasive or highly corrosive media?
A: The suitability for corrosive or abrasive media depends entirely on the selected material configuration. As a flexible manufacturer, we offer the casting body and internal components in various premium grades, including high-alloy stainless steels, paired with chemically inert PTFE seats. We highly recommend consulting with our engineering team to match the exact material specifications to your specific aggressive media profile.
