A hydraulic check valve is the industry’s most fundamental directional control component. It allows fluid to flow freely in one direction while mechanically blocking reverse flow with near-zero leakage. While it often appears as a simple, two-port connector in a schematic, its role is critical. It acts as the primary defense against hydraulic failures that can damage expensive hardware or compromise safety.
The stakes of ignoring check valve selection are high. A failure here does not just mean a stopped machine; it often leads to catastrophic outcomes. Without proper isolation, discharge pressure can force a pump to run backward, shattering the housing. In lifting applications, a failed seat causes cylinder creep, allowing heavy loads to drift downward unintentionally. Seal blowouts and heat generation are common byproducts of poor specification.
Among the various designs available, the Lift Check Valve stands out as a high-durability sub-category engineered for severe service environments. Unlike standard ball or swing types, which may falter under high turbulence, lift check valves provide guided stability for high-pressure systems. This article explores the engineering principles behind these valves, from calculating cracking pressure to selecting a qualified Lift Check Valve manufacturer for industrial applications.
Zero-Leakage Isolation: Unlike spool valves, check valves rely on seat-to-poppet sealing, offering true load holding without drift.
Pump Protection: Installing check valves at pump outlets prevents reverse rotation and housing fractures caused by pressure spikes (water hammer).
Lift Check Specifics: Lift check valves utilize a guided piston/disc mechanism ideal for high-cycle, high-pressure vertical lines, offering superior durability over ball checks.
Sizing Matters: Incorrect "cracking pressure" selection causes system overheating (too high) or valve chatter (too low).
In hydraulic circuit design, the check valve is not merely a connector; it is a logic element. Engineers use it to enforce flow paths, protect sensitive components, and manage pressure zones. Understanding its core functions helps you avoid common circuit design errors.
One of the most significant distinctions in hydraulics is the difference between spool valves and check valves regarding leakage. Spool valves, commonly used for directional control, require a specific clearance between the spool and the bore to function. This clearance creates an inherent internal leakage path. Consequently, a spool valve cannot hold a hydraulic cylinder in a fixed position indefinitely; gravity will eventually push the fluid through that clearance, causing the load to drift.
Check valves solve this problem. They utilize a seat-to-poppet or seat-to-ball design where the closure becomes tighter as back pressure increases. This metal-to-metal or metal-to-soft-seat contact provides a "zero leakage" seal. In gravity-loaded applications, such as crane booms or hydraulic presses, this capability prevents "Cylinder Creep," ensuring the load remains exactly where you positioned it.
The hydraulic pump is the heart of the system, and the check valve is its shield. Placing a check valve at the pump outlet serves three distinct protective functions.
Pressure Spike Blockage: When a system stops suddenly or a valve shifts, shock waves (water hammer) travel backward through the fluid. These spikes can reach two to three times the system pressure. A check valve isolates the pump casing from these damaging waves, preventing housing fractures.
Anti-Cavitation: In systems where the pump is located above the reservoir, gravity tries to drain the suction line when the pump stops. A check valve keeps the line primed with fluid, preventing dry starts and the destructive air-lock that follows.
Parallel Pump Protection: In multi-pump configurations, one pump often operates while another sits in standby. Without isolation, the high-pressure output from the running pump would back-drive the offline pump, spinning it in reverse and destroying it.
Check valves also function as pressure-sensing logic elements in cooler bypass circuits. Hydraulic oil becomes highly viscous when cold. If you force thick, cold oil through a delicate heat exchanger, the back pressure can rupture the core.
Engineers solve this by installing a check valve in parallel with the cooler. This valve is specified with a high cracking pressure, typically 65 PSI or higher. During a cold start, the resistance in the cooler exceeds 65 PSI, forcing the check valve open. The oil bypasses the cooler, protecting it from damage. As the oil warms and thins, pressure drops, the check valve closes, and flow resumes through the cooler.
Not all check valves handle stress equally. While the function remains the same, the internal mechanics dictate the valve's lifespan and suitability for high-pressure applications. The Lift Check Valve is frequently the engineer's choice for rigorous industrial circuits.

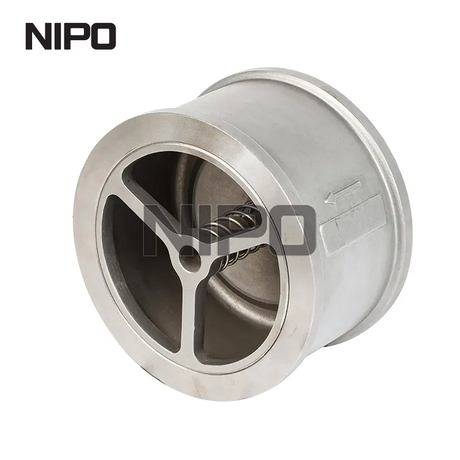

A lift check valve operates on a linear axis. It features a guided disc or piston that "lifts" vertically off the seat when inlet pressure overcomes gravity and spring force. The key engineering advantage here is the guide. Unlike a floating ball, the piston in a lift check valve moves in a controlled, straight line.
This mechanism makes it the best use case for high-pressure, high-velocity lines. In systems with rapid flow changes, turbulence can cause a floating ball to spin and rattle, damaging the seat. The guided piston of a lift check valve resists this turbulence, reseating precisely every time.

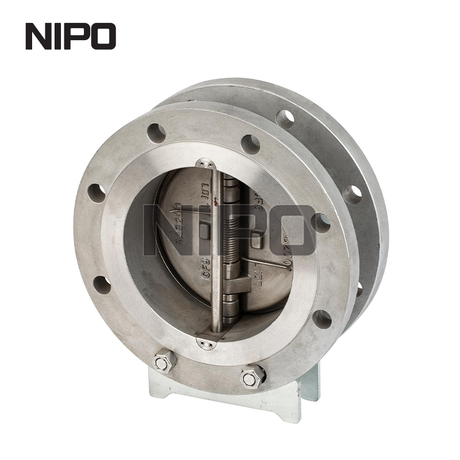

To select the right component, you must compare the mechanical attributes of the three common designs. The table below outlines why a lift check valve often outperforms simpler alternatives in heavy-duty scenarios.
| Feature | Lift Check Valve | Ball Check Valve | Swing Check Valve |
|---|---|---|---|
| Mechanism | Guided piston/disc lifts vertically. | Floating ball moves off seat. | Hinged disc swings open. |
| Durability | High: Guided movement prevents wear. | Medium: Ball can spin/chatter. | Low/Medium: Hinge pins wear out. |
| Pressure Drop | Medium (Higher cracking pressure possible). | Medium. | Low (Full flow path). |
| Response Time | Fast (Short travel distance). | Fast. | Slow (Longer travel). |
| Best Application | High-pressure, vertical, severe duty. | General low-pressure isolation. | Low-pressure, high-volume flow. |
Orientation is a critical constraint for lift check valves. Because the mechanism often relies partially on gravity to reseat the piston, many designs are strictly "flow-up" vertical installations. Installing a gravity-dependent lift check valve horizontally can lead to failure, as the piston may not center itself on the seat, causing leaks. However, spring-assisted models are available that allow for horizontal mounting. Always verify the installation diagram provided by the manufacturer to ensure the reseal pressure is met.
Selecting a Lift Check Valve involves more than matching port sizes. You must align the valve's internal specifications with your system's dynamics to prevent overheating and instability.
Cracking pressure is the minimum upstream pressure required to unseat the poppet and allow flow to start. It is a subtle specification that causes major headaches if ignored. If the cracking pressure is too high, the system wastes energy pushing the valve open, converting that energy directly into heat.
Follow this general selection rule:
Standard Flow: Use a low cracking pressure (1–5 PSI). The goal is to allow flow with minimal resistance to keep the system cool.
Bypass/Pilot Logic: Use a high cracking pressure (50–100 PSI). In these cases, the valve acts as a pressure switch, only opening when specific conditions (like a clogged filter or cold oil) are met.
The flow coefficient (Cv) determines how much fluid can pass through the valve with a specific pressure drop. Undersizing a check valve creates a bottleneck. This restriction increases fluid velocity, generating excessive heat and turbulence that can erode the valve seat. Conversely, oversizing can be just as dangerous. If the flow rate is too low for a large valve, the poppet may not lift fully. It will hover near the seat, slamming open and closed rapidly. This phenomenon, known as chatter, destroys the valve quickly.
The physical construction must match the environment. For the body, carbon steel is standard for oil-based hydraulics, but stainless steel is required for corrosive environments or water-glycol fluids. Seal compatibility is equally vital. Viton seals are preferred for high-temperature applications, while Buna-N is standard for general mineral oils. Using the wrong seal material with phosphate esters or fire-resistant fluids will cause the seals to swell and lock the valve.
Beyond the standard Lift Check Valve, hydraulic systems rely on specialized configurations to handle complex logic and safety requirements.
A standard check valve is strictly one-way. A pilot-operated (PO) check valve, however, allows reverse flow when commanded. It features a pilot port connected to a separate pressure line. When pressure is applied to this pilot port, a piston pushes the check valve poppet open, allowing fluid to flow backward.
This component is essential for double-acting cylinders that must hold a load in position (like a stabilizer leg) but also retract when the job is done. The PO check locks the fluid in the cylinder until the operator actuates the retraction lever, sending a pilot signal to unlock the valve.
Safety regulations often mandate the use of line rupture valves, also known as velocity fuses. These are specialized check valves that remain open during normal operation. They are designed to close only when flow velocity exceeds a specific limit, such as when a hydraulic hose bursts. If a hose fails on a lifting platform, the sudden rush of fluid triggers the valve to snap shut immediately, preventing the load from free-falling.
Shuttle valves act as "OR" logic gates in hydraulic circuits. They have two inlet ports and one outlet. A floating piston or ball inside the valve moves to block the lower pressure inlet, allowing the higher pressure fluid to pass to the outlet. These are frequently used in load-sensing circuits to communicate the highest load pressure back to the pump controller.
The difference between a reliable system and a maintenance nightmare often comes down to procurement and installation. When selecting a Lift Check Valve manufacturer, you must look beyond the catalog price.
Quality assurance is paramount for high-pressure components. You should verify the testing standards used by the manufacturer. Do they perform 100% leak testing according to standards like ISO 5208, or do they rely on statistical batch testing? For critical safety applications, batch testing is often insufficient.
Traceability is another key factor. A reputable manufacturer can provide Mill Test Reports (MTRs) for the valve body materials. This certification proves that the steel meets the required pressure and temperature ratings. Furthermore, look for customization capabilities. Generic catalog options may not offer the specific spring rate you need for a thermal bypass circuit. A manufacturer capable of tuning spring rates ensures your system operates exactly as designed.
Even the best valves fail if installed incorrectly. One of the most common issues is valve chatter. This is usually caused by oversizing the valve or having insufficient flow to keep it fully open. If you hear a buzzing or hammering sound, investigate the flow rate. The solution may involve changing the spring rate or downsizing the valve to ensure the poppet lifts firmly against the stop.
Filtration is also non-negotiable. Because check valves rely on a metal-to-metal or precise soft seal, a single particle of contamination can prevent full closure. This breaks the "zero leakage" guarantee and allows drift. Finally, always double-check orientation. While some lift valves are versatile, many are designed specifically for vertical flow. Installing them horizontally without spring assistance will lead to immediate operational failure.
Check valves act as the guardians of hydraulic health. They balance the simple need for directional control with the critical task of pump protection and load holding. While ball check valves may suffice for general, low-pressure isolation, they often lack the robustness required for severe industrial cycles.
For high-pressure lines, vertical installations, or systems prone to shock, the Lift Check Valve is the non-negotiable engineering choice. Its guided mechanism offers superior durability and precise reseating, significantly lowering the Total Cost of Ownership (TCO) by reducing downtime and component replacement. Before you procure your next valve, calculate the expected pressure drop and flow velocity. Selecting the right component now prevents catastrophic failure later.
A: The primary difference lies in the movement mechanism. A Swing Check Valve uses a hinged disc that swings open, which is suitable for lower pressures and general flow. A Lift Check Valve uses a guided piston or disc that lifts vertically off the seat. This vertical lift mechanism allows the valve to handle much higher pressures, rapid cycling, and turbulence without the wear issues associated with hinge pins or spinning balls.
A: If the cracking pressure is selected too high for a standard flow line, the system must work harder to push the valve open. This wasted energy is converted directly into heat, which raises the hydraulic fluid temperature. Excessive heat reduces the fluid's viscosity, degrades seals, and lowers the overall efficiency of the hydraulic system.
A: It depends on the specific design. Traditional lift check valves rely on gravity to reseat the piston and are strictly for vertical, flow-up installation. However, many modern lift check valves are equipped with springs that force the piston back to the seat. These spring-assisted models can often be installed horizontally. You must always check the Lift Check Valve manufacturer specifications to confirm.
A: A hammering or buzzing noise usually indicates "chatter." This happens when the valve is oversized for the flow rate, causing the poppet to rapidly open and close because there isn't enough flow to hold it fully open. It can also be caused by "Water Hammer," where rapid flow reversals create shock waves. Adjusting the viscosity or changing to a valve with a different spring rate can solve this.
A: No. A check valve is a binary device; it is either fully open or fully closed (on/off). A counterbalance valve is a pressure-control device that provides modulated resistance. Counterbalance valves are used to control over-running loads (like a crane lowering a weight) smoothly, preventing the load from accelerating faster than the pump can supply oil.
