Uncontrolled backflow is the silent killer of industrial piping systems. While often treated as a minor plumbing detail, the failure to manage flow direction carries a massive hidden cost: destroyed pumps, cross-contaminated product batches, and unplanned facility downtime. In the world of fluid dynamics, the check valve is not merely a "one-way gate." It is an automatic, media-actuated safety device designed to react faster than any human operator or electronic sensor.
For engineers and plant managers, understanding the true purpose of this device goes beyond basic flow control. It involves selecting the right mechanism for the pressure profile. While swing valves handle general water transport, the Lift Check Valve stands as the high-durability standard for severe service applications involving steam, gas, or high-pressure liquids. This guide explores the engineering mechanics behind asset protection, distinguishes between lift and swing designs, and outlines the ROI-driven criteria for specifying the correct valve for your system.
Asset Defense is Primary: The main purpose is protecting expensive upstream equipment (pumps/compressors) from reverse rotation and water hammer.
Design Dictates Lifespan: Lift Check Valves offer superior sealing in high-pressure/temperature cycles compared to swing variants.
TCO Over Initial Price: Cheap valves often fail due to "chatter" and wear; proper sizing (calculating Cracking Pressure and Cv) prevents premature replacement.
Compliance Matters: Modern valves play a role in fugitive emission control and process purity in regulated industries.
Most procurement teams view check valves as passive commodities. However, in process engineering, they perform three active functions that directly impact the longevity of the entire plant. Understanding these roles helps justify the investment in higher-grade components.
The primary mandate of a check valve is the defense of upstream moving equipment. When a pump shuts down—whether for maintenance or due to a power trip—gravity and system pressure immediately force the fluid in the discharge line to reverse direction. Without a functioning check valve, this backflow forces the pump impeller to spin backward.
Reverse rotation is catastrophic for centrifugal pumps and compressors. It runs mechanical seals dry, destroys bearings not rated for reverse torque, and can loosen threaded impellers. If the motor restarts while the pump is spinning backward, the resulting torque shock can snap shafts. A properly specified Lift Check Valve is preferred for these high-cycle pump outlets. Its piston-style seating absorbs the closing force robustly, ensuring the pump remains stationary during idle periods.
Water hammer is the destructive shockwave generated when a fluid in motion is forced to stop or change direction suddenly. In piping systems, this manifests as a loud bang and vibration that can rupture pipes or crack flanges. While check valves are often the cause of water hammer if they slam shut, they are also the solution when designed correctly.

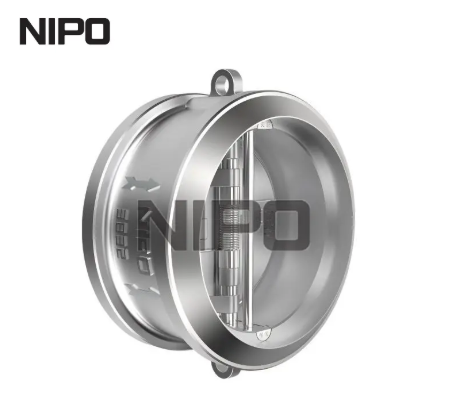

The goal is to decouple the fluid column safely. Gravity-dependent swing checks often slam because they wait for flow reversal to close. By contrast, spring-assisted designs, common in lift and nozzle checks, use stored energy to initiate closing as soon as flow velocity slows to zero—before reverse flow begins. This dampens the kinetic energy and prevents the pressure spike associated with hydraulic shock.
In chemical and refining industries, the check valve serves as the guardian of process purity. Systems handling multiple media types—such as fuel and oxidizers, or treated water and raw sewage—rely on these valves to prevent cross-contamination. If media A backflows into the storage tank of media B, the resulting mixture can lead to spoiled product, exothermic reactions, or explosions.
Furthermore, environmental compliance standards (EPA/ISO) now scrutinize fugitive emissions. A valve that fails to reseal tightly allows gas to leak into lower-pressure zones or the atmosphere. High-performance check valves are engineered with precise reseal pressures to ensure that once the valve closes, it acts as a bubble-tight isolation barrier, maintaining compliance with strict environmental regulations.
Not all check valves are created equal. While the swing check valve is the "workhorse" of water distribution, the lift check valve is the precision instrument for energy and process industries. Understanding its internal geometry reveals why it survives conditions that destroy other valve types.

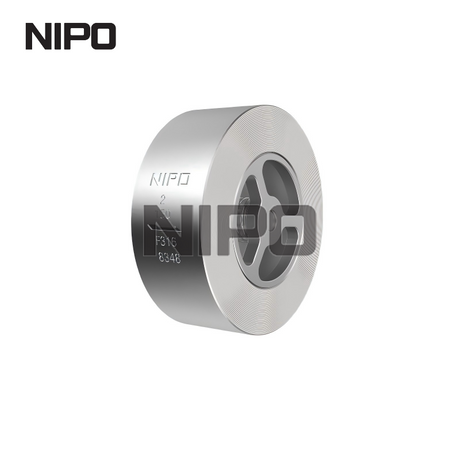

The lift check valve resembles a globe valve in body structure. The flow enters below the seat and pushes a piston (or disc) upward, "lifting" it to open the path. The fluid then flows through the valve body and exits above the seat. This tortuous flow path creates turbulence but offers immense structural advantages.
The actuation logic relies on a balance of forces. The upstream flow velocity provides the lifting force. To re-seat, the valve relies on gravity or a helper spring. The disc travels vertically within a guided bore. This guidance is critical; it prevents the disc from cocking or tilting, ensuring it lands squarely on the seat every time, even under high-pressure differentials.
Selecting between these two dominant designs requires analyzing pressure, media, and maintenance cycles. The following comparison highlights where each design excels.
| Feature | Swing Check Valve | Lift Check Valve |
|---|---|---|
| Flow Path | Straight-through (Full port) | Tortuous (S-shape/Globe style) |
| Pressure Drop | Low (High efficiency) | High (Significant turbulence) |
| Sealing Capability | Moderate (Prone to leakage at low back pressure) | Excellent (High pressure assists sealing) |
| Durability | Moderate (Hinge pin wear is common) | High (Guided piston eliminates side-thrust) |
| Ideal Application | General water, sewage, large bore pipelines | Steam, high-pressure gas, pump outlets |
Manufacturers often recommend lift styles for steam service because swing checks have moving parts (hinge pins) that are susceptible to wear and corrosion in high-velocity steam. The lift check, with its robust guided piston, eliminates the hinge weak point entirely.
Physics dictates installation. Because the piston in a standard lift check valve falls back onto the seat via gravity, these valves typically require horizontal installation. The bonnet must face upward so gravity can do its work. Vertical installation is only possible if the flow is upward and the valve is equipped with a spring to assist closing. Installing a gravity-based lift check in a vertical down-flow line will result in the valve staying open permanently, rendering it useless.
A common engineering error is sizing the check valve to match the line size. This frequently leads to oversizing, chatter, and failure. To specify a valve that lasts, you must calculate the hydraulic requirements.
Cracking pressure is the minimum upstream pressure required to lift the disc off the seat and allow the first trickle of flow. The governing formula is:
Inlet Pressure > (Back Pressure + Spring Force)
You must balance this carefully. If you select a spring that is too stiff, you introduce unnecessary pressure loss (head loss) to the system, forcing pumps to work harder. Conversely, if the spring is too weak for the application, the valve may not close quickly enough to prevent water hammer. The spring force must be just enough to overcome the weight of the piston and friction.
The flow coefficient (Cv) measures the valve's efficiency. It represents the number of gallons of water per minute that will flow through the valve with a 1 PSI pressure drop. Lift check valves inherently have a lower Cv than swing valves due to their internal S-shaped design.
The decision rule here is durability versus energy cost. If you are moving low-pressure wastewater, the energy cost of a high pressure drop is unacceptable; use a swing check. However, if the application involves high-pressure steam or gas, the energy cost is negligible compared to the risk of valve failure. In these severe services, the durability of the Lift style outweighs the efficiency loss.
The interface between the disc and the body seat determines the leak rate. For high-temperature applications like steam headers, metal-to-metal seating is the standard. It withstands extreme heat but may allow a minute leakage rate (allowable per API standards). For gas applications requiring a bubble-tight shutoff, a soft seat (elastomer or PTFE) is inserted into the disc. This provides a perfect seal but limits the temperature range of the valve.
The market is flooded with generic valves that look identical on the outside but perform drastically differently under pressure. When sourcing components for critical infrastructure, vetting the Lift Check Valve manufacturer is as important as the specification itself.
High-quality valves adhere to specific industrial standards. For forged steel lift checks, look for compliance with API 602 (Compact Steel Gate, Globe, and Check Valves) or ASME B16.34 (Valves - Flanged, Threaded, and Welding End). These standards dictate wall thickness, pressure-temperature ratings, and testing protocols.
Generic valves often fail because they lack precise machining on the piston guide. If the clearance between the piston and the body guide is too tight, the valve sticks open. If it is too loose, the piston wobbles, causing side-wear and eventual leakage. A reputable Lift Check Valve manufacturer controls these tolerances to the micrometer.
For sectors like Oil & Gas, Power Generation, and Marine, material traceability is non-negotiable. Ensure the manufacturer can provide Mill Test Reports (MTRs) for the valve body and trim materials. This document proves that the steel used meets the chemical and mechanical properties required by the ASTM specification. Without an MTR, you cannot verify if the valve will survive a pressure spike or if it was cast from inferior scrap metal.
Finally, evaluate the total cost of ownership (TCO) through the lens of maintenance. Does the design offer an accessible bolted bonnet? This feature allows maintenance crews to open the valve inline, inspect the seat, and lap (polish) the surfaces without cutting the valve out of the pipe. Some manufacturers also offer renewable seat rings, meaning you can replace just the damaged sealing surface rather than scrapping the entire valve body.
Even the most expensive lift check valve will fail if installed in a turbulent zone. The physical placement of the device dictates its ability to stabilize flow.
Ideally, flow entering a check valve should be laminar (smooth). Turbulence causes the disc to rattle, a phenomenon known as chatter. To prevent this, engineers follow the "5D Rule." You should never install a check valve immediately downstream of an elbow, tee, or pump discharge. Always ensure there is a straight run of pipe equal to at least 5 times the pipe diameter upstream of the valve. This distance allows turbulent eddies to settle into laminar flow before entering the valve body.
Oversizing is a frequent failure mode. Engineers often assume a 4-inch pipe needs a 4-inch valve. However, if the normal flow rate is low, it may not generate enough lift to push the piston fully against the open stop. Instead, the piston hovers in the middle, bouncing up and down in the flow stream. This oscillation destroys the seating surfaces and the piston guide. Always size the valve based on the flow coefficient (Cv) ensuring the disc is fully open during normal operation, even if that means reducing the valve size relative to the pipe.
It bears repeating: orientation is critical. Standard lift check valves rely on gravity to reseat. If you install a gravity-dependent valve in a vertical line with downward flow, it will never close. If you install it sideways on a vertical line, the piston will drag against the guide, causing friction and jamming. Always verify the manufacturer's installation manual regarding permitted orientations.
While check valves are passive devices, their role in preventing catastrophic equipment failure is active and critical. They are the primary defense against reverse rotation in pumps, the dampeners of water hammer, and the guardians of process purity. Treating them as generic commodities invites risk.
For general water transport, simple swing checks may suffice. However, for high-pressure systems, steam lines, or critical pump protection, the Lift Check Valve is the requisite engineering choice. Its robust, guided-piston design offers the durability needed to withstand severe service cycles where other valves fail. We encourage you to audit your current piping systems for symptoms of "valve chatter" or water hammer. If these signs are present, consult a specialized Lift Check Valve manufacturer for high-performance replacements that prioritize asset protection and long-term reliability.
A: The difference lies in the mechanism and application. A swing check valve uses a hinged gate that swings open, making it ideal for low-pressure, general water applications with minimal flow restriction. A lift check valve uses a piston or disc that lifts vertically off the seat. This design creates a tighter seal and is far more durable, making it the standard for high-pressure, steam, and severe service environments where robust seating is required.
A: Yes, it creates a higher pressure drop compared to full-bore swing valves. The internal design of a lift check valve forces the fluid to change direction (similar to a globe valve) and pass through a restricted seat area. This turbulence creates resistance. However, in high-pressure gas or steam systems, this efficiency loss is a calculated trade-off accepted in exchange for the valve's superior durability and sealing capability.
A: It depends on the design and flow direction. Standard lift check valves rely on gravity to close, so they are best suited for horizontal lines. They can be installed in vertical lines only if the flow is upward and the valve is equipped with a spring to assist closing. They cannot be used in vertical lines with downward flow, as gravity would keep the valve open.
A: Chatter is the rapid opening and closing of the valve disc, causing a loud rattling noise and rapid wear. It is typically caused by oversizing the valve or insufficient flow velocity. If the flow isn't strong enough to hold the disc fully open against the stop, the disc hovers and bounces in the stream. Turbulence from installing the valve too close to a pump or elbow can also cause chatter.
A: No. A check valve is a process control device used to protect equipment and direct flow within a system. A backflow preventer (like an RPZ assembly) is a certified safety device used specifically in potable water systems to prevent contamination from entering the public water supply. Backflow preventers have redundant checks and relief valves and undergo rigorous testing that standard process check valves do not.
