Piping terminology often confuses even experienced professionals. Engineers and procurement teams frequently evaluate valves looking externally similar. Yet, these components serve entirely distinct functions in fluid control. Is a standard Globe Valve a Non-Return Valve (NRV)? The definitive answer is no.
A globe valve regulates flow actively. You use it to throttle fluids or isolate pipeline sections manually or via actuators. In contrast, an NRV acts as an automatic, directional safeguard. It relies strictly on system pressure to prevent backflow. Treating them as interchangeable components introduces massive operational hazards.
Choosing the wrong valve risks catastrophic water hammer, system inefficiencies, or rapid mechanical failure. We will explore the critical mechanical differences between these two valves. You will learn a structured evaluation framework to specify the exact right component based on system risks, pressure demands, and total cost of ownership.
Distinct Core Functions: Globe valves control and throttle flow via an external actuator/handwheel; NRVs automatically prevent backflow using system pressure differentials.
Operational Mechanics: Globe valves can technically allow bi-directional flow when open (though optimized for specific flow paths), while NRVs strictly enforce one-way flow.
The Hybrid Exception: "Stop-check valves" exist as a specialized hybrid, combining a globe valve's isolation capability with an NRV's backflow prevention.
Sourcing Imperative: Selecting a qualified globe valve manufacturer requires evaluating material certifications (e.g., ASTM A-216), pressure test compliance, and exact sizing to mitigate long-term maintenance costs.
Incorrect valve specification presents a serious business problem. When you install the wrong valve type, pipelines suffer. Systems experience severe pressure drops, inefficient pumping, and potential cross-contamination. Worse, sudden fluid reversal can cause catastrophic water hammer. This phenomenon shatters pipes and destroys expensive downstream equipment. To avoid these failures, you must understand the core profile of each device.

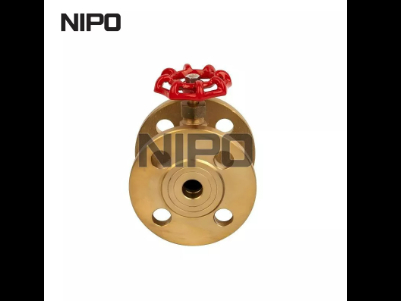

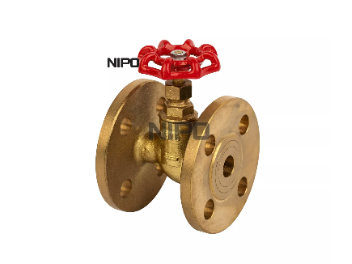

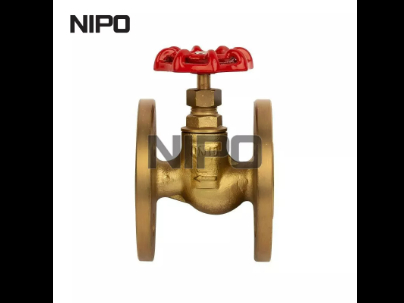

You should view this valve primarily as an isolation and regulation device. It excels at throttling. Operators rely on it when they need precise flow modulation. To change its state, it requires external intervention. You must turn a manual handwheel or use a pneumatic or electric actuator.
Precise Modulation: It offers excellent linear flow characteristics. This makes it ideal for cooling water systems or fuel oil regulation.
External Actuation: It does not react automatically to fluid pressure changes. You maintain complete control over its position.
High Pressure Drop: The internal fluid path changes direction multiple times. This tortuous route guarantees a higher pressure drop compared to other designs.
An NRV serves entirely different operational goals. You install it as a primary system protection device. It prevents dangerous cross-contamination and blocks backflow. Unlike devices requiring external power, an NRV operates autonomously.
Autonomous Operation: It opens when upstream pressure exceeds downstream pressure. It closes instantly when that pressure drops or reverses.
No External Control: You cannot attach a handwheel or an actuator to a standard NRV. It reacts strictly to internal fluid dynamics.
Design Variants: Common variants include swing, lift, and dual-plate designs. Each adapts to specific installation spaces and fluid velocities.
To evaluate these components properly, we must look inside the valve body. Features dictate outcomes. The internal geometry directly influences sealing capabilities, closing speeds, and long-term wear.
Globe valves utilize a stem and a plug (or disk). This disk moves perpendicular to the stationary seat. When fluid enters the body, it must turn 90 degrees to pass through the seat, then turn again to exit. This tortuous flow path restricts fluid momentum. However, this same perpendicular movement creates an incredibly tight, reliable seal.
Closing speed creates another sharp contrast. Globe valves close relatively slowly. The stem must travel a significant vertical distance. You have to turn a handwheel multiple rotations to fully seat the plug. Because of this slow operation, they remain completely unsuitable for rapid-response backflow prevention.
NRVs function differently. They close almost instantly. The moment pressure equalizes or reverses, a spring or gravity forces the flapper or poppet onto the seat. This instantaneous closure stops backflow before it gains destructive momentum.
Every engineering choice carries a friction and wear trade-off. Globe valves handle throttling brilliantly. They experience minimal seat wear during partial-open states. If you tried to throttle fluid using a standard gate valve, the high-velocity fluid would rattle the internal disk, causing severe damage. A globe design resists this degradation perfectly. It proves highly durable for flow control applications.
NRVs face distinct mechanical vulnerabilities. They are highly susceptible to "chatter." If you oversize an NRV for your system's flow velocity, the fluid will not generate enough force to keep the internal plate fully open. The disk will bounce rapidly against the seat. This constant chattering leads to rapid mechanical degradation and premature failure.
Performance and Mechanical Comparison Chart
Evaluation Criteria | Globe Valve | Non-Return Valve (NRV) |
|---|---|---|
Primary Function | Active isolation and flow throttling. | Passive backflow prevention. |
Actuation Method | Manual handwheel, pneumatic, or electric actuator. | Automatic (driven by fluid pressure differential). |
Flow Resistance (Pressure Drop) | High (due to tortuous internal S-shaped path). | Low to moderate (depending on swing vs. lift type). |
Closing Speed | Slow (requires multi-turn stem travel). | Instantaneous (closes upon pressure reversal). |
Wear Resistance | High resistance to throttling wear. | Vulnerable to chatter if improperly sized. |
Engineering rarely exists in absolute black and white. While we strictly separate active regulation from passive protection, specific industrial scenarios demand both. What happens when your piping footprint allows only one component, but safety codes mandate both isolation and backflow prevention? You use a stop-check valve.
A stop-check valve resolves this overlapping functionality. It utilizes a heavy-duty globe valve body. However, the internal mechanics feature a crucial modification. The stem and the disk are disconnected. They are not mechanically fastened together.
This clever design logic creates a highly versatile component. It operates differently depending on the stem position:
Manual Isolation State: You rotate the handwheel to lower the stem. The stem pushes physically against the disconnected disk, forcing it tightly against the seat. The line is now securely isolated, exactly like a standard globe design.
Automatic NRV State: You rotate the handwheel to raise the stem fully. The disk is now free to move vertically. Upstream fluid pressure lifts the disk, allowing flow. If downstream pressure spikes, the fluid pushes the disk down against the seat. It functions perfectly as an automatic lift-type NRV.
You do not use stop-check valves everywhere. They serve highly specific applications. Engineers primarily specify them in boiler feed systems and critical steam line manifolds. In multiple-boiler setups, steam from a high-pressure boiler might backflow into a lower-pressure unit. A stop-check valve prevents this automatically while allowing maintenance teams to mechanically lock out the line during servicing.
Specifying the right equipment solves only half the problem. Installation errors routinely destroy excellent equipment. Both valve types carry strict engineering constraints regarding physical orientation and pipeline diagrams.
Fluid dynamics dictate strict installation orientations. You cannot bolt these components into a flange blindly.
Globe valves demand specific flow paths depending on their physical size:
Small Diameters (<DN50): Engineers typically specify "flow under the seat." Fluid enters from a low point and exits high. This keeps high-pressure fluid away from the vulnerable stem packing when the valve is closed, extending seal life.
Large Diameters (>DN200): Engineers often specify "flow over the seat." In massive pipes, the fluid pressure pushing upward against a large disk creates immense resistance. Flowing over the disk utilizes the fluid pressure to help push the disk closed. This drastically reduces the actuator torque required to operate it.
NRVs present an even steeper risk curve. They require irreversible one-way installation. Every NRV body features a prominent cast arrow. If a contractor installs an NRV backward, it completely blocks system flow. This causes immediate operational failure, dead-heads expensive centrifugal pumps, and halts production instantly.
Procurement errors often originate in the drafting room. Engineers and buyers must read Piping and Instrumentation Diagrams (P&ID) correctly. Misinterpreting a symbol leads to buying the wrong valve.
An NRV symbol strictly features a directional arrow and a vertical blocker line. It clearly indicates one-way traffic. Conversely, a standard globe symbol looks like two triangles pointing at each other (a bow-tie) with a dark dot in the center. Recognizing these visual distinctions prevents costly procurement mistakes before purchase orders are signed.
Evaluating fluid control components extends beyond mere technical specifications. You must analyze the commercial impact. The Total Cost of Ownership (TCO) determines true engineering success. Upfront unit cost matters far less than lifecycle replacement frequency.
Globe valves represent a higher initial capital expenditure than simple swing NRVs. They require complex internal casting. Machining the internal tortuous path and the precision stem threads demands high-end manufacturing.
However, cutting costs upfront damages your ROI. Poorly machined internal tolerances lead to immediate downstream leaks. Substandard internal finishes exaggerate pressure drops. This forces your pumps to work harder, dramatically increasing facility electricity costs over a decade of operation.
You must scrutinize potential vendors rigorously. A reliable manufacturing partner provides verifiable data, not just marketing claims. Use these three pillars to evaluate your suppliers:
Material Traceability: Ensure the manufacturer utilizes standardized raw materials and provides mill test certificates. For high-pressure carbon steel bodies, look for ASTM A-216 Gr. WCB. For internal trim, demand 13% Chrome for hard-faced internals to resist throttling wear.
Compliance & Testing: Look for verifiable hydraulic test pressure ratings. Reliable factories test according to strict API or DIN standards. For a Class 150 or Class 300 valve, body test pressure limits should comfortably exceed the stated seat limits. This guarantees casting integrity.
Engineering Support: A superior vendor does not just sell off-the-shelf metal blocks. They assist in sizing the Cv (flow coefficient). They help you match internal dimensions to your exact pipeline parameters to minimize pressure drops and prevent cavitation.
Understanding piping terminology prevents disastrous engineering decisions. A globe valve and an NRV solve completely different fluid control problems. You use the former for active flow regulation and reliable isolation. You deploy the latter for passive, automatic protection against backflow. Attempting to swap their roles compromises system safety and efficiency.
Before moving forward, take action to secure your pipelines. Audit your specific P&ID requirements thoroughly. Identify exactly where you need precise throttling and where you need rapid back-flow prevention. Once your operational needs are verified, evaluate your suppliers based on material traceability and pressure testing compliance before finalizing any technical specifications or requesting quotes.
A: Yes. "Check valve" is standard US terminology, while "Non-Return Valve (NRV)" is the equivalent European and International terminology. They are identical in function, serving as automatic devices that permit fluid to flow in only one direction while preventing backflow.
A: Yes, if you need to throttle flow. Gate valves should only be used for on/off isolation; using them for regulation causes severe vibration and valve damage. However, keep in mind globe valves will introduce a significantly higher pressure drop into your system.
A: Only if they are manually or automatically actuated to a fully closed position, or if specifically designed as a "stop-check valve." A standard open globe design will allow fluid to flow backward freely if the downstream pressure ever exceeds the upstream pressure.
