Industrial facilities face a constant tension between managing capital expenditure (CAPEX) and guaranteeing long-term process stability. You want to keep initial pipeline costs low. Yet, an underspecified control element can trigger catastrophic downtime later. Engineers often wrestle over a core dilemma during plant design. Do you select the compact, cost-effective rotary valve? Or do you invest in the high-precision, heavy-duty throttling capabilities of a linear globe valve? This choice rarely involves a simple price check.
This article moves beyond basic component definitions. We will explore critical liquid pressure recovery factors (FL) and total cost of ownership (TCO) variables. We also examine realistic performance metrics to guide your final specification. You will learn how to match physical constraints to fluid dynamic requirements. By the end, you can confidently specify the right flow control technology for your system without overspending or risking operational failure.
Control vs. Capacity: A globe valve delivers superior precision and stability for micro-flow throttling, while rotary valves prioritize high flow capacity and rapid actuation.
Pressure & Cavitation: Globe valves inherently possess higher Liquid Pressure Recovery Factors (FL), making them the mandatory choice for high-pressure drop applications prone to cavitation.
Footprint & Emissions: Rotary valves offer significant weight reductions and simplified stem packing, lowering the risk of fugitive emissions in standard applications.
Maintenance Realities: The top-entry design of a globe valve allows for in-line trim replacement, offsetting its higher initial cost by reducing long-term maintenance downtime.
To make an informed engineering decision, you must understand the underlying mechanics. Every control element manipulates fluid differently. These physical differences dictate how a system responds to changes in flow demand.
Rotary architectures operate through a simple 90-degree rotation of the closing element. This element might be a ball, a plug, or a butterfly disc. Manufacturers design these units to keep the fluid path relatively unobstructed when fully open. Because the internal geometry presents minimal resistance, they offer massive flow capacities. You get a straight-through flow path. This straight path translates into high operational efficiency for large-volume fluid transfers.

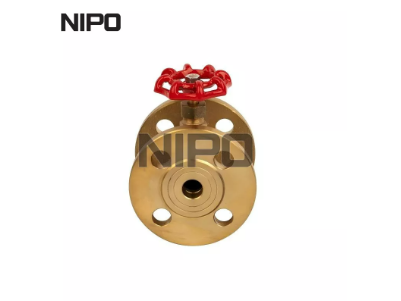

In contrast, linear architectures use a sliding-stem mechanism. A Globe Valve operates by pushing a plug linearly against a machined seat. This internal geometry forces the fluid to change direction multiple times within the body. While this multi-turn fluid path creates a natural pressure drop, it provides unmatched control over the media. You can throttle the flow precisely because the linear movement correlates directly to the open area of the seat.
The mechanical differences directly influence your actuator selection.
Rotary Actuation: Rotary styles easily adapt to compact, double-acting pneumatic actuators. They require torque rather than linear thrust. This keeps the overall assembly small and lightweight.
Linear Actuation: Sliding-stem mechanisms typically require larger, taller linear actuators. They must manage high thrust requirements to overcome process fluid pressure pushing against the plug.
Power Consumption: High thrust demands often mean your plant must supply larger air volumes or higher electrical power to stroke a linear actuator under heavy loads.
Many process systems require meticulous flow modulation. A slight deviation in flow can ruin a chemical batch or overheat an industrial engine. You must look past theoretical marketing claims to understand true flow precision.
Rangeability measures the ratio of maximum to minimum controllable flow. Valve vendors often promote high rotary rangeability. They might claim a segmented V-port ball delivers a 300:1 ratio. Real-world engineering tells a different story. Dynamic fluid forces and static friction (often called "stiction") heavily influence moving parts. Once installed, stiction often limits realistic rotary control to 100:1. The breakout friction required to move a seated ball makes micro-adjustments nearly impossible. You risk overshooting your setpoint.
Sliding-stem architectures excel at precise modulation. A globe body provides access to specialized, interchangeable trims. You can select micro Cv (flow coefficient) trims tailored for minute adjustments. This allows for exact flow shaping. You can specify linear or equal percentage flow characteristics. Rotary designs simply cannot match this level of custom flow shaping. When you need to control a trickling acid injection, the sliding-stem mechanism remains the undeniable standard.
Engineers must consider the installed gain. System piping introduces permanent pressure losses. These losses alter valve behavior dynamically. A valve exhibiting a perfect equal-percentage curve on a test bench will shift toward a linear curve once installed in a real piping network. Sliding-stem valves maintain a much more stable installed gain across their full stroke. They handle systemic pressure shifts smoothly. This stability prevents control loop hunting and reduces wear on the positioner.
Best Practices for Flow Precision:
Calculate the true installed characteristic before purchasing.
Do not rely on inherent test-bench rangeability metrics.
Select micro-trim options when dealing with ultra-low flow conditions.
High pressure drops tear industrial piping apart. When pressure drops too quickly, liquids vaporize and then violently collapse. We call this phenomenon cavitation. It sounds like gravel moving through your pipes. It destroys metal components in weeks.
You manage high pressure drops by looking at the Liquid Pressure Recovery Factor (FL). This critical engineering metric indicates how much pressure recovers after the fluid passes the restriction.
Valve Type | Typical FL Value | Pressure Recovery |
|---|---|---|
Linear Globe (V-Port) | 0.85 - 0.95 | Low Recovery (Safe) |
Eccentric Rotary Plug | 0.70 - 0.80 | Moderate Recovery |
High-Performance Butterfly | 0.55 - 0.65 | High Recovery (Risky) |
Standard Ball | 0.50 - 0.60 | High Recovery (Very Risky) |
Globe valves inherently possess high FL values. Their complex internal tortuous paths suppress downstream pressure recovery. Because the pressure stays low immediately downstream, the liquid does not drop below its vapor pressure. This effectively eliminates cavitation. It also prevents massive noise generation. For severe service applications, manufacturers can stack specialized anti-cavitation cages inside the linear body to break the pressure drop into smaller, safe stages.
Rotary units have a straight-through flow path. This results in incredibly low FL values. The fluid accelerates quickly, drops in pressure, and recovers abruptly. This makes them highly susceptible to cavitation and flashing when subjected to steep pressure drops.
Common Mistake: Sizing a butterfly valve purely based on pipe diameter for a high-pressure letdown station. The rapid pressure recovery will inevitably cause severe flashing, destroying the downstream pipe walls.
Physical plant layout dictates much of your engineering specification. You must balance the physical size of the asset against environmental compliance and structural integrity.
Compare the physical footprint directly. Space carries a high premium on offshore platforms and crowded petrochemical skids. A large-diameter rotary unit can weigh 80% less than an equivalent sliding-stem unit. For example, an 8-inch high-performance butterfly valve requires a fraction of the installation space compared to an 8-inch linear body. This weight reduction drastically reduces pipeline support engineering. It also cuts installation labor time. You avoid renting heavy-duty cranes for routine installations.
Modern environmental regulations penalize facilities for volatile organic compound (VOC) leaks. Fugitive emissions usually escape through the stem packing. Rotary stem movement spins in place. It merely rotates against the packing seal. This sweeping motion is inherently less destructive to stem packing. Conversely, linear movement constantly pulls process fluid and abrasive debris up through the seal. Sliding-stem units often require expensive bellows seals to meet strict emissions standards. Quarter-turn designs naturally excel at keeping hazardous media inside the pipe.
Heavy, tall actuators required for linear valves raise the center of gravity. This creates an awkward, top-heavy profile. In specific industrial environments like engine testing lines or heavy compressor stations, background vibration is severe. A top-heavy linear assembly amplifies this vibration. It can snap the yoke or destroy the pneumatic positioner. Quarter-turn assemblies keep the center of gravity tight against the pipe centerline. They survive high-vibration applications much longer.
Procurement teams often fixate on initial purchase orders. However, maintenance realities dictate the true lifecycle cost of an industrial asset.
Quarter-turn designs are significantly cheaper to procure. They use less raw cast material. The manufacturing process involves simpler machining. The price gap widens exponentially as pipe diameter increases. An 8-inch high-performance butterfly valve might cost a quarter of the price of an 8-inch linear control valve. If your process features low pressure drops and standard flow requirements, spending massive capital on linear hardware wastes plant resources.
Linear designs claw back their initial cost premium during maintenance turnarounds. They feature a unique "top-entry" design. Maintenance teams can unbolt the bonnet and pull the entire actuator and trim assembly out from above. They perform this work without removing the heavy body from welded pipework.
Quarter-turn designs usually lack top-entry access. If a seat ring fails, technicians must unbolt the flanged connections, spread the piping apart, and remove the entire unit. This takes hours of strenuous labor and halts production entirely.
Processes evolve over time. A plant might upgrade its boiler, changing the downstream steam flow rate. You can easily retrofit a single sliding-stem body with different trims. You simply swap the plug and cage to accommodate the new flow coefficient. This extends the asset's lifecycle indefinitely. If you use a ball or butterfly design, you usually have to discard the entire assembly and buy a new one when process conditions shift.
Evaluation Metric | Rotary Valves | Linear Globe Valves |
|---|---|---|
Initial Purchase Price | Low (Highly cost-effective in large sizes) | High (Requires extensive machining/casting) |
Installation Labor | Low (Lightweight, compact footprint) | High (Requires robust pipe support systems) |
Maintenance Downtime | High (Often requires removal from pipeline) | Low (Top-entry design allows fast in-line repair) |
Lifecycle Adaptability | Low (Fixed internal geometry) | High (Interchangeable trim kits) |
You cannot specify equipment based on habit. You need a rigorous shortlisting framework based on physics, economics, and maintenance logistics.
Follow these guidelines when evaluating your next process control loop:
Specify Rotary when:
Prioritizing rapid on/off actuation speed.
Handling large pipe diameters (over 6 inches) where cost scales aggressively.
Managing very low pressure drops across the valve.
Working within tight spatial constraints or high-vibration engine environments.
Handling dirty media or slurries. A sweeping 90-degree plug motion clears suspended solids away from the seat effectively.
Specify Globe when:
Managing extreme pressure drops from high-pressure steam or boiler feed water.
Requiring precise flow modulation and exact installed characteristic curves.
Facing severe cavitation or flashing risks.
Needing reliable micro-flow (ultra-low Cv) control.
Sourcing reliable hardware matters just as much as theoretical sizing. You should seek out a reputable Globe Valve manufacturer capable of proving their engineering data. Avoid vendors who only supply raw metal components. Look for partners who offer comprehensive flow sizing calculations. They should generate software reports showing exact installed gain and predicted noise levels. A trustworthy vendor will provide proprietary anti-cavitation trims and share transparent material testing reports. Partnering with deep engineering expertise ensures your specification stands up to brutal plant realities.
The choice between rotary and linear is rarely an apples-to-apples price comparison. It is an intricate engineering trade-off between fluid dynamics and physical plant constraints. Quarter-turn mechanisms excel in weight reduction, low initial cost, and robust emissions control. However, sliding-stem mechanisms dominate precision throttling, in-line maintenance, and extreme pressure drop management.
We encourage procurement and engineering teams to break down silos. Do not buy on initial price alone. Conduct thorough fluid sizing calculations. Verify the Liquid Pressure Recovery Factor (FL) and calculate the installed gain before releasing any purchase orders. By treating the valve as an active component of your system's total health, you will minimize unexpected plant shutdowns and maximize your operational profitability.
A: Yes, specific rotary designs can throttle effectively. Segmented V-port ball valves or eccentric rotary plug valves handle moderate flow modulation well. However, they remain limited to low-to-moderate pressure drop conditions compared to linear alternatives. They suffer from stiction, which restricts precise micro-adjustments.
A: The complex internal casting required to direct flow safely drives up costs. Manufacturers must use heavier body walls to withstand high pressure drops. Furthermore, the precision-machined internal trims, cages, and seats require more labor and specialized metallurgy than a simple quarter-turn disc.
A: Rotary valves are generally superior for dirty services. Eccentric rotary plugs or ball configurations use a sweeping 90-degree motion. This motion helps shear and clear particles from the seat during closure. Sliding-stem valves pull fluid vertically, making them prone to trapping debris and scoring the plug.
