What Is The Difference between A Globe Valve And A Gate Valve?

Specifying the wrong valve for an industrial piping system creates a cascading chain of failures. It does not just result in poor fluid flow. Engineers frequently grapple with premature seat wear, catastrophic water hammer, or seized valves during critical emergency shutoffs. Making a blind choice between valve configurations often leads to inflated maintenance budgets and severe safety hazards on the plant floor.

This guide strips away confusing marketing jargon. We will objectively compare gate and globe configurations to help you make informed specification choices. We will examine their internal geometry, evaluate flow control capabilities, and unpack their total cost of ownership (TCO). You will also learn how to navigate real-world maintenance risks. By understanding these mechanical differences, you can ensure your pipeline operates safely, efficiently, and predictably over its entire lifecycle.

Key Takeaways

• Primary Function: Gate valves are strictly for on/off isolation; globe valves are designed for precise flow throttling and regulation.

• Fluid Dynamics: Gate valves offer a straight-through flow with near-zero pressure drop. Globe valves feature a Z, Y, or angle-shaped flow path, resulting in high head loss but proportional flow control.

• Maintenance Reality: Gate valves are notorious for seizing up (failing closed) in hard water or infrequent-use scenarios, whereas globe valves offer tighter, longer-lasting seals under high-pressure conditions.

• The Slurry vs. Clean Media Divide: Gate valves handle slurries better due to a lack of internal deposit traps; globe valves excel in clean, corrosive, or high-temperature environments.

Core Mechanics: Internal Geometry and Fluid Path

Let us explore how internal geometry dictates valve behavior. The fundamental difference between these two components lies in the movement of the closure element relative to the media. A gate valve operates using a wedge moving at a right angle to the fluid flow. When you fully retract the stem, the valve body becomes completely hollow. This full-port design allows fluid to pass straight through without facing any physical obstruction.

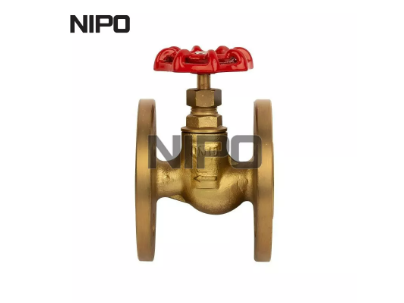

Conversely, a Globe Valve uses a plug or disk moving parallel to the fluid flow. This specific mechanical action forces the fluid to change direction multiple times. The media travels through a contoured, often Z-shaped internal cavity. This parallel movement completely alters how the component interacts with system pressure.

Flow directionality serves as another crucial operational distinction. Gate valves typically operate bidirectionally. You can install them in either direction without worrying about fluid orientation. Globe models act as highly directional, unidirectional components. You must install them aligning exactly with the flow arrow cast onto the exterior valve body. Installing them backward forces system pressure against the top of the internal plug. This mistake compromises the seal and makes opening the valve nearly impossible against high system pressure.

We must also examine seat erosion dynamics. The parallel operation of a globe design actively protects the internal seat from erosion during partial-open states. As the plug lifts, fluid flows smoothly and symmetrically around it. A gate valve relies on a perpendicular sliding wedge. If you leave it partially open, high-velocity fluid slams directly into the bottom edge of the wedge. This constant, turbulent bombardment rapidly erodes the sealing surface. Ultimately, this renders the unit useless for future isolation needs.

The Engineering Comparison: Performance & TCO Dimensions

Flow regulation stands as the ultimate dealbreaker between these two options. Throttling a gate valve causes severe high-velocity vibration inside the pipeline. This turbulent energy violently chatters the wedge against the metal seat. Over time, you will inevitably deal with a bent stem or a completely shattered wedge. In contrast, globe configurations handle fine increments of flow seamlessly. Their internal design allows them to throttle media proportionally without sustaining any mechanical damage.

However, engineering precision comes with a specific operational cost. Pressure drop represents the primary drawback of the globe design. It also acts as a massive driver of your Total Cost of Ownership (TCO). Because the fluid changes direction inside the valve body, it experiences high frictional head loss. In high-volume systems, this resistance requires larger, more expensive pumps. You will consume significantly more electrical energy over the long term compared to using a zero-restriction gate valve.

When evaluating sealing and leakage rates, we must look at the physical contact surfaces. A gate valve uses a surface-only mechanical seal. This metal-to-metal contact degrades over time through sliding friction and minor scoring. Globe designs utilize an internal plug-and-seat mechanism. This configuration provides a superior, long-lasting tight seal. System pressure often helps force the plug firmly onto the seat. For critical containment of hazardous fluids, this superior seal prevents dangerous environmental leaks.

Real-World Risks: Water Hammer, Vibration, and Seizing

Field-level maintenance teams understand theoretical performance often diverges from physical reality. When you place a valve into an active pipeline, it faces harsh, unpredictable environmental factors.

Consider the notorious "fail-closed" seizing threat. Maintenance operators frequently encounter gate valves left open for years without exercising. In hard water or scaling environments, minerals quickly calcify on the internal tracks. When an emergency strikes, the wedge seizes entirely. Operators cannot turn the handwheel, rendering the valve completely useless for emergency maintenance isolation.

We must also address water hammer mitigation. Hydraulic shock destroys pipe joints, blows out flange gaskets, and damages expensive inline instrumentation. Understanding how your equipment triggers these events remains critical for system longevity.

Here are the primary mechanisms driving these real-world risks:

1. Abrupt Closure Shocks: Gate valves and quarter-turn ball valves often close too quickly manually. Chopping the fluid stream abruptly sends a massive hydraulic shockwave backward through the piping system.

2. Vibrational Fatigue: Operating the wrong valve in a partially open state induces harmonic vibration. This shakes mounting brackets, loosens bolts, and compromises structural pipe welds.

3. Calcification Traps: The internal guides holding a gate wedge act as perfect traps for scale and sediment. This accelerates the seizing process and increases maintenance hours.

Globe configurations naturally buffer against these specific risks. Their multi-turn, gradual lift operation actively prevents abrupt closures. You simply cannot close them fast enough by hand to trigger severe water hammer. This inherent mechanical safety feature protects your broader pipeline infrastructure from catastrophic pressure spikes.

Application Matrix: Specifying by System Requirements

Choosing the right component requires matching the mechanical profile to your specific system demands. You must balance fluid type, control needs, and budget constraints.

When to specify a globe design: Choose this when systems require matching fluid output to dynamic variables. For example, engineers use them to precisely match boiler feedwater flow to the active evaporation rate. They also excel in cooling water circuits and chemical injection networks. Top-entry designs allow for easy inline maintenance when handling high-temperature or highly corrosive media.

When to specify a gate design: Specify these for bulk fluid distribution and massive municipal water mains. They also dominate applications moving thick slurries. Their straight-through path lacks complex internal cavities. This prevents heavy sediment from accumulating and blocking the flow path.

We must also note the modern sizing caveat. For pipe diameters under two inches, engineers and plumbers frequently bypass both options entirely. They prefer modern ball valves for small-bore isolation. Ball valves offer quick quarter-turn operation and excellent sealing capabilities. Industry standards generally reserve gate and globe choices for larger industrial pipelines where manual turning effort, mechanical durability, and precise throttling matter most.

How to Evaluate a Globe Valve Manufacturer for Enterprise Projects

Transitioning from technical evaluation to vendor shortlisting requires strict procurement standards. Enterprise piping projects demand rigorous quality assurance and transparent documentation from suppliers.

First, prioritize material traceability and destructive testing protocols. Selecting a reputable Globe Valve manufacturer ensures you receive full API and ASME compliance. You must demand Material Test Reports (MTRs) and verifiable hydro-testing documentation. These critical documents prove the cast metal can withstand your specified pressure ratings without risking catastrophic failure.

Next, look for deep customization capabilities. Top-tier manufacturers offer specialized top-entry designs. This specific feature allows technicians to perform inline repairability without removing the heavy valve body from the pipe network. Such maintenance-friendly designs drastically reduce long-term operational downtime and labor costs.

Finally, take actionable next steps. Gather your specific operational parameters. Submit your flow rates, maximum pressure requirements, and fluid media types directly to an application engineer. This specific data allows vendors to perform precise valve sizing. They can then recommend optimal alloy selections designed exclusively for your exact industrial environment.

Conclusion

• Choose a gate valve when maximum flow efficiency, zero pressure drop, and strict on/off isolation serve as your top priorities.

• Choose a globe valve when precision control, safe throttling, and tight internal shutoff justify a slightly higher energy pumping cost.

• Evaluate your local water quality and operational frequency to avoid specifying valves prone to seizing in critical isolation points.

• Always consult with an application engineer to run accurate pressure drop calculations before finalizing your procurement list.

FAQ

Q: Can I use a gate valve to regulate flow?

A: No. Operating a gate valve in a partially open state causes the internal fluid velocity to vibrate. This rapidly erodes the wedge and chatters the components against the seat, ultimately destroying the valve.

Q: Why is a globe valve typically unidirectional?

A: Because installing it backward forces the fluid pressure against the top of the internal plug. This makes it nearly impossible to open manually against high system pressure and severely compromises the internal seal.

Q: Which valve has a longer operational lifespan?

A: It depends heavily on usage. For frequent cycling and throttling, a globe valve lasts significantly longer. For rare, strictly on/off usage, a gate valve is sufficient, provided you exercise it occasionally to prevent seizing.
