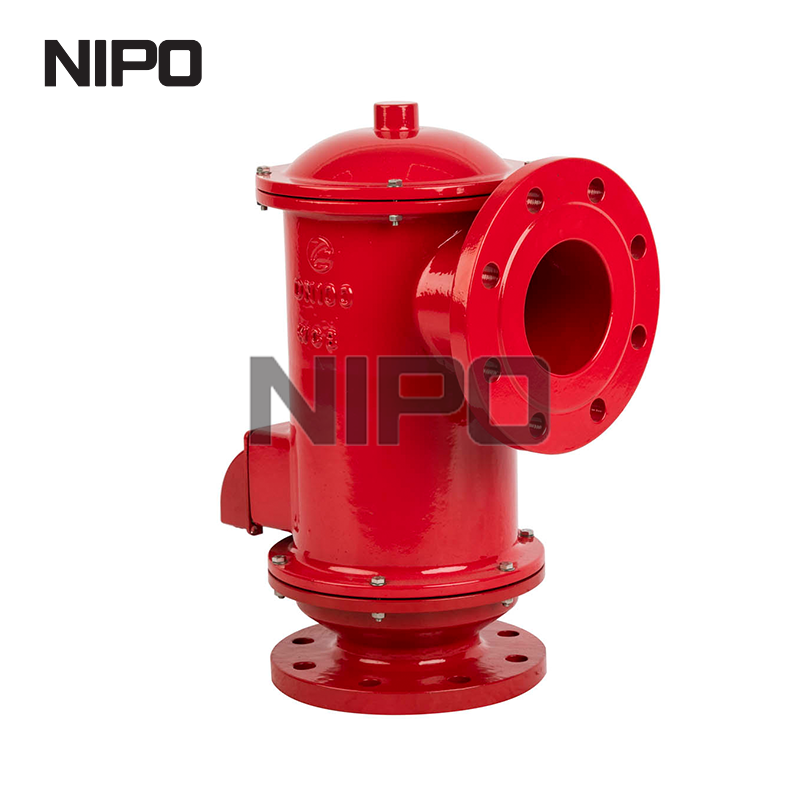

Storage tank integrity relies entirely on precise pressure management. An incorrectly sized breather valve guarantees either catastrophic structural failure through implosion or rupture, or chronic fugitive emissions that violate environmental regulations. Engineers and procurement teams frequently struggle to balance the complex variables of API 2000 standard calculations. Factors such as thermal effects, pump rates, and fluid volatility often lead to over-specified, expensive valves or under-sized, non-compliant safety risks.
Moving from theoretical fluid dynamics to practical procurement requires a standardized calculation framework. This guide breaks down the exact methodologies required to calculate venting requirements, evaluate specifications, and select the correct valve for specific operational parameters. You will learn how to navigate API 2000 compliance, avoid common sizing traps, and match hardware to your exact media properties.
API 2000 Compliance is Mandatory: Accurate sizing requires strict adherence to API Standard 2000 (or ISO 28300) to calculate both normal and emergency venting capacities.
Thermal and Operational Variables Dictate Capacity: Total inbreathing and outbreathing requirements are the sum of maximum liquid movement (pump-in/pump-out) and maximum thermal variations.
The Flame Arrestor Penalty: Adding an inline or end-of-line flame arrestor introduces a significant pressure drop that must be factored into the final sizing calculation to prevent starvation.
Over-sizing Carries Hidden Risks: Specifying a valve larger than the calculated requirement leads to "chattering," accelerated seat wear, and increased maintenance costs.
Media Properties Drive Hardware Selection: The specific gravity, flash point, and vapor pressure of the stored media directly influence the final valve configuration and material selection.
Defining the operational baseline for atmospheric and low-pressure storage tanks is the first step in system design. Success is measured by maintaining internal pressure within the tank's specific design limits under all operating conditions. A properly configured system prevents the tank roof from collapsing under vacuum and stops the shell from rupturing under excess pressure. Field experience shows that neglecting these baselines leads to immediate mechanical stress on the tank seams.
Distinguishing between routine operational breathing and emergency scenarios is mandatory. Normal venting handles liquid transfer and daily temperature changes. Emergency venting addresses catastrophic scenarios, such as external fire exposure, where rapid heat input causes massive vapor expansion. The hardware must handle both seamlessly. You cannot rely on a single operational vent to manage a full-scale pool fire scenario without dedicated emergency relief panels.

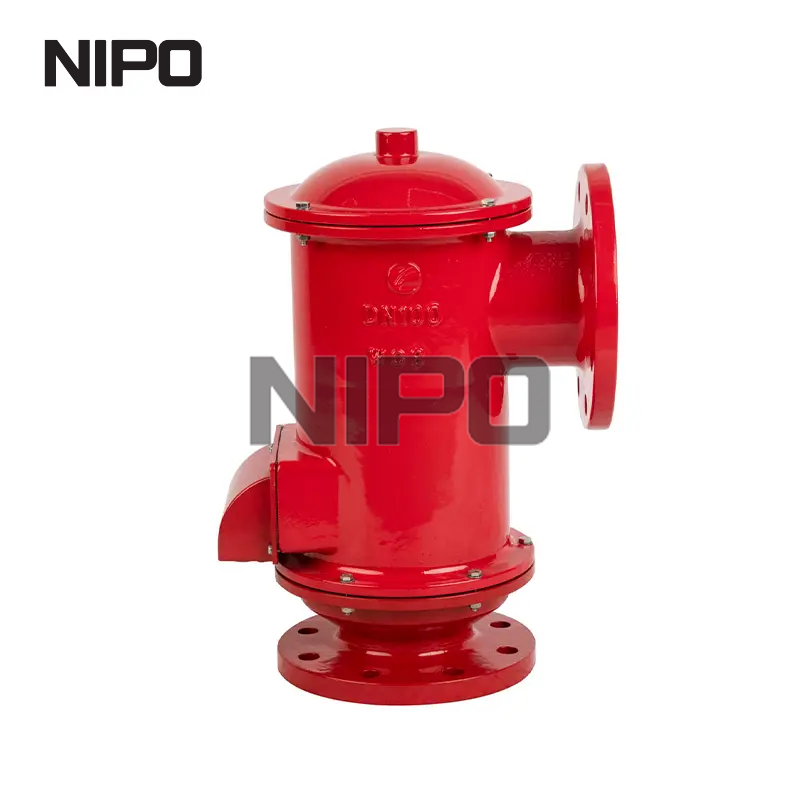

Understanding the technical distinction between conservation vents and standard pressure relief valves prevents misapplication. While standard relief devices handle high-pressure system upsets in process piping, a conservation vent manages ultra-low pressure and vacuum conditions simultaneously on storage vessels. They operate in inches of water column rather than pounds per square inch.
Selecting the operating mechanism depends on your margin between operating pressure and maximum allowable working pressure. You must evaluate the specific operational profile of your facility.
Weight-Loaded (Direct-Acting): These units are simple and robust. They rely on stacked weights to keep the pallet closed. However, they require a wider overpressure margin, often up to 100%, to reach full flow capacity. They work best on tanks with higher pressure ratings.
Pilot-Operated: These valves open fully near the set pressure. They are ideal for systems operating very close to the tank design pressure, minimizing product loss and maximizing operational efficiency. They use the tank's own pressure to maintain a tight seal until the exact set point is reached.
Identifying the exact data points required before initiating any sizing calculation prevents costly revisions later. You must gather comprehensive data across three primary dimensions: tank structure, fluid properties, and environmental conditions. Missing data here invalidates the entire API 2000 calculation. Guessing parameters leads directly to field failures.
The physical geometry of the vessel dictates the baseline volume of vapor space. You need the total tank volume, physical dimensions including diameter and height, and the roof type. Cone, dome, and flat roofs behave differently under pressure. Furthermore, you must establish the Maximum Allowable Working Pressure (MAWP) and Maximum Allowable Working Vacuum (MAWV). These figures set the absolute limits for your valve's set points. Exceeding these limits causes structural deformation.
The chemical characteristics of the stored product determine how much vapor is generated during operational changes. You must document the chemical compatibility, density, specific gravity, and molecular weight. Vapor pressure at maximum operating temperature, flash point, and boiling point are equally critical. Highly volatile liquids require significantly larger venting capacities than stable, heavy oils. For example, storing hexane requires a completely different flow profile than storing heavy fuel oil.
External conditions heavily influence thermal breathing. Site elevation impacts atmospheric pressure and requires density adjustments for airflow calculations. You must record ambient temperature extremes and maximum solar insolation rates for the geographic location. Tank insulation status—whether fully insulated, partially insulated, or uninsulated—and the insulation thermal conductivity factor alter heat transfer rates. Even the tank shell color and its solar absorption coefficient play a role in thermal heating calculations.
Essential Data Checklist for Sizing Calculations | ||
Category | Required Parameters | Impact on Sizing |
|---|---|---|
Structural | Volume, MAWP, MAWV, Roof Type | Determines set points and baseline vapor space. |
Fluid | Flash Point, Vapor Pressure, Density | Dictates volumetric flow multipliers for pump-in/out. |
Environmental | Elevation, Max Temp, Insulation Factor | Drives thermal inbreathing and outbreathing rates. |
Piping | Inlet/Outlet Length, Elbows | Calculates frictional pressure drop and flow reduction. |
Engineers must choose between API 2000 Annex A, the standard method for conventional tanks, and Annex B, the analytical method for refrigerated or low-pressure tanks. Following the standard framework ensures compliance and structural safety. Deviating from these formulas introduces massive liability.
Operational breathing accounts for the displacement of vapor during filling and emptying operations. Pump-in creates outbreathing, acting as a pressure relief scenario. You must convert maximum liquid fill rates into equivalent volumetric air flow. The API 2000 standard uses a conversion ratio of 1.01 to 1.07 volumes of air per volume of liquid input, depending heavily on the liquid's flash point. If you pump in 100 gallons per minute of a volatile liquid, you must vent more than 100 gallons of vapor space equivalent.
Pump-out creates inbreathing, requiring vacuum relief. You convert maximum liquid withdrawal rates into equivalent volumetric air inflow. API 2000 requires 1 unit of air volume per unit of liquid volume for non-volatile liquids. For highly volatile liquids, this requirement scales up to 2 units to account for rapid vapor space expansion and cooling. Pulling liquid out too fast without adequate vacuum relief will collapse a tank in seconds.
Thermal outbreathing is the volume of vapor expelled due to thermal expansion caused by ambient temperature increases and solar exposure. Conversely, thermal inbreathing is the volume of air required to prevent vacuum collapse caused by rapid cooling. A sudden rainstorm on a hot tank shell can cause rapid vapor condensation, demanding massive air intake. The calculation uses the total tank volume and the maximum temperature change rate.
You must convert all calculated flows to standard volumetric units. Standard Cubic Feet per Hour (SCFH) or Normal Cubic Meters per Hour are the industry standards. Mixing units during calculation is a frequent source of catastrophic sizing errors. Always verify your unit conversions before finalizing the specification sheet.
Fire exposure demands massive venting capacity to prevent vessel rupture. You first determine the wetted area, which is the heat input surface area based on liquid level height, typically calculated up to 30 feet above grade per API 2000. Next, you apply heat input equations to calculate the required emergency relief capacity based on heat transfer from surrounding pool fires and the fluid's heat of vaporization. This dictates the size of the emergency relief manhole cover.
The final step involves summing the liquid movement and thermal components. This provides the peak design flow rate for both positive pressure and vacuum scenarios. Emergency venting is typically handled by a separate emergency relief vent, but the standard breather valve for tank applications must handle the combined operational and thermal loads flawlessly. You add the pump-in rate to the thermal outbreathing rate to find the absolute maximum outbreathing requirement.
Adapting standard calculations for high-risk, highly volatile environments requires strict attention to detail. Sizing a breather balve for petrochemical storage tanks involves adjusting calculations for products with flash points below 100 degrees Fahrenheit or boiling points below 300 degrees Fahrenheit. These volatile chemicals require higher outbreathing capacity multipliers per API 2000 to handle rapid vaporization. Standard calculations will leave you undersized.
Integrating an inline or end-of-line flame arrestor upstream of the vent impacts sizing drastically. You must account for flow resistance and pressure drops through the flame arrestor elements. Uncalculated, this resistance can reduce valve capacity by up to 50%. Always calculate the system as a combined unit to prevent tank starvation during peak pump-out. The crimped metal ribbon inside the arrestor creates friction that slows vapor flow.
Backpressure from closed-vent systems and vapor recovery piping alters the sizing calculation. You need a pressure release valve with specific flow curves that account for downstream resistance. Furthermore, factor in nitrogen or fuel gas blanketing system failure modes. A fail-open regulator scenario dumps high-pressure gas into the tank, requiring massive outbreathing capacity to prevent rupture. The vent must handle the maximum flow rate of the failed regulator.
Identifying where calculation errors typically occur helps prevent them during the specification phase. Misinterpreting set pressure versus relieving pressure is a dangerous mistake. Set pressure is simply when the valve begins to open. Relieving pressure, or overpressure, is when the valve achieves its full required flow. Failing to provide enough overpressure margin means the valve will never reach the calculated capacity. You must specify both the set point and the allowable overpressure.
Ignoring inlet and outlet pressure drops is another critical failure point. Frictional losses in the piping between the tank nozzle and the valve reduce actual flow capacity and cause valve instability. Always calculate the pressure drop of the entire piping run. Long pipe runs with multiple elbows will choke the flow before it even reaches the valve.
The over-sizing trap is equally damaging. Rounding up excessively on calculation outputs leads to valve chattering. Rapid cycling causes premature mechanical failure, severe seat damage, and compromised vapor conservation. A valve must be sized to operate smoothly within its intended flow range. Bigger is not always better in low-pressure venting.
Finally, incorrect vapor density adjustments lead to under-sized relief paths. Sizing a vent assuming air equivalent flow when the actual vapor mixture is significantly heavier or lighter than air skews the entire calculation. Always adjust for the specific gravity of the vapor mixture. Heavy vapors flow slower than air and require larger orifice areas.
Translating the calculated flow requirements into a physical hardware specification requires careful evaluation of manufacturer data. Flow curve analysis is mandatory. You must read manufacturer flow capacity charts to ensure the selected valve meets the calculated SCFH at the specific tank design pressure and allowable overpressure. Do not accept single-point flow data; demand full performance curves. You need to see how the valve performs across the entire pressure range.
Balancing upfront costs with lifecycle longevity dictates material and trim selection. Select housing materials like Aluminum, Carbon Steel, Stainless Steel, or Hastelloy based on chemical compatibility. Seat and diaphragm materials, such as PTFE, FEP, or Nitrile, must resist degradation from the calculated media. Using standard nitrile seals on aggressive petrochemicals guarantees a leak within months.
Require verifiable flow test data and leak-rate certifications from the manufacturer. Standards like API 2521 validate the sizing calculations and ensure the hardware performs exactly as specified under real-world conditions. Ask for the test facility documentation to prove the flow curves are based on physical testing, not just theoretical models.
Compile all tank dimensions, media properties, and maximum pump rates into a centralized specification sheet before starting calculations.
Calculate normal and emergency venting requirements strictly following API 2000 guidelines, factoring in all piping and flame arrestor pressure drops.
Request full flow performance curves from manufacturers rather than single-point capacity estimates to verify overpressure performance.
Verify chemical compatibility for all housing and trim materials against the specific stored media to prevent premature seal failure.
A: An undersized valve cannot vent vapor or draw in air fast enough. This leads to excess internal pressure causing tank rupture, or excess vacuum causing the tank roof to collapse inward.
A: Yes. Flame arrestors introduce significant flow resistance. You must calculate the pressure drop across the arrestor and subtract it from your available overpressure to ensure the valve still meets capacity requirements.
A: An oversized vent will open, rapidly expel pressure, and slam shut repeatedly. This rapid cycling, known as chattering, destroys the valve seats, accelerates mechanical wear, and allows fugitive emissions to escape.
A: Set pressure is the exact point the valve pallet begins to lift off the seat. Relieving pressure includes the additional overpressure required to push the pallet fully open and achieve maximum flow capacity.
A: No. You must convert liquid pump rates into equivalent air volumetric flow rates using API 2000 multipliers, which account for the flash point and volatility of the specific liquid being stored.
