Backflow prevention ensures absolute safety in petrochemical refining. It strictly limits volatile emissions. It also guards expensive pumps from catastrophic damage. You see check valves everywhere across these industrial facilities. Selecting the exact right configuration demands careful balance. You must weigh physical spatial constraints against lifecycle costs. Strict regulatory compliance also dictates your final engineering decisions.

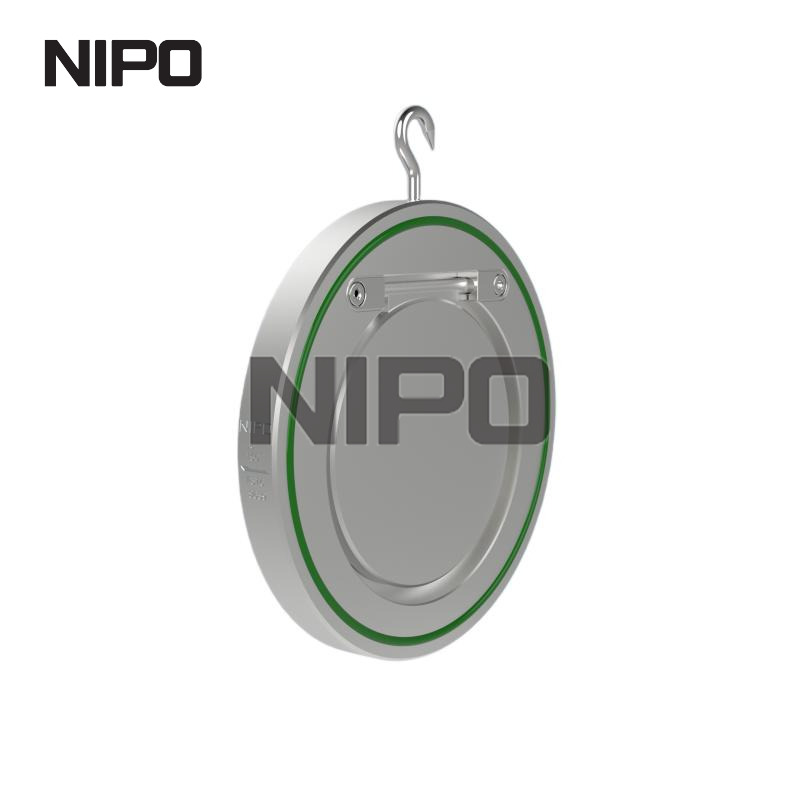

Engineers frequently specify the compact wafer style single disc check valve. It provides an economical, streamlined flow solution. It also guarantees a notably low pressure drop. However, misapplying it causes severe operational issues. Highly corrosive or pulsating environments quickly punish wrong choices. You risk dangerous fugitive emissions. You might trigger devastating water hammer events. Early mechanical failure remains a constant threat for poor installations.
This guide gives process engineers a clear framework. Procurement teams will also find this evidence-based approach highly useful. You will learn how to size and select these critical components. We cover reliable evaluation methods for demanding setups. We explore everything from compliance standards to mandatory installation rules.
Design Efficiency: Single disc check valves utilize a gravity-assisted, often retainerless design that minimizes potential leak paths—a critical advantage for fugitive emission compliance.
Strict Standardization: Petrochemical applications require adherence to API 594 (valve design), API 607 (fire testing), and ISO 15848 (fugitive emissions).
Lifecycle Over Capex: Energy losses from pressure drops over a typical 20-to-40-year lifecycle routinely exceed the initial procurement cost of the valve.
Installation Sensitivity: Proper functionality demands strict installation protocols, notably a minimum 5x pipe diameter straight run to prevent turbulent flow and valve chatter.
Petrochemical facilities operate within extremely tight piping envelopes. Plant managers constantly seek ways to minimize flanged connections. Fewer connections mean fewer potential VOC leak points. This operational context heavily influences every valve selection. You need solutions tailored to constrained spaces.
The single disc advantage becomes very clear here. These valves offer distinct structural benefits for modern refineries.
Retainerless Body Design: This structure eliminates through-holes entirely. The valve body has no drilled holes for securing hinge pins. You remove potential external leak paths completely. This design simplifies environmental compliance.
Low Head Loss: A gravity-assisted disc opens very easily. It operates smoothly at low differential pressures. This ensures minimal flow obstruction. Highly spring-loaded alternatives simply cannot match this hydraulic efficiency.
Compact Footprint: The standard wafer style fits effortlessly between existing flanges. It significantly reduces overall pipeline weight. You also decrease mechanical stress on critical piping supports.
You must also understand the transparent trade-offs. We do not recommend a single disc check valve for severe pulsating flows. Do not place them downstream of reciprocating air compressors. Continuous rapid cycling causes the internal disc to slam violently. It will wear out the hinge pin prematurely. You should specify heavily damped non-slam axial valves for those specific edge cases.
Strict global standards govern petrochemical valve applications. You cannot rely on basic industrial plumbing guidelines. Refineries demand rigorous safety and environmental verification. Every component must pass intense scrutiny.
The API 594 standard dictates fundamental design rules. It strictly governs face-to-face dimensions for check valves. API 594 requires specific internal backstops. These backstops prevent over-rotation of the valve disc. High-flow events will not damage the delicate hinge mechanism. The standard mandates robust cycle testing.
Leakage and emission control standards remain equally vital. ISO 15848 operates as the mandatory standard for micro-leakage. It governs all fugitive emission testing. Compliance ensures worker safety around VOCs and hazardous gases. API 598 defines acceptable internal seating leakage. It also sets maximum external shell leakage rates.
Safety in extreme conditions requires additional certifications. API 607 outlines specific fire test requirements. It applies directly to check valves utilizing soft seats. Sour gas environments introduce unique metallurgical challenges. Hydrogen sulfide gas easily causes sulfide stress cracking. NACE MR0175 and ISO 15156 mandate specific material compliance here. You often need specialized hinge pins. Inconel or Monel alloys perform best in these corrosive applications.
Industry Standard | Primary Focus Area | Key Engineering Requirement |
|---|---|---|
API 594 | Design & Dimensions | Strict face-to-face limits; internal disc backstops required. |
ISO 15848 | Fugitive Emissions | Mandatory micro-leakage testing for hazardous VOC gases. |
API 598 | Valve Inspection | Defines internal seating and external shell leakage rates. |
API 607 | Fire Safety | Burn and pressure testing for soft-seated valves. |
NACE MR0175 | Material Integrity | Sulfide stress cracking prevention in sour gas (H2S). |
You must evaluate system dynamics very carefully. Relying solely on pipe line size guarantees early failure. We recommend assessing three critical operational dimensions before purchasing.
Cracking Pressure vs. Flow Rate (Gain): The required differential pressure must align perfectly. It needs to match your system's low-flow conditions. If flow is too low, the valve hovers. Debris then accumulates in the partially open seat. Engineers call this destructive process "silting." It prevents tight shutoff later.
Lifecycle Energy Costs (LCC): Valve head loss directly increases pump energy consumption. You must evaluate the flow coefficient (Cv) value carefully. Use it to calculate total energy draw. This calculation spans the entire system lifespan. Energy optimization always outweighs the initial procurement cost.
Water Hammer Mitigation: Sudden fluid halts generate massive pressure surges. A fluid halt of just 1 ft/sec creates a theoretical 54 psi surge. The selected single disc check valve prevents this damage. It must close completely before reverse flow establishes. This rapid closure prevents destructive mechanical slamming.
Best practices suggest modeling varying flow rates. Do not assume your flow remains constant daily. Calculate pressure drops across minimum, normal, and maximum flow states. This ensures reliable operation across all processing phases.
Petrochemical fluids rapidly destroy weak materials. Your selection directly determines operational lifespan. You must match body, disc, and seat metallurgies precisely.
Carbon Steel (WCB) handles most standard processing environments well. It offers excellent tensile strength for everyday applications. Austenitic and Duplex Stainless Steels serve much harsher roles. They handle high-corrosion or cryogenic applications perfectly. These alloys resist pitting from aggressive chemical mixtures.
Sealing technologies fall into two main categories. You must choose between hard and soft seats.
Metal-to-Metal (Hard Seat) designs handle extreme physical conditions. They are absolutely essential for high-temperature steam. Abrasive media also require hard seating. Manufacturers often enhance them using a Stellite overlay. Stellite resists severe erosion from particulate matter. Hard seats offer longer mechanical life. However, they provide lower sealing tightness overall.
Soft seats provide superior micro-leakage control. They use resilient polymers for a near-perfect shutoff.
PTFE/Teflon: This material offers exceptional chemical resistance. It functions very well up to roughly 425°F. PTFE provides near zero-leakage performance. However, it remains entirely unsuitable for high-temperature steam.
Viton/FKM: Viton is ideal for high heat applications. It operates reliably up to approximately 400°F. It provides extreme chemical resistance against aggressive solvents. Hydrocarbon processing relies heavily on FKM seals.
Buna-N & EPDM: Engineers specify these materials for their strict limits. Buna-N completely lacks ozone resistance. EPDM handles water systems beautifully. However, EPDM is strictly incompatible with petroleum products. Petroleum degrades the polymer chain rapidly.
Even the finest valve fails if installed poorly. Physical installation realities dictate long-term success. You must actively avoid three primary implementation risks.
The 5x Pipe Diameter Rule remains non-negotiable. You must install the valve in a stable flow zone. Place it at least 5 pipe diameters downstream. Measure this distance from any turbulence-inducing components. Elbows, tees, or pump discharge nozzles create severe fluid turbulence. Failure to observe this rule causes continuous disc chatter. Chatter leads directly to rapid hinge pin wear. The pin eventually shears off completely.
Oversizing pitfalls trap many inexperienced process engineers. Specifying a valve based purely on line size is a massive error. You must size it based on actual flow conditions. Insufficient flow causes the heavy disc to hover. It oscillates endlessly in the weaker fluid stream. This constant movement drastically reduces the mechanical lifespan.
Orientation constraints dictate allowable mounting positions. Ensure the specific disc hinge design supports your layout. Check the intended installation vector carefully. Will you install it horizontally or vertically? Gravity-assisted single discs have strict functional limitations. They are strictly prohibited in vertical downflow configurations. Gravity will simply keep the valve open permanently.
A common mistake involves ignoring adjacent pipe schedules. Thick-walled adjoining pipes can restrict internal disc movement. Ensure the disc can swing fully open freely. It must never hit the inner pipe wall during operation.
Moving to the procurement stage requires engineering discipline. You need a verifiable selection methodology. Demand hard performance data from potential manufacturing partners.
Vendor due diligence goes far beyond checking brochures. Shortlist manufacturers who provide verified laboratory flow curves. Ask for comprehensive cracking pressure data sheets. Demand documented API 607 and ISO 15848 compliance certificates. Do not accept basic dimensional sheets as proof of quality. Reliable vendors gladly supply detailed engineering test results.
Energy cost modeling proves vital for long-term operational budgets. Request a thorough head loss calculation from the vendor. Ask for an energy calculation over a twenty-year span. Compare this operational energy cost against dual-disc alternatives. Contrast it against heavily damped nozzle-style check valves. This long-term energy view clarifies the best engineering choice.
You need one actionable step immediately. Cross-reference your current piping isometric drawings right now. Check them against the vendor's required straight-run clearances. Verify you actually have 5 pipe diameters available physically. Do this before finalizing the procurement specification.
The single disc check valve remains a highly efficient tool. It offers a reliable, low-leakage solution for complex petrochemical operations. You achieve optimal results by matching it carefully. It must align seamlessly with system flow dynamics and fluid properties.
Success in the decision stage relies on broader engineering thinking. You must move far beyond initial purchase prices. Always evaluate long-term lifecycle energy usage. Demand stringent API compliance from your selected suppliers. Respect physical installation realities above all else.
Verify straight-run pipe clearances before issuing purchase orders.
Calculate long-term energy loss to guide final vendor decisions.
Select internal seat materials based strictly on chemical compatibility.
Demand certified third-party test reports for fugitive emissions.
A: Yes, if specified correctly. While not as fast-acting as specialized spring-loaded silent check valves, a properly sized single disc valve with a short stroke can close rapidly as forward flow decelerates, mitigating the reverse flow that causes severe water hammer.
A: A retainerless design eliminates the drilled holes through the valve body that are typically used to secure the hinge pin. This removes potential external leak paths, making it far easier to comply with strict fugitive emission standards (ISO 15848).
A: Oversizing leads to insufficient flow velocity to keep the disc fully open. This causes the disc to repeatedly bounce against the seat (chatter), leading to premature mechanical failure, and allows debris to settle in the partially open valve (silting).
A: While both dictate face-to-face dimensions, API 594 is generally more rigorous for heavy industrial applications, mandating stricter structural limits, specific internal backstops to prevent over-rotation, and demanding cycle testing under maximum differential pressure.
