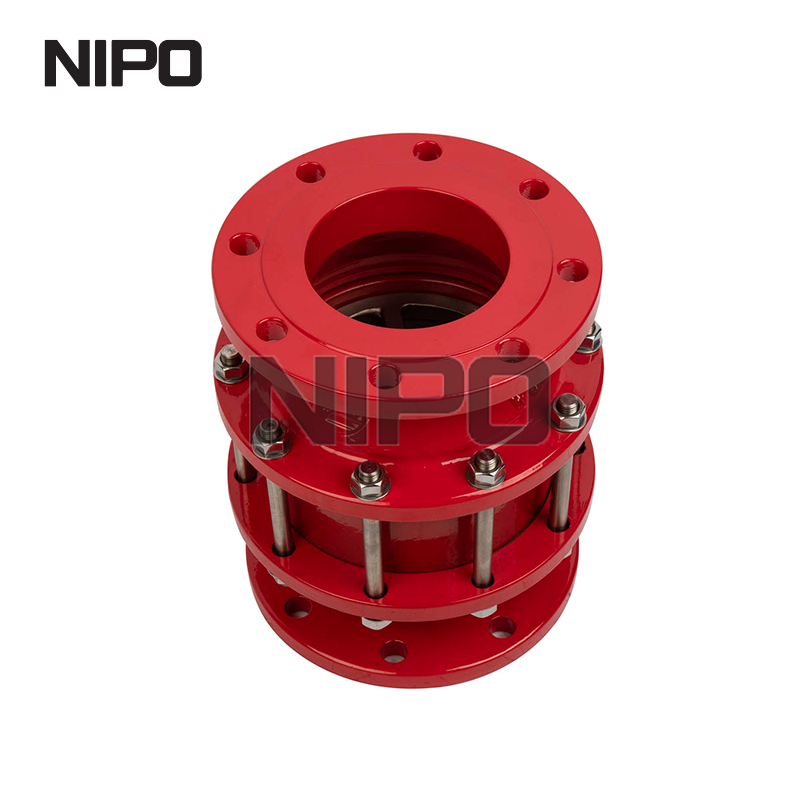

How Often Should Backfire Flame Arrestors Be Inspected?

A flame arrestor is a passive safety device designed to allow gas flow while preventing flame transmission. Its efficacy degrades rapidly when the internal matrix becomes fouled, corroded, or damaged. Operators frequently struggle to define exact inspection intervals. They must balance the risk of catastrophic deflagration or detonation against the operational downtime required for maintenance. Relying solely on generic manufacturer timelines often leads to compliance gaps, safety hazards, or premature equipment failure. Establishing a defensible, compliant inspection schedule requires evaluating baseline regulatory requirements, continuous process monitoring, and application-specific environmental factors. You must account for variables across marine backfire systems, localized flammable storage, and heavy industrial pipelines. The internal matrix relies on precise gap dimensions to quench a flame front. Even minor accumulation of dirt or rust alters these gaps, turning a safety device into a severe hazard. Implementing condition-based monitoring ensures the device functions exactly when needed.

• Baseline Marine Frequencies: Backfire flame arrestors on marine vessels require visual pre-departure checks and comprehensive annual inspections—ideally aligned with 12-month marine fire suppression system certifications—to maintain U.S. Coast Guard (USCG) compliance.

• Industrial Process Triggers: In industrial settings, inspection frequencies should be dictated by continuous pressure drop monitoring rather than calendar days alone, with mandatory physical inspections during scheduled plant turnarounds.

• Application-Specific Degradation: A flame arrestor for petroleum and petrochemical applications will experience different fouling rates (e.g., carbon buildup) compared to a flame arrestor for chemical industry use (e.g., polymerization or corrosive attack), necessitating tailored maintenance schedules.

• Localized Safety Equipment: Flame arrestors placed inside safety cans and flammable liquid storage cabinets require routine visual checks to ensure safe handling of localized solvents and fuels.

• Maintenance Risks: Improper cleaning of the flame cell (element) can alter the Maximum Experimental Safe Gap (MESG), rendering the device useless; damaged elements must be replaced with OEM-certified components, never repaired.

Baseline Inspection Frequencies for Backfire Flame Arrestors

Internal combustion engines in enclosed spaces accumulate unburned exhaust and flammable vapors. Marine environments present a highly volatile atmosphere where gasoline vapors easily pool in the bilge. Gasoline vapors are heavier than air, meaning they sink and collect in the lowest parts of the vessel. An approved back-fire flame control device prevents a backfire from igniting these collected vapors. Without this device, a simple engine misfire spits a flame directly through the carburetor into a vapor-rich environment, triggering a catastrophic vessel explosion.

Routine visual inspections must occur before every voyage or at least monthly. You need to verify the physical condition of the unit before starting the engine. A loose housing allows flames to bypass the quenching matrix entirely. Inspect the mounting hardware for signs of vibration-induced fatigue, which happens frequently in marine engine compartments.

1. Open the engine compartment and ventilate the area thoroughly before inspecting the hardware.

2. Check for surface-level accumulation of oil, dirt, or debris on the metal grid.

3. Verify that the housing is securely fastened to the carburetor with no bypass gaps.

4. Inspect the crankcase ventilation hose connection to ensure it remains tightly secured to the arrestor body.

5. Wipe down the exterior housing with a clean rag to spot any hairline cracks in the metal casting.

Comprehensive annual inspections require complete removal of the device from the engine block. Removal allows for deep cleaning and structural assessment under proper lighting. Alignment of this inspection with the mandatory 12-month qualified-technician certification for fixed marine fire suppression systems streamlines your maintenance schedules. Verification of the USCG approval stamp is mandatory during this check. Saltwater environments accelerate galvanic corrosion on dissimilar metals, so operators must look closely for pitting along the outer edges of the matrix.

Post-event inspections are non-negotiable. You must conduct an immediate inspection following any known engine backfire event to check for thermal damage or structural warping. A backfire subjects the internal elements to extreme thermal shock. The thin metal ribbons can warp instantly under this stress. You must pull the unit and inspect it under a bright light to confirm the gaps remain uniform and intact. If you see any light bleeding through irregular gaps, the unit is compromised.

Inspection Protocols for Industrial and Pipeline Systems

Transitioning from marine to heavy industry changes the scale and risk profile entirely. A single failure in a chemical plant pipeline carries massive consequences for personnel and surrounding infrastructure. Industrial systems handle continuous flow, varying pressures, and highly reactive media. You need rigorous, data-driven inspection frameworks to maintain safety without causing unnecessary plant shutdowns.

Pipeline maintenance cycles demand strict tracking and documentation. An initial commissioning inspection within the first 30 to 90 days of operation establishes a baseline for fouling rates. Routine quarterly visual and differential pressure checks keep operators informed of gradual degradation. Comprehensive annual teardowns typically occur every one to three years depending on the service environment. A pipeline flame arrestor handling clean gas like pure methane might stretch to three years between physical teardowns. Conversely, dirty gas applications like landfill gas or biogas require strict annual maintenance due to siloxanes and hydrogen sulfide buildup.

Petroleum applications present unique fouling challenges due to sticky residues and heavy hydrocarbons. Vapor recovery units (VRUs) and flare gas systems process high concentrations of these heavy compounds. Tank breathing pushes volatile organic compounds through the piping network. When temperatures drop at night, condensation occurs. Heavy hydrocarbons drop out of the vapor phase and coat the internal ribbons of the flame cell. A flame arrestor for petroleum and petrochemical applications often suffers from asphaltine dropout. These heavy compounds solidify inside the narrow channels. You must schedule inspections based on throughput volume and seasonal temperature changes rather than just calendar time.

Chemical processes introduce aggressive media that attack the equipment directly. Addressing aggressive process media that cause rapid polymerization or crystallization on the flame cell is a daily operational challenge. Shorter inspection intervals are required for highly reactive or corrosive chemical lines unless continuous monitoring proves otherwise. A flame arrestor for chemical industry applications might handle monomers like styrene or butadiene. These chemicals require inhibitors to prevent polymerization. If the inhibitor concentration drops, the monomer polymerizes and blocks the element solid within weeks. You cannot clean polymerized plastic out of a flame cell; you must replace the entire cassette.

Flammable liquid storage requires localized attention to prevent facility-wide hazards. Integrating localized storage into the facility inspection audit prevents dangerous oversight. Routine visual checks of safety cans and approved safety cabinets ensure screens are not punctured, rusted, or clogged by dried liquids. Workers often damage these screens when inserting rigid pour spouts. A punctured screen provides zero protection against a flash fire. You must train floor personnel to report damaged safety cans immediately rather than continuing to use them.

Evaluation Dimensions: Shifting from Calendar-Based to Condition-Based Inspection

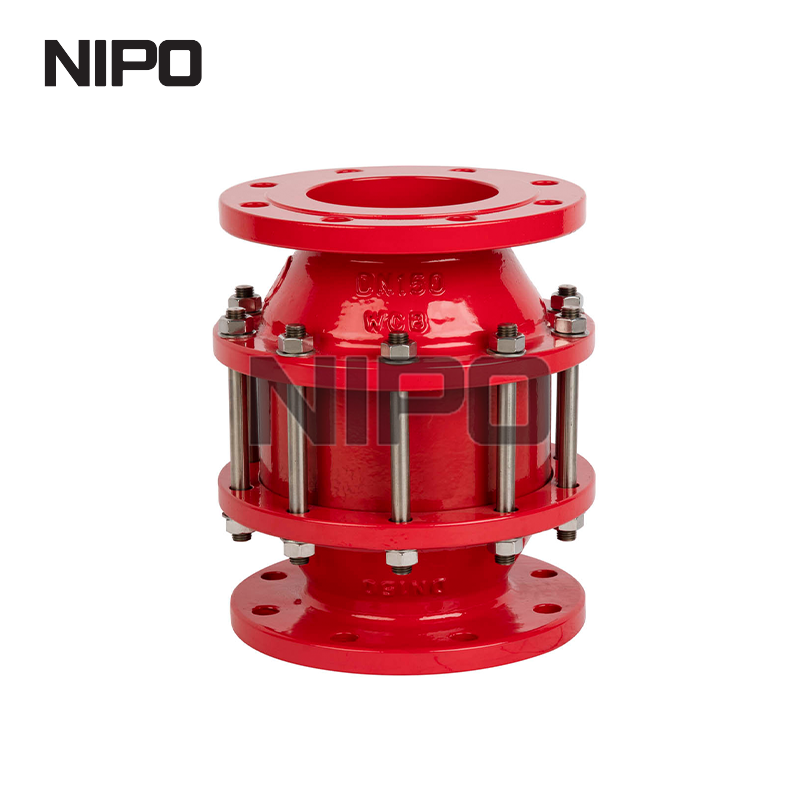

Modern arrestor designs facilitate easier inspections and reduce maintenance downtime. Evaluating eccentric versus concentric designs for liquid drainage determines how often manual draining is needed. Eccentric designs feature an offset housing that prevents liquid from pooling at the bottom of the pipe spool. This reduces corrosion risks and prevents liquid from blocking the gas flow path. Removable element assemblies, known as cassettes, allow for cell inspection without dismantling the entire pipe spool. This modular approach significantly reduces crane time and pipefitter labor during major facility turnarounds.

Differential pressure (dP) monitoring serves as the most reliable indicator of flame cell fouling. Establishing baseline pressure drops at commissioning sets the standard for the device's lifecycle. As particulate matter builds up inside the narrow crimped ribbons, the free area decreases. This forces the gas to accelerate through the remaining open channels, causing the pressure drop to increase exponentially. Relying on dP transmitters removes the guesswork from maintenance scheduling.

1. Install pressure taps directly upstream and downstream of the arrestor housing.

2. Connect a calibrated differential pressure transmitter to the taps.

3. Record the baseline pressure drop during normal operating flow rates immediately after commissioning.

4. Program the distributed control system (DCS) to trigger a low-level warning at a 15% increase in baseline dP.

5. Set a hard alarm threshold at a 25% to 30% increase to trigger an immediate physical inspection and cleaning cycle.

6. Log all dP trends weekly to predict when the next cleaning cycle will be required.

Environmental and operational variables heavily influence degradation rates across all industries. Ambient humidity, salt air in coastal facilities, and extreme temperature fluctuations accelerate corrosion rates. Condensation can freeze inside the matrix during winter operations, blocking flow completely and causing overpressure events upstream. Evaluating the impact of upstream filtration efficiency on arrestor lifespan helps optimize overall system design. Installing high-efficiency coalescing filters upstream removes liquid droplets and particulates before they reach the flame cell. Better upstream filtration directly translates to fewer physical inspections of the sensitive safety equipment.

Regulatory Standards and Compliance Frameworks

Navigating the specific codes that dictate inspection legality protects both the facility and its personnel. Ignorance of the code does not shield operators from fines or legal action following an incident. Regulatory bodies expect facilities to maintain comprehensive documentation proving these safety devices function as designed.

Marine standards are strictly enforced by maritime authorities during routine boardings. USCG regulations govern backfire flame control under 46 CFR. The American Boat and Yacht Council (ABYC) also publishes strict standards for engine compartment ventilation and backfire prevention. Inspectors look for the specific USCG approval stamp embossed on the metal housing. If the stamp is missing, illegible, or the device appears modified, the vessel fails inspection and cannot legally operate.

Industrial standards dictate design, installation, and maintenance protocols for chemical and petrochemical plants. Adhering to these standards forms the basis of any credible process safety management program. You must align your internal maintenance procedures with the specific requirements of the standard governing your process.

Audit trails prove compliance during regulatory reviews. You must log inspection dates, pre-cleaning and post-cleaning pressure drops, and photographic evidence of the cell condition. If an incident occurs, investigators from OSHA or the EPA will demand these logs immediately. Missing records imply negligence. Implementing a digital computerized maintenance management system (CMMS) ensures you track every interaction with these safety devices. The CMMS should automatically generate work orders based on the dP transmitter data or the calendar baseline, whichever comes first.

Implementation Risks and Mitigation: Cleaning vs. Replacement

The physical act of inspecting and cleaning carries inherent risks of damaging the equipment. Handling a heavy metal cassette requires care to avoid dropping or warping the internal structure during removal. A large detonation arrestor cassette can weigh several hundred pounds. Rigging it incorrectly can crush the outer edges of the flame cell, rendering it useless.

Assessing the flame cell requires understanding Maximum Experimental Safe Gap (MESG) integrity. The MESG is the maximum clearance between two parallel metal surfaces that prevents a flame from passing through. For hydrogen applications, this gap is incredibly small. Even microscopic warping of the crimped metal ribbons allows a flame front to pass. Identifying signs of thermal stress, pitting corrosion, or mechanical damage takes a trained eye. Discoloration on the metal often indicates a previous, unreported flash fire that compromised the metal's temper.

1. Remove the cassette carefully using proper lifting equipment to avoid striking the housing.

2. Place the cassette on a clean, flat, rubberized workbench.

3. Inspect the face of the matrix with a high-lumen flashlight, looking for any irregular gaps or bent ribbons.

4. Check for pitting corrosion along the outer perimeter where the matrix meets the casing.

5. Look for blue or purple discoloration on stainless steel, which indicates exposure to extreme heat from a flash fire.

Cleaning protocols carry specific risks and must be strictly controlled. Approved methods include ultrasonic cleaning baths, specific solvent soaks, and blowing out the channels with low-pressure compressed air. You must always blow the air in the opposite direction of the normal gas flow to push contaminants out the way they came in. High-risk actions to avoid include high-pressure power washing, mechanical scraping, or using unapproved acidic chemicals. Poking a wire through the gaps to clear a blockage destroys the quenching diameter instantly. A 3000 PSI pressure washer will flatten the thin metal ribbons, completely destroying the MESG.

Replacement criteria must be absolute to maintain safety ratings. Establishing a strict replace-do-not-repair policy for damaged elements eliminates subjective decision-making on the shop floor. If a technician drops a cassette, it goes in the scrap bin. You must never attempt to bend the ribbons back into shape. Ensuring replacement cells are OEM-certified maintains the original explosion-proof rating and compliance. Third-party knockoffs invalidate the safety certification and transfer liability directly to the operator. Always order replacement cassettes using the original serial number stamped on the housing to guarantee the correct gap size and material compatibility.

Conclusion

• Audit your current maintenance logs immediately to identify gaps in historical inspection data and missing USCG or API certifications.

• Install differential pressure transmitters on critical pipeline arrestors to transition from calendar-based maintenance to real-time condition monitoring.

• Train all maintenance personnel on the specific fragility of flame cell gaps to prevent accidental damage during extraction and cleaning.

• Establish a standardized replacement protocol requiring OEM-certified components for any unit showing thermal discoloration or mechanical warping.

• Integrate localized safety cans and storage cabinets into your routine monthly facility safety walk-throughs to catch punctured screens early.

FAQ

Q: How do you clean a backfire flame arrestor?

A: Remove the device and soak it in an approved solvent to dissolve grease and carbon. Use low-pressure compressed air to blow out debris from the inside out. Never use high-pressure washers or wire brushes, as these alter the critical gap size and ruin the device.

Q: What happens if a flame arrestor becomes clogged?

A: A clogged element restricts gas flow, leading to dangerous pressure buildup within the system. This causes process inefficiencies, triggers pressure relief valves, and in severe cases, leads to structural failure of the piping or storage tank.

Q: Can you repair a damaged flame arrestor element?

A: No. You must never attempt to repair a damaged element. Even microscopic alterations to the crimped metal ribbons destroy the Maximum Experimental Safe Gap (MESG). Always replace a damaged cell with an OEM-certified component.

Q: What is the difference between a deflagration and a detonation flame arrestor?

A: A deflagration arrestor stops subsonic flame fronts and is installed near the ignition source. A detonation arrestor withstands supersonic flame fronts and massive shockwaves, allowing it to be placed further away in long piping runs.

Q: How does pressure drop indicate a failing flame arrestor?

A: As particulate matter, polymers, or carbon build up within the narrow channels of the flame cell, gas flow is restricted. This restriction causes a measurable increase in differential pressure across the device, signaling the need for immediate cleaning.

Q: Are backfire flame arrestors required by law on all boats?

A: Yes, U.S. Coast Guard regulations require an approved backfire flame control device on all inboard gasoline engines installed in motorboats. This prevents unburned fuel vapors in the engine compartment from igniting during a backfire.

Q: Do flame arrestors inside safety cans and flammable storage cabinets require maintenance?

A: Yes. While often overlooked, the wire mesh screens inside safety cans must be visually inspected regularly. You must ensure they are not punctured, rusted, or clogged by dried liquids to maintain their protective function.
